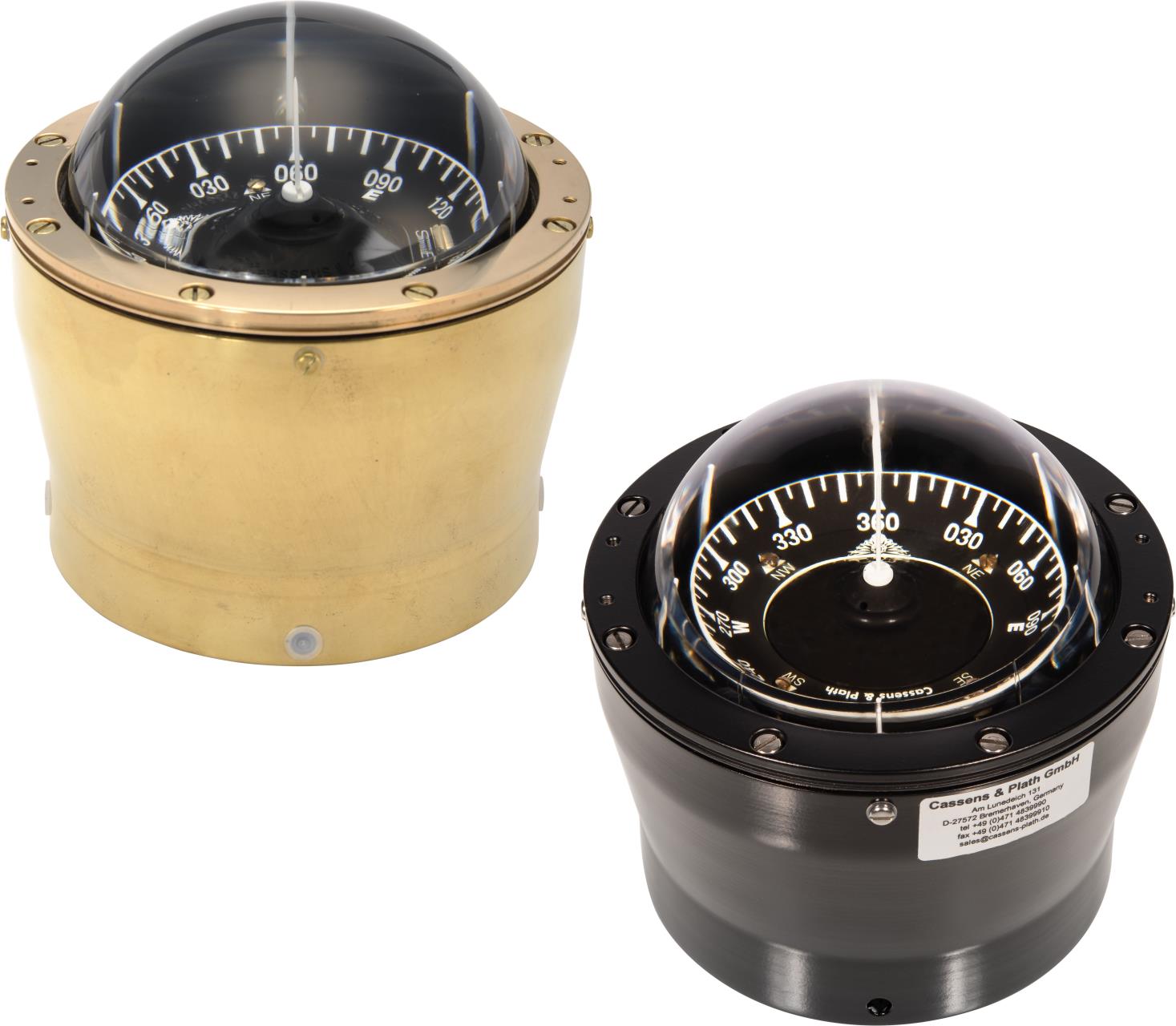

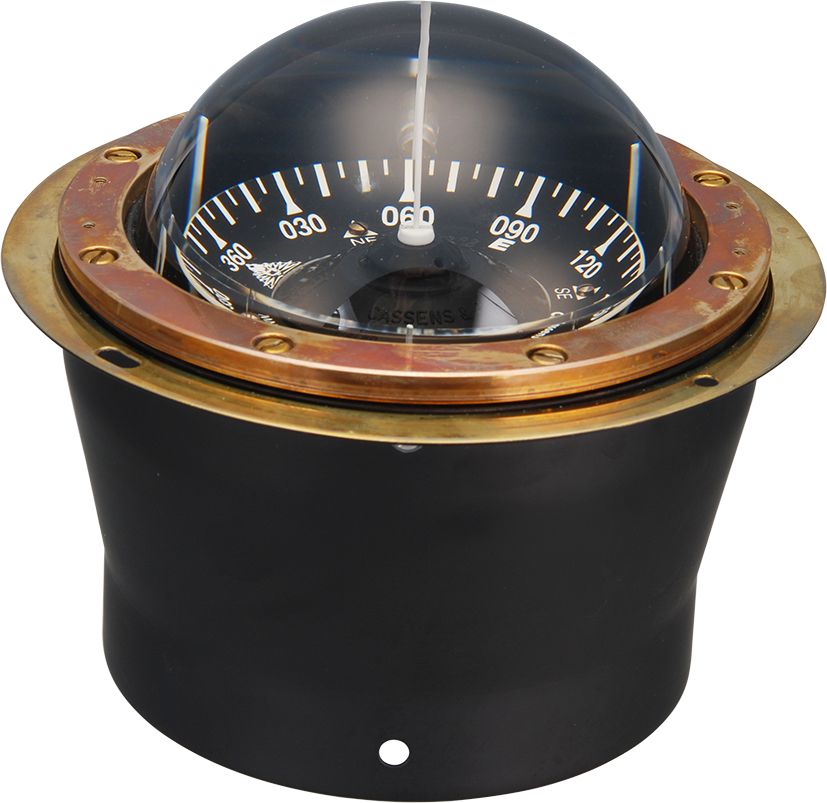

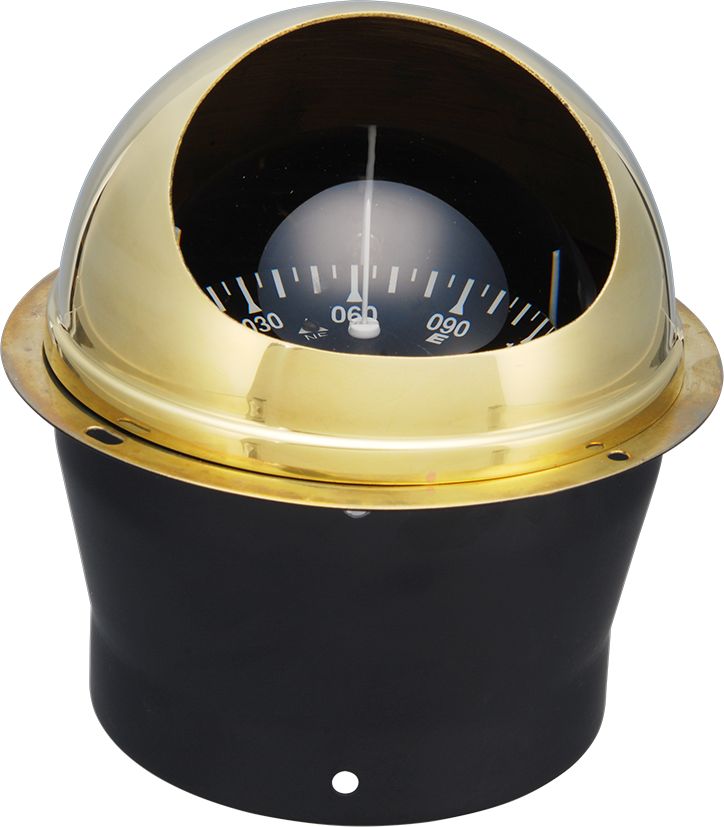

CASSENS & PLATH ZETA/1 built-in spherical compass with solid brass housing. Available in polished brass or black lacquered.Steering compass with high display accuracy (according to ISO standard).The clear rose pattern with 5° graduation enables fatigue-free reading over long periods of time, even at night.Technical features:Shock and vibration resistantBuilt-in shadow pin for deviation control (azimuth bearing)Glare-free 12 volt red light illuminationwith factory certificate

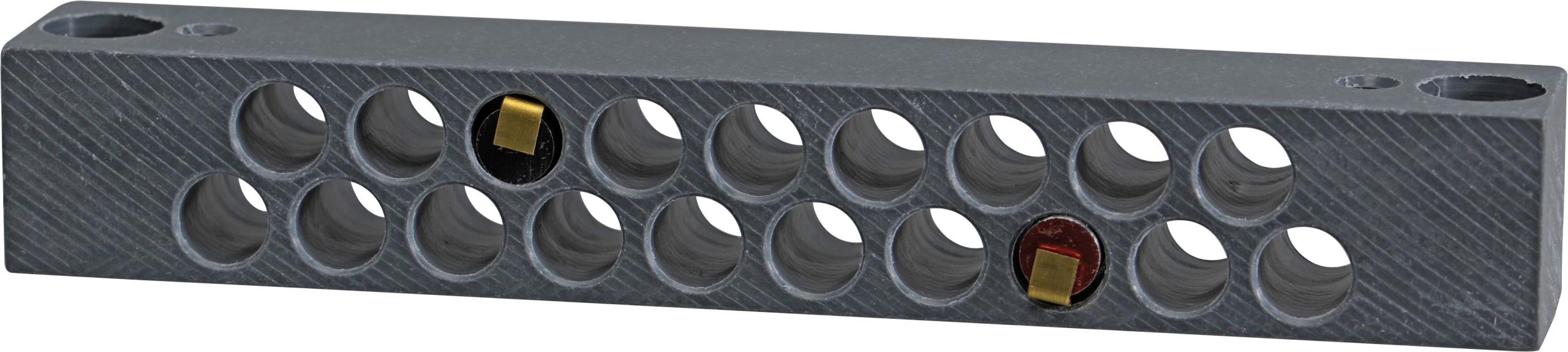

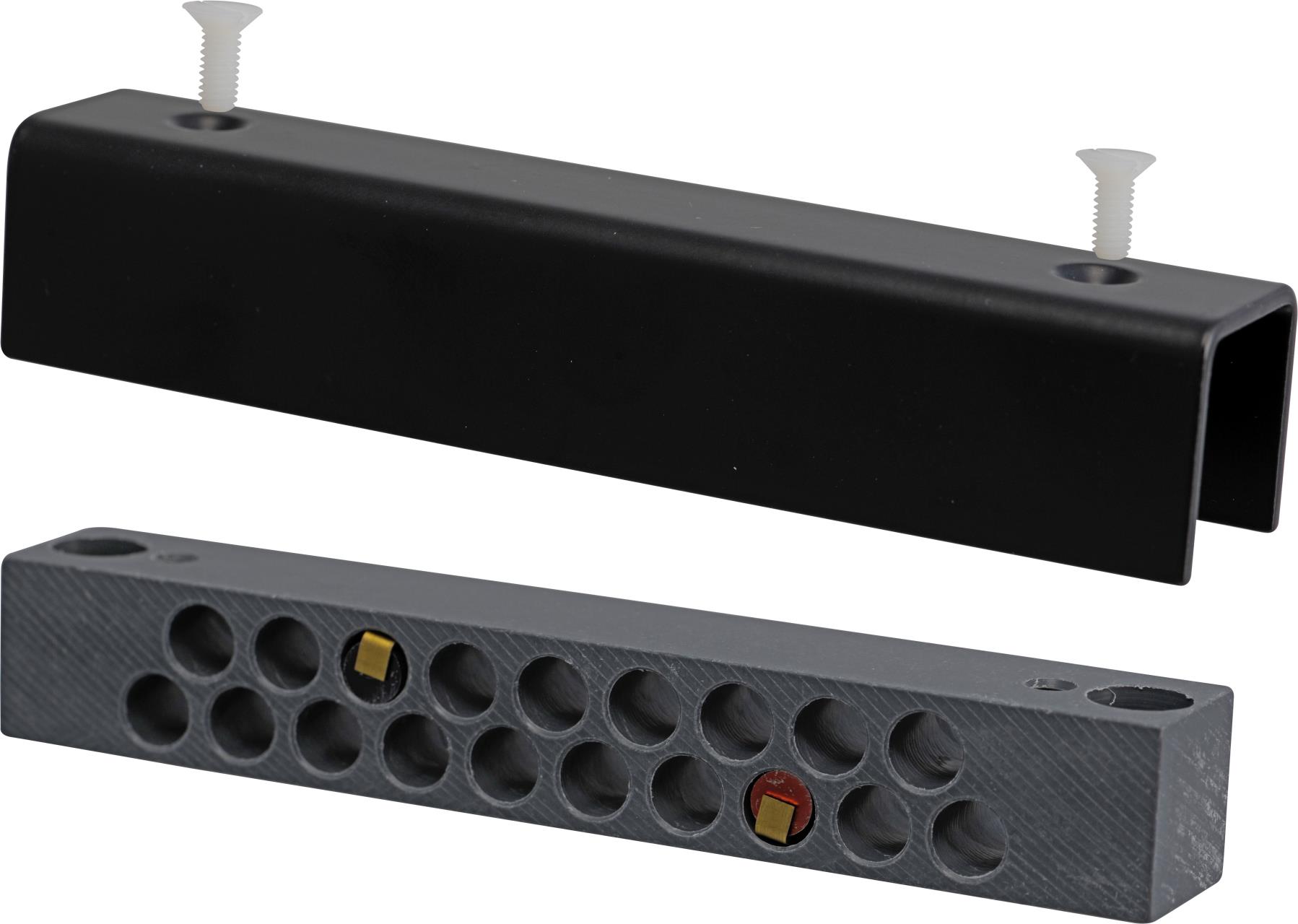

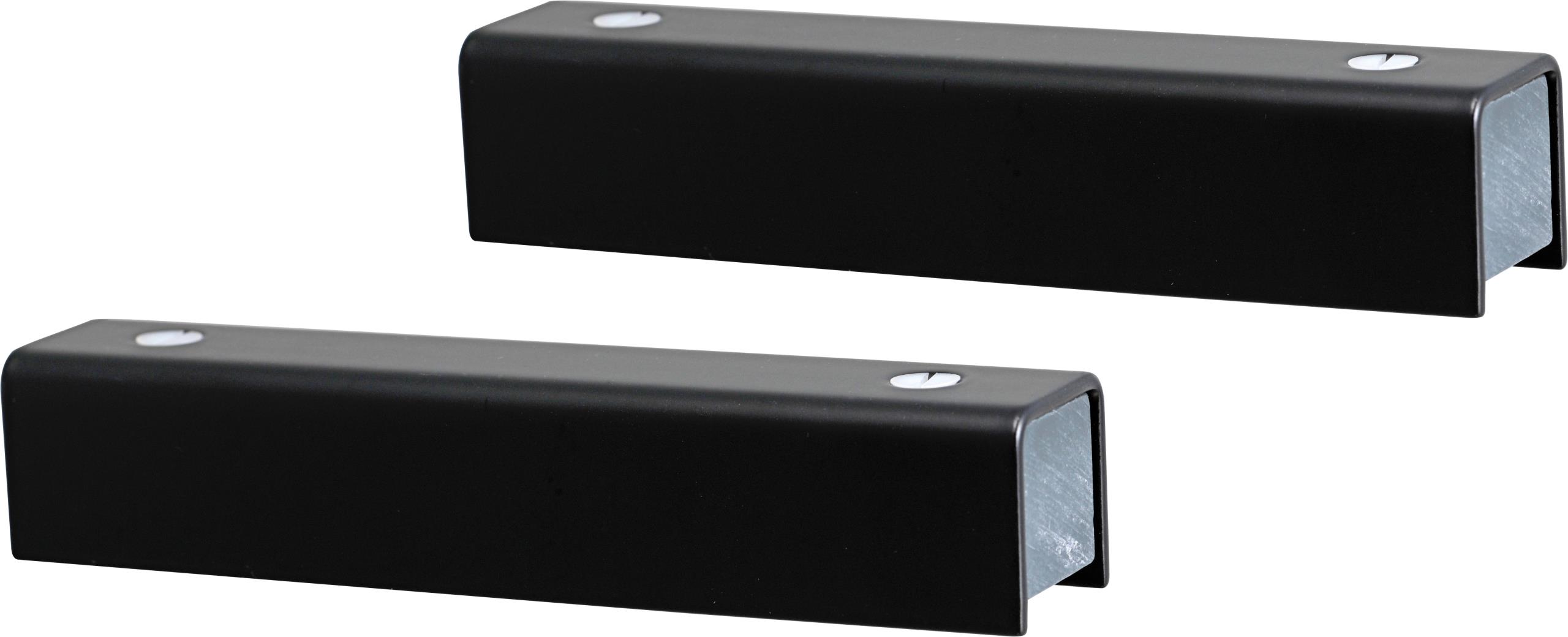

Plastic, matt black varnished case. Suited for every type of compass. Two magazines B and C to compensate with 2 magnets, that can be reversed calibrated. Usually the adjustment has to be performed by a professional. Shipment: 2 magazines 130 x 25 x 25 mm, detailed mounting instruction.

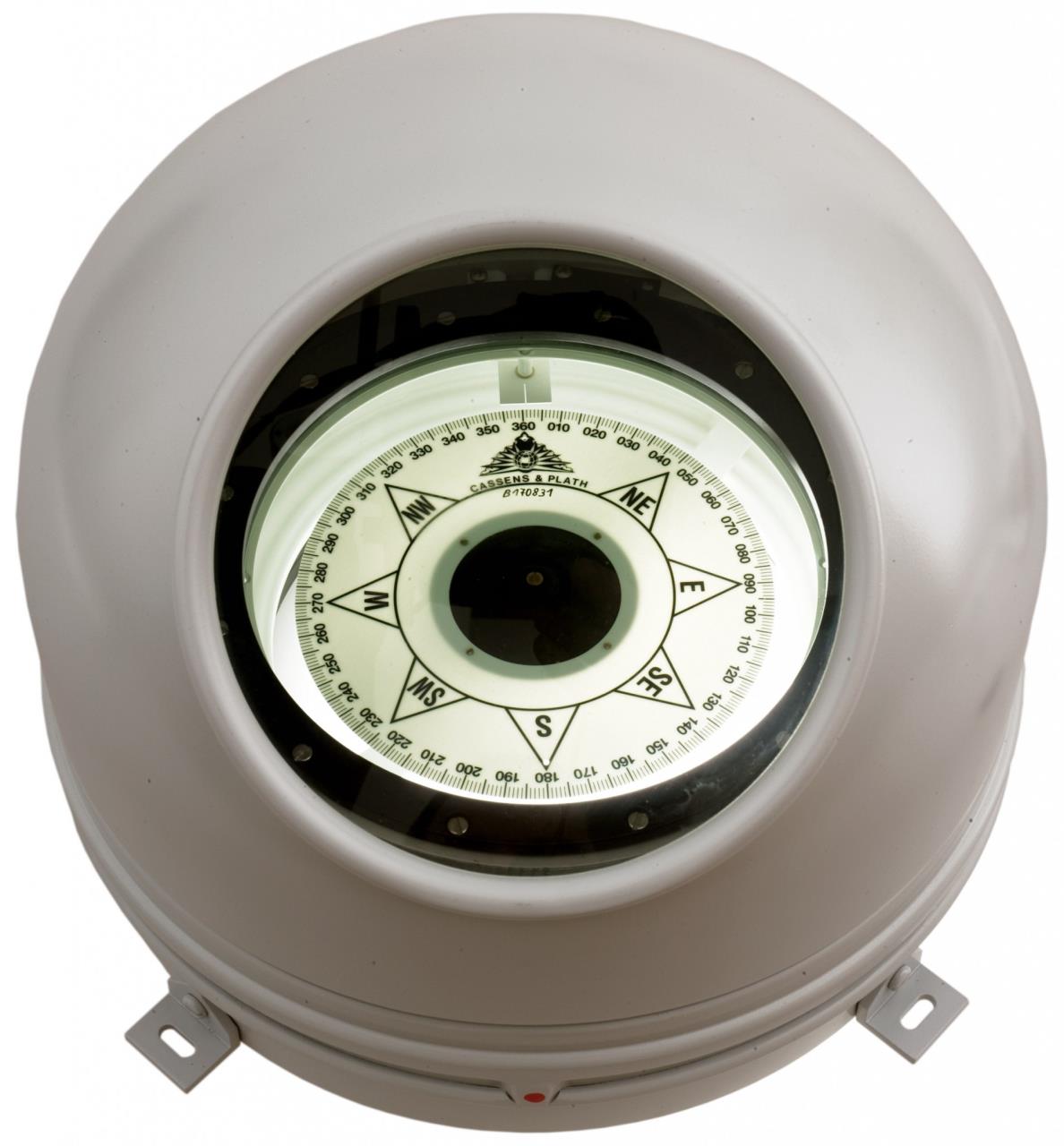

Full gimbal steering and bearing compass which is also well suited for larger steel yachts, as a compensation device (B+C, as well as K) is integrated on the base plate.Compensation, illumination, cover and bearing pin are included.SIGMA is available in black or white, the paint is seawater resistant.A typical installation location is the sliding hatch or the cabin deck, so that the reading can be taken from the helm station.Clear, easy to read scale with 5° graduation. When the cover is removed, the reading can be made from above on the horizontal rose. In backlit conditions, the cover is replaced and the compass can be read from the vertical rose.The SIGMA compass can be easily removed from its mounting within seconds and can then be safely stowed below deck. For this purpose an optional second base plate can be ordered which is fixed below deck. A second base plate can also be fitted to a second cruising stand so that the compass can be moved if required.The supplied shadow or bearing pin is used for astronomical deviation control.Each compass is individually tested and certified.Special Features:Integrated B+C, K compensationReadable from vertical rose when viewed upside down, from horizontal rose when viewed from aboveProfessional designFull cardanic bearingBlack rose with white 5° graduationTemperature stable -30°C to 60°C2 control lines for course control from different directionsLighting 12 or 24 VDCSeawater resistant painted brass housing with hoodA bearing attachment is available as an accessory to perform terrestrial as well as astronomical bearings.
Accessory for the SIGMA compass from CASSENS & PLATH: - additional base plate (without gimbals), to allow mounting in various places onboard, - 12V or 24V lighting.
Installable compass BETA/1 in a brass housing (painted black or white). Steering compass from the traditional manufacturer CASSENS & PLATH, with higher accuracy (pursuant to the ISO norms). The clear compass rose with 5° divisions allows the compass to be watched over long times without the viewer becoming tired, even at night. Shock and vibration proof. With a shadow indicator for controlling deviation (azimuth bearing), as well as an antiglare 12 volt red light. With certificate. Brass housing.
Compass model BETA/2 in brass housing with surface mount from the traditional manufacturer CASSENS & PLATH.high accuracy (pursuant to the ISO norms)the clear compass rose with 5° divisions allows the compass to be watched over long times without the viewerbecoming tired, even at nightshock and vibration proofshadow indicator for controlling deviation (azimuth bearing), as well as an antiglare 12 volt red lightfactory certificate includedavaiable in black or white
Installable compass in a brass housing (polished or black). Steering compass from the traditional manufacturer CASSENS & PLATH, with higher accuracy (pursuant to the ISO norms). The clear compass rose with 5° divisions allows the compass to be watched over long times without the watcher becoming tired, even at night. Shock and vibration proof. With a shadow indicator for controlling deviation (azimuth bearing), as well as an antiglare 12 volt red light. With certificate. Brass housing. Available painted black or polished. Fixed version DELTA for installation at the helm or in the deck.
CASSENS & PLATH steering compass model DELTA/2 in brass housing with surface mount.high display accuracy (conforms to ISO norms)the clear rose (diameter 130 mm) with 5° divisions allows effortless reading over long times and at nightshock- and vibration-proofwith shadow pin for deviation control (azimuth bearing) as well as a 12V night-safe red lightfactory certificationavailable polished or painted black
In brass housing. Steering compass series with high display accuracy (conforms to ISO norms). The clear rose (diameter 120 mm) with 5° divisions allows effortless reading over long times and at night. Shock- and vibration-proof. With shadow pin for deviation control (azimuth bearing) as well as a 12V night-safe red light. Certified. Available polished or painted black. Built-up version ZETA/2.

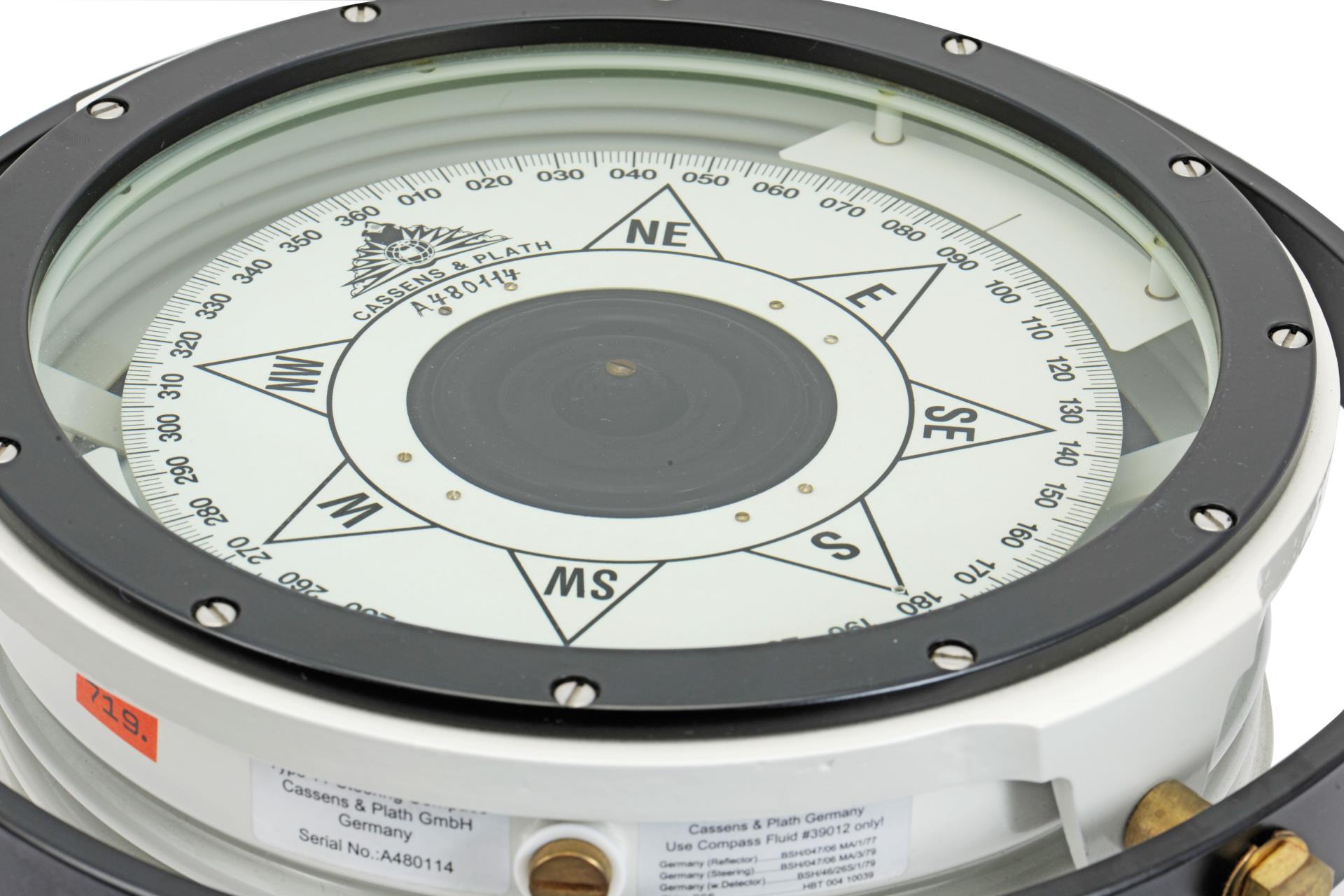

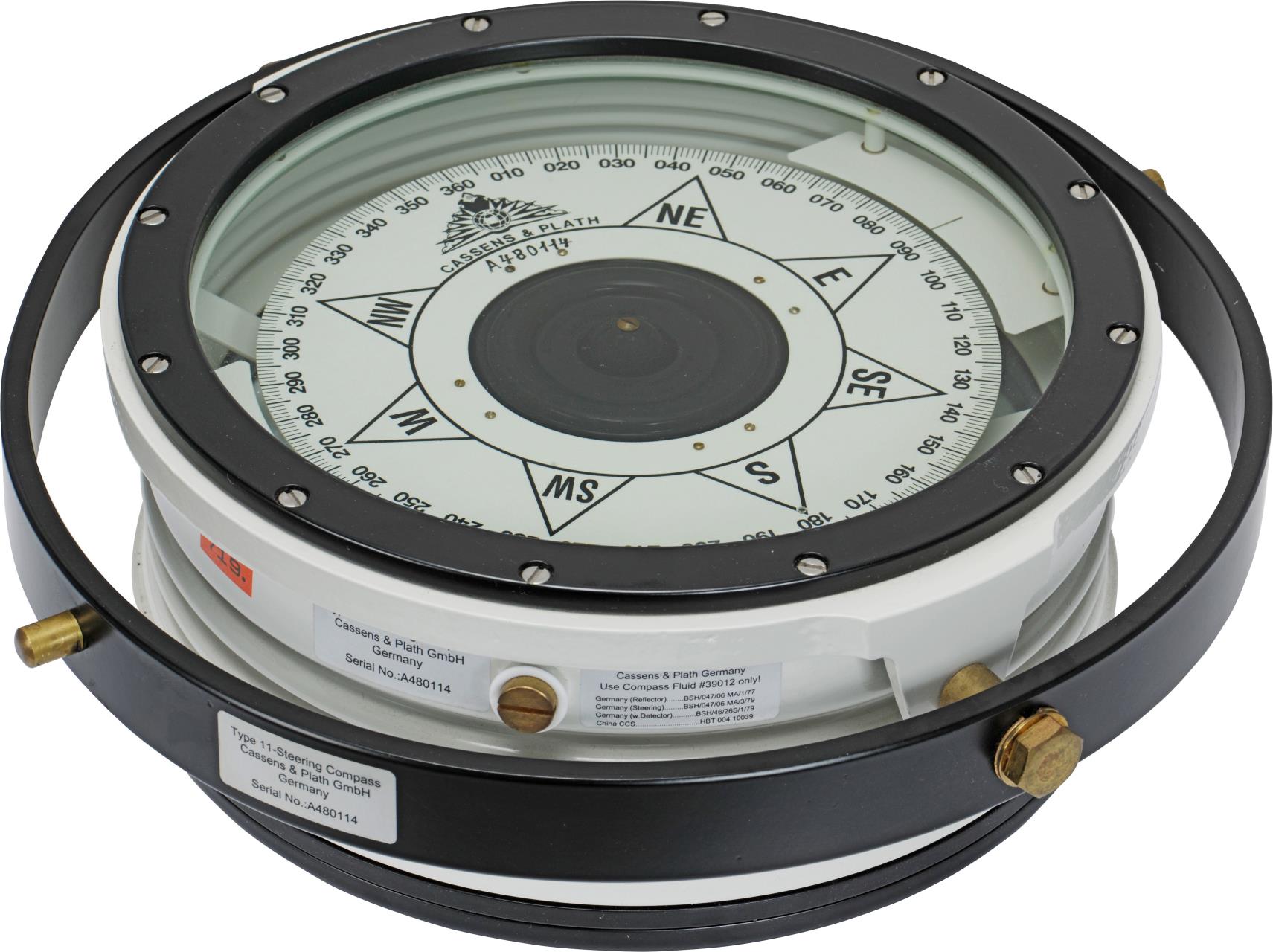

MED/SOLAS approval (see under "Downloads & Information" further down on this page).Professional compass CASSENS & PLATH TYPE/11. The heavy flat glass compass with cardanic suspension is available in two versions.The TYPE/11 bearing/reflection compass is fitted with a brass graduated ring. The brass centre piece, onto which the bearing sight (available as an extra) is attached, is also located on the upper cover glass. This makes it possible to take bearings.The bearing/reflection compass is suitable for use in reflection compass systems and a bearing stand.The TYPE/11 steering compass corresponds to the bearing/reflection compass, but without the bearing ring and centre piece. The outer ring is black here.The steering compass is used as a ceiling or table steering compass or is used in reflection attachments.Technical data:Card diameter 180 mm (7½")Card print north under north (north under south possible as a chargeable extra)1° graduation3-digit numbers every 10°8 cardinal/intercardinal points marked separately1 steering aperture ahead and 1 aft1° graduation on the graduated ring of the bearing compassLongitudinal ship suspension, with bronze bearing bushesVibration-resistant expansion diaphragmUnder "Accessories" you will find the following extras further down on this page:A pair of compass arms for use as a table compass (Article-No. 3730-102)Azimuth device (Article-No. 3730-105)Steering magnifier (Article-No. 3730-108)Lighting element 12 or 24 volt (Article-No. 3730-112 and -124)Surface-mounted dimmer for 24 volt lighting (Article-No. 3730-106)B+C corrector (Article-No. 3730-101)D corrector (Article-No. 3730-107)Wooden storage box (Article-No. 3730-109)

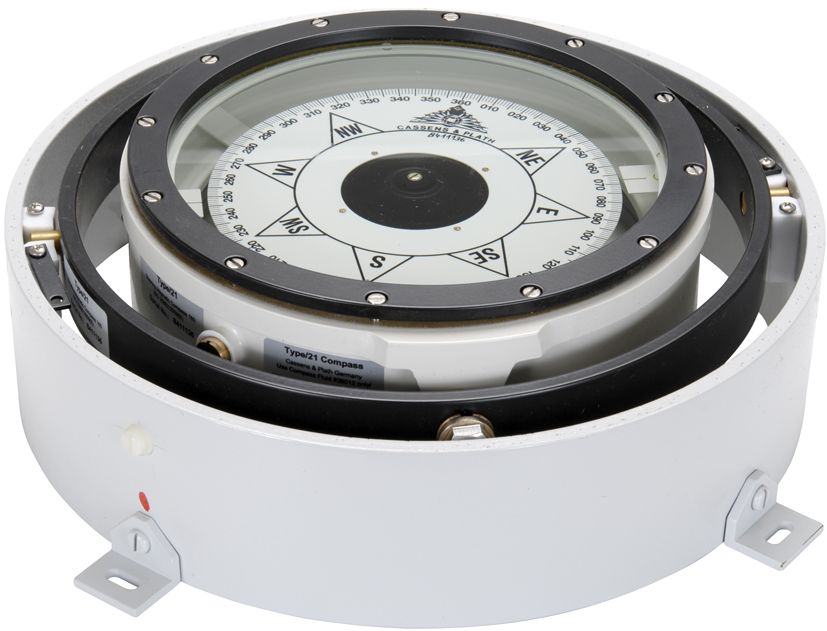

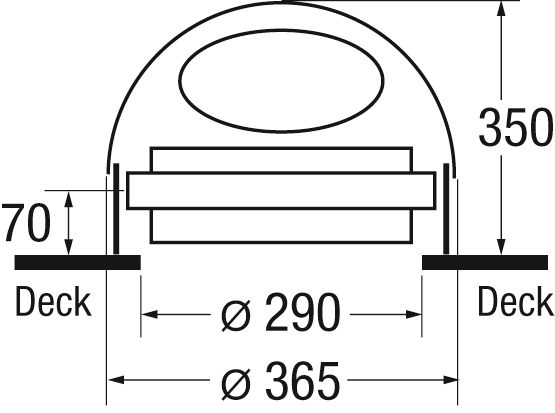

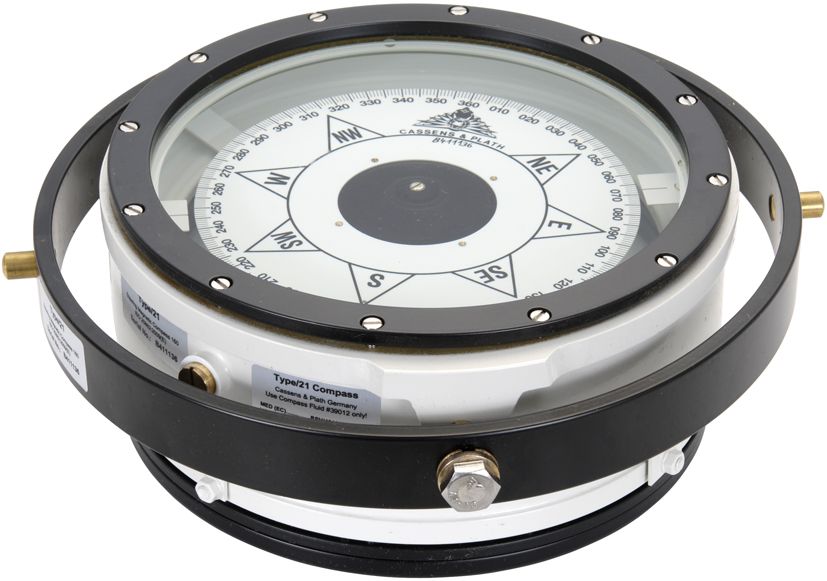

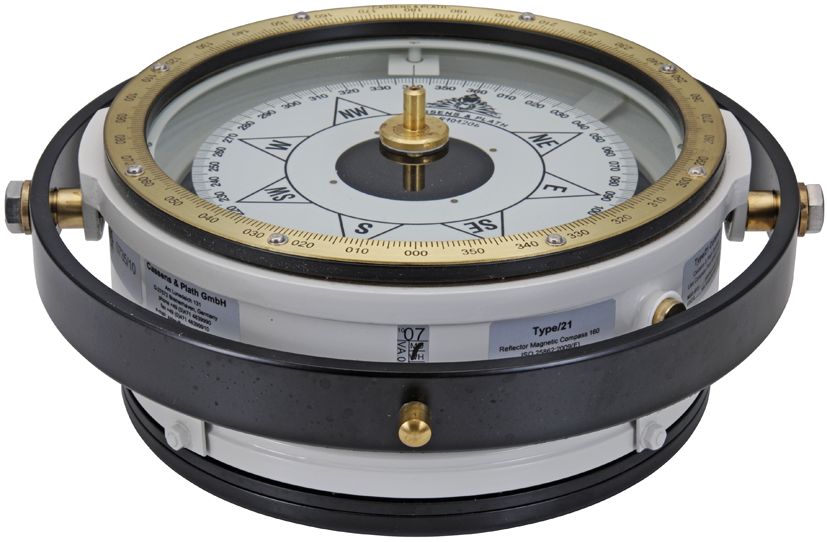

MED/SOLAS approval (see under "Downloads & Information" further down on this page).Professional compass CASSENS & PLATH TYPE/11. The heavy flat glass compass with cardanic suspension is available in two versions.The TYPE/21 bearing/reflection compass is fitted with a brass graduated ring. The brass centre piece, onto which the bearing sight (available as an extra) is attached, is also located on the upper cover glass. This makes it possible to take bearings.The bearing/reflection compass is suitable for use in reflection compass systems and a bearing stand.The TYPE/21 steering compass corresponds to the bearing/reflection compass, but without the bearing ring and centre piece. The outer ring is black here.The steering compass is used as a ceiling or table steering compass or is used in reflection attachments.The TYPE/21 steering compass in the desk binnacle with hood is gimballed in the desk binnacle/160 (suspended in the fore-and-aft direction). The desk binnacle is approved for coastal navigation. The brass hood with insight placed on this GRP lower ring.The 24V lighting element, which is also included in the scope of delivery, illuminates the rose chart from above.To allow the compass to be tilted freely, the deck must be provided with a corresponding cut-out.Technical data:Card diameter 160 mm (6½")Card print north under north (north under south possible as a chargeable extra)1° graduation3-digit numbers every 10°8 cardinal/intercardinal points marked separately1 steering aperture ahead and 1 aft1° graduation on the graduated ring of the bearing compassLongitudinal ship suspension, with bronze bearing bushesVibration-resistant expansion diaphragmUnder "Accessories" you will find the following extras further down on this page:A pair of compass arms for use as a table compass (Article-No. 3730-102)Azimuth device (Article-No. 3730-105)Steering magnifier (Article-No. 3730-108)Lighting element 12 or 24 volt (Article-No. 3730-112 and -124)Surface-mounted dimmer for 24 volt lighting (Article-No. 3730-106)B+C corrector (Article-No. 3730-101)D corrector (Article-No. 3730-107)Wooden storage box (Article-No. 3730-109)

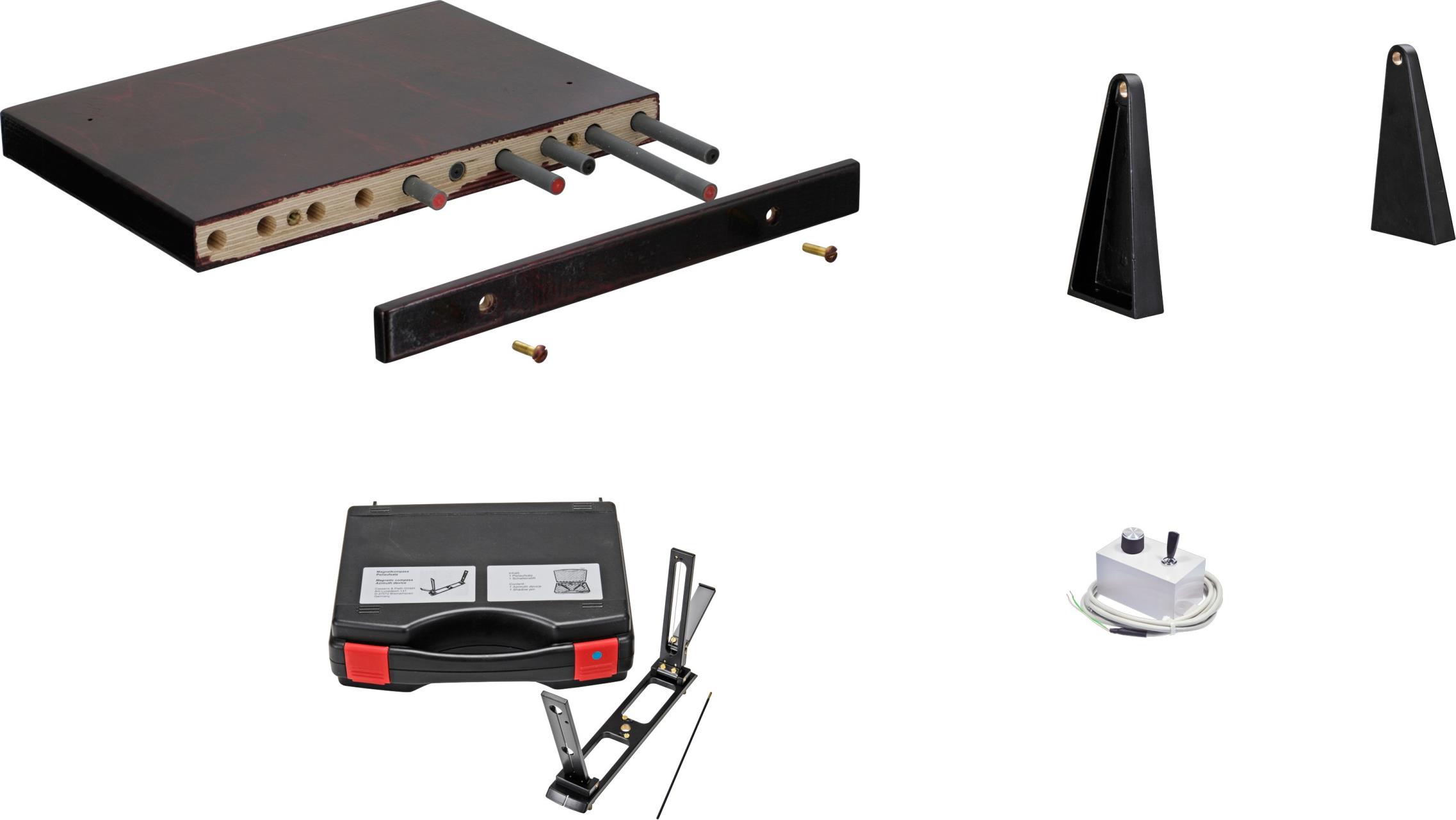

Available accessories: compass arm for table setup, 24 volt lighting dimmer, B+C compensation (made from three plywood magazines 300 x 215 x 30mm, each with 4 magnets), bearing equipment in a plastic case.

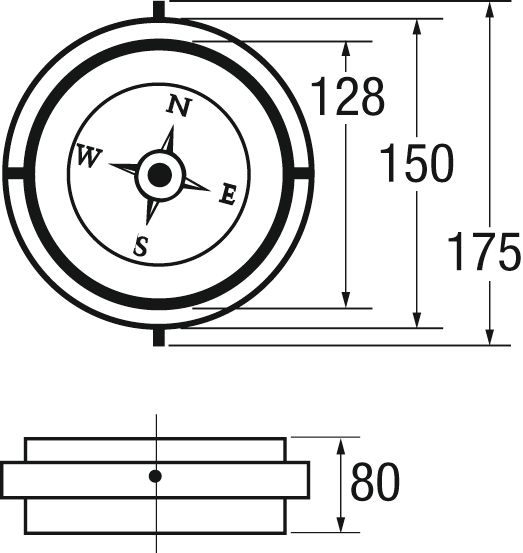

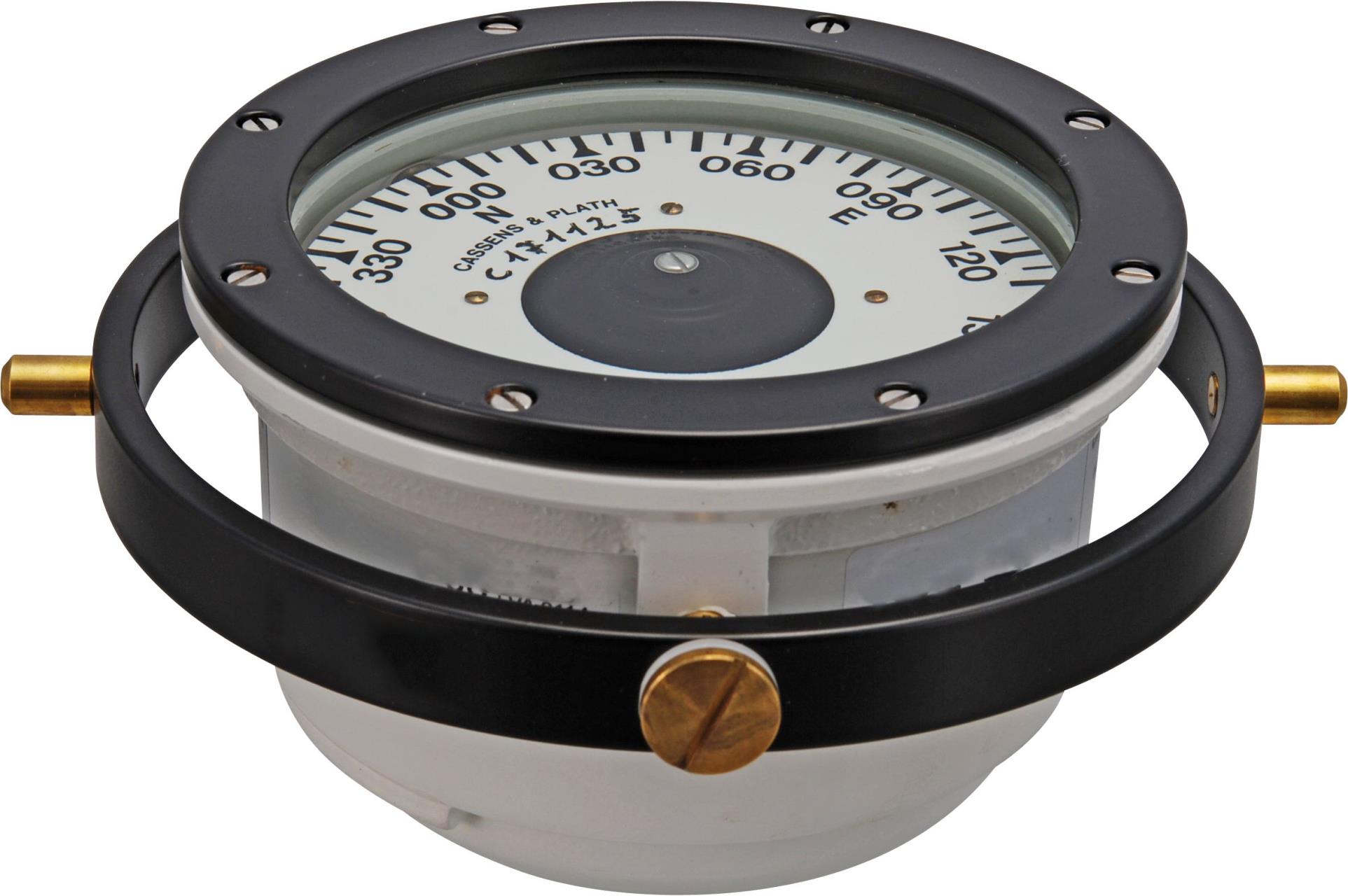

CASSENS & PLATH TYPE/51 - the flat glass compass with full cardanic suspension is a traditional lifeboat compass. It complies with ISO 25862.Made of brass, the housing is stove-enamelled grey, the ring and gimbal are black.The compass has a traditional compass card with a diameter of 100 mm and 5° graduation.A wooden storage box with sliding lid (Article-No. 3740-010) and a brass compass house with petroleum lighting (one-piece, Article-No. 3740-011 or two-piece -012) can be found further down on this page under "Accessories".

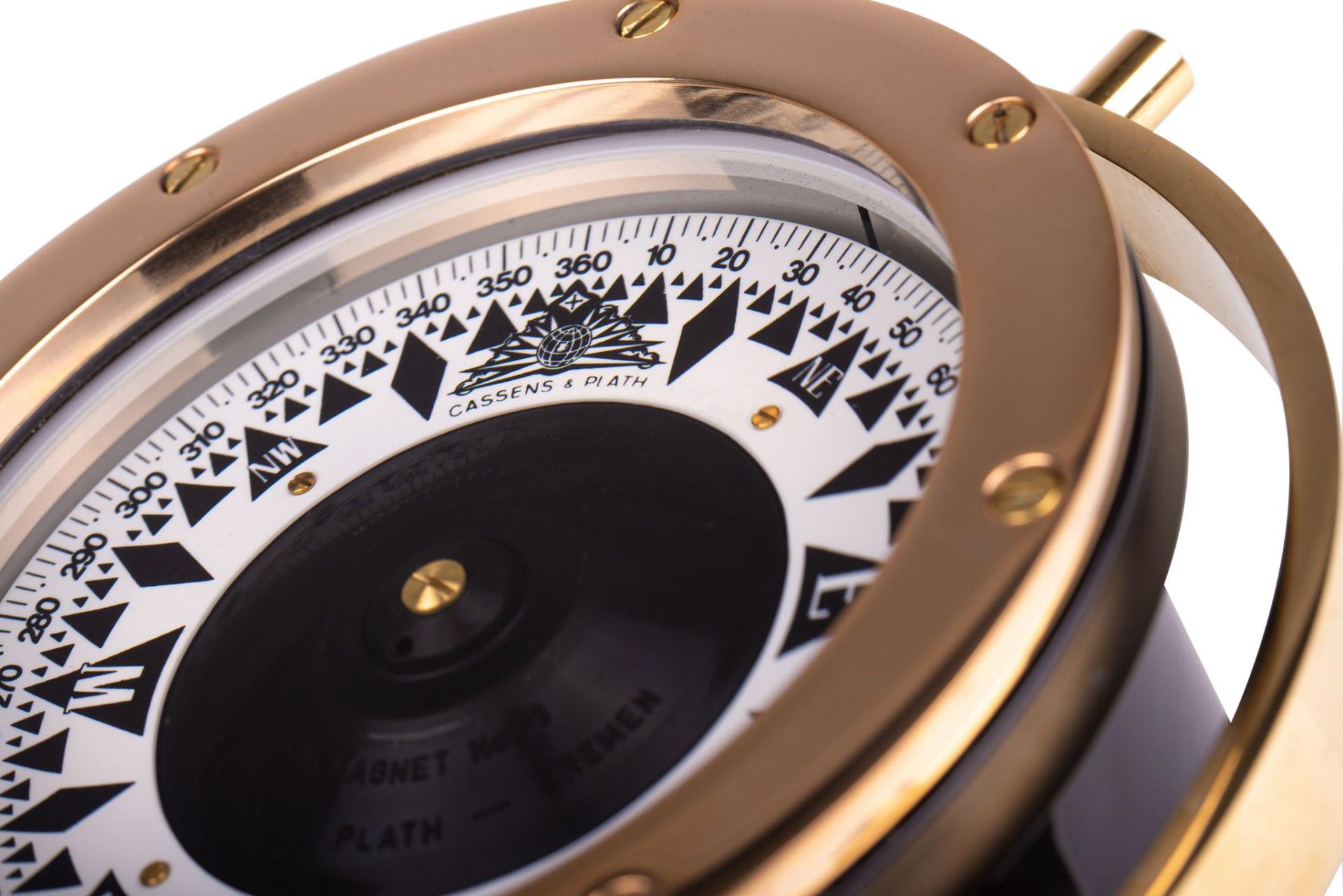

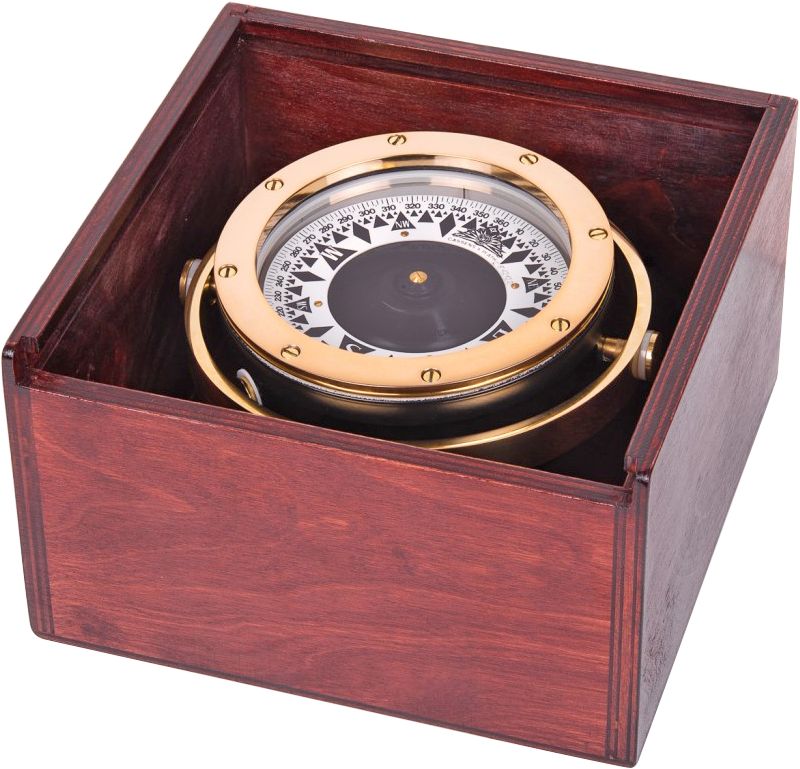

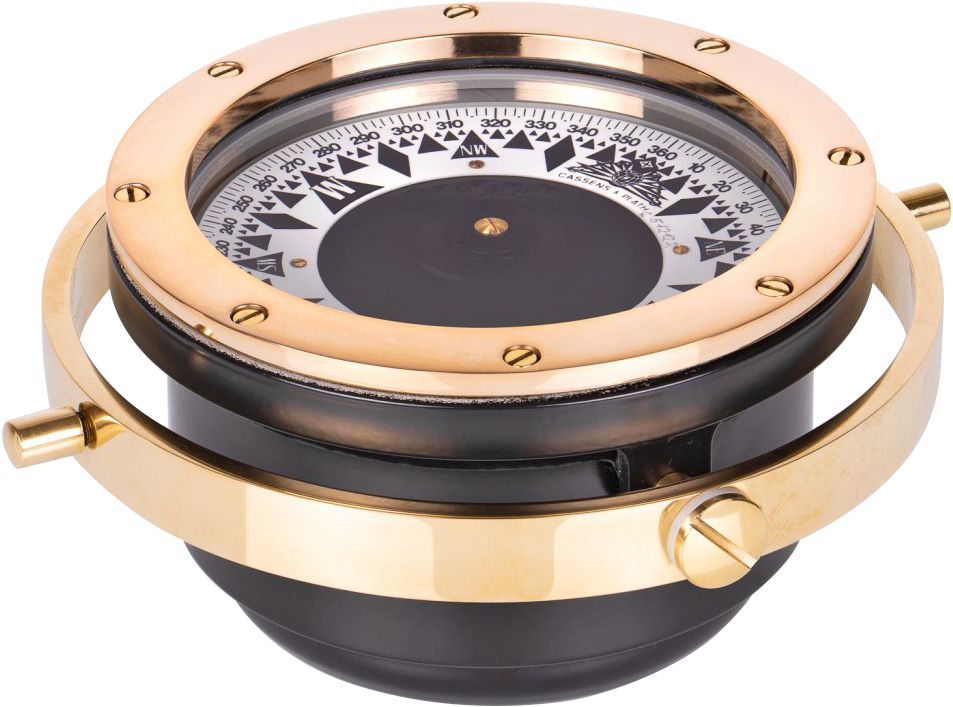

CASSENS & PLATH TYPE/51 - the flat glass compass made of brass with full cardanic suspension is a traditional lifeboat compass. It complies with ISO 25862.Made of brass, the housing is stove-enamelled black, the ring and gimbal are made of polished brass.The compass has a traditional compass card with a diameter of 100 mm and international 2° graduations.It is supplied in a wooden storage case with a sliding lid.This traditional brass lifeboat compass in a wooden box is also ideal as an elegant gift.

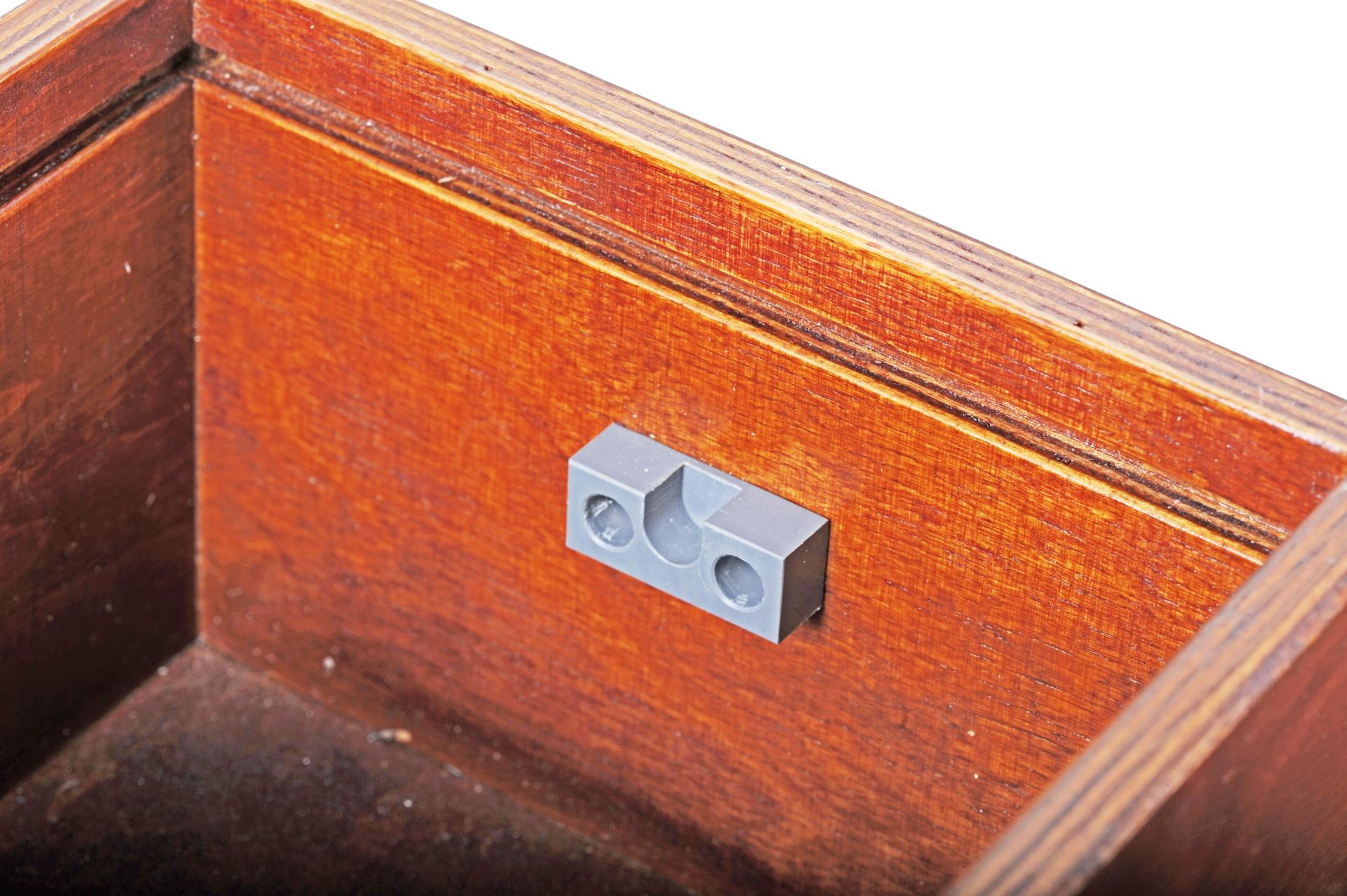

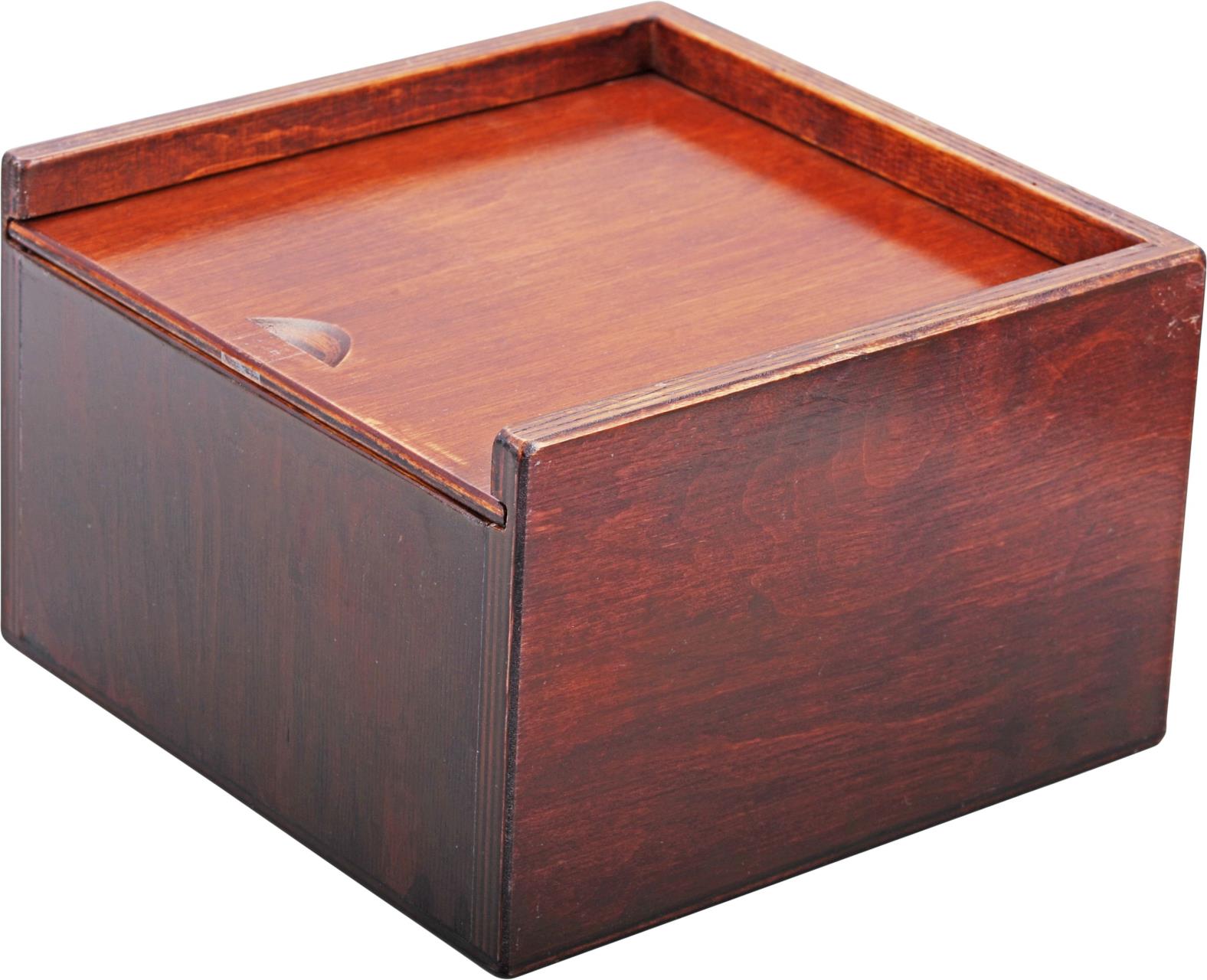

Available accessory for CASSENS & PLATH boat compasses: storage box of dark-stained plywood. With supports for gimbals. Dimensions: 205 x 205 x 120 mm.

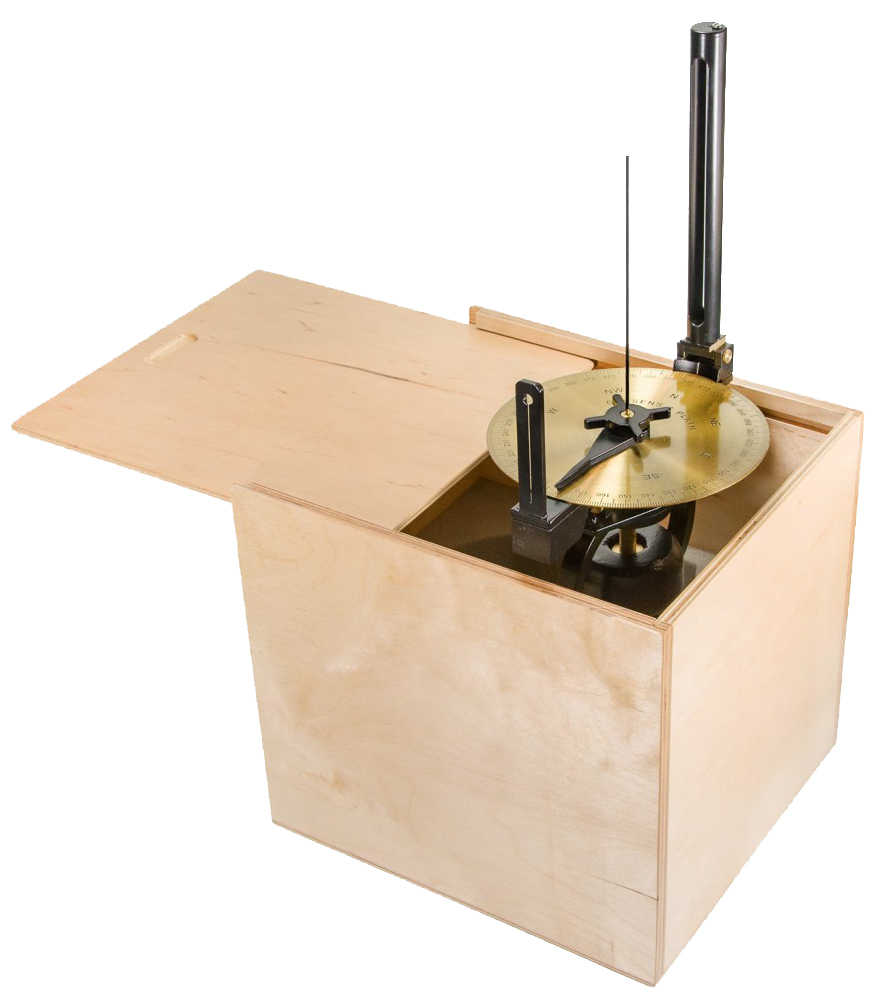

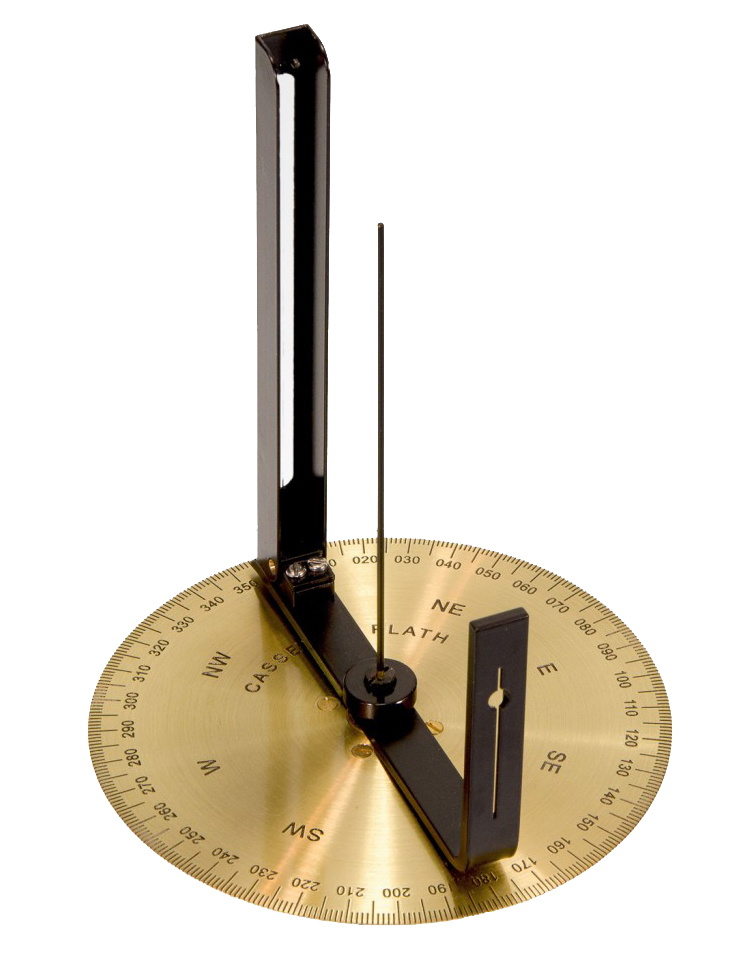

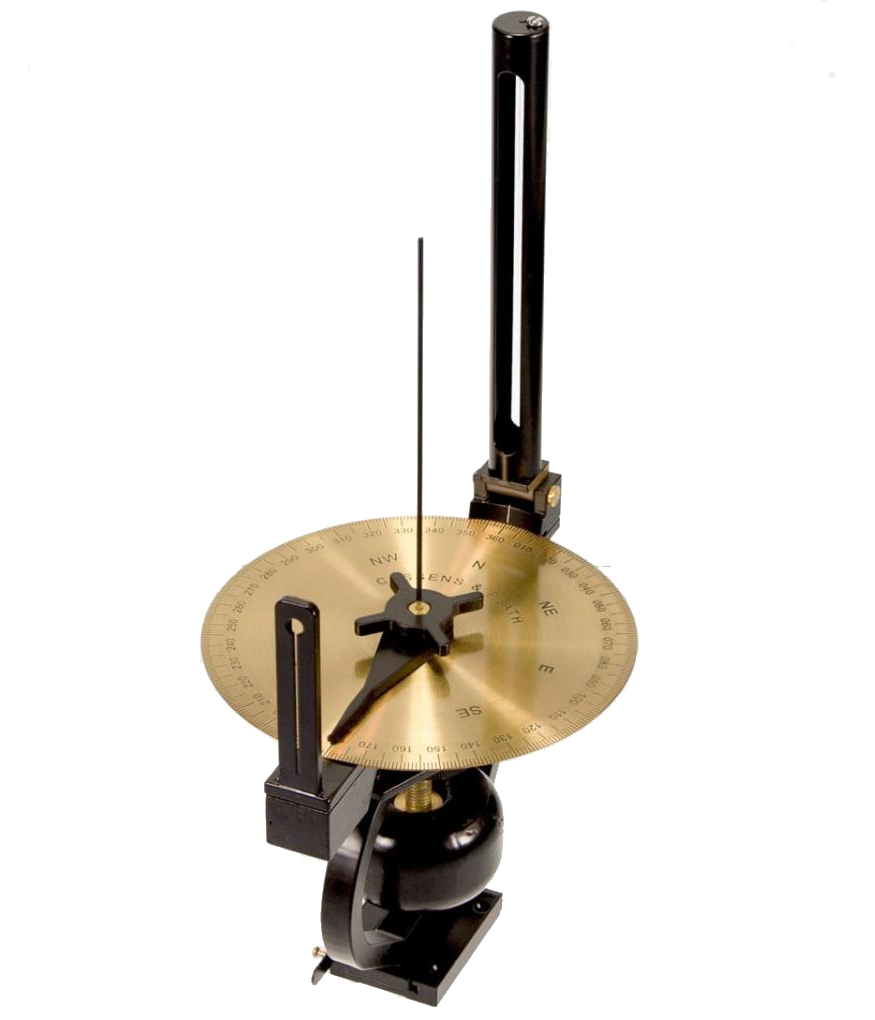

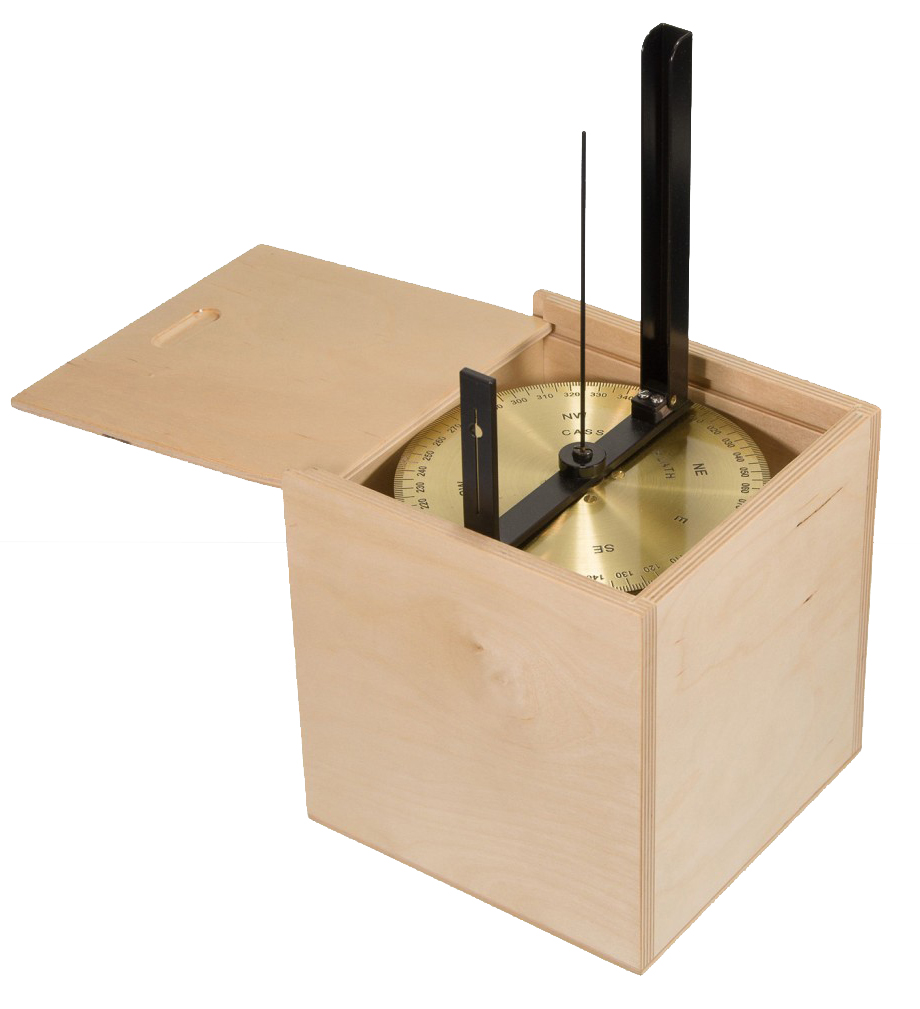

MED / SOLAS approval and GL certification according to ISO 25862, IEC 60945 for the pelorus with cardanic suspension (see further down on this page under "Downloads & Information").The pelorus is used on (steel) ships for relatice bearings. The rotatable brass degree disc has a scale diameter of 140 resp. 160 mm and a full-circle degree marking. This can be locked to set the compass heading.A thread sight that can be swivelled in on the object side and a fixed slit sight on the observer side are used for taking bearings. A shadow pin for inserting into the centre piece is also included in the scope of delivery. Two deck shoes enable the direction finder disc to be attached quickly and securely to different bearing locations.Available with or without cardanic suspension.Dimensions of the pelorus SEA with cardanic suspension: 197 x 350 mm, 3 kg.Dimensions of the pelorus COAST without cardanic suspension: 140 x 220 mm, 1 kg.The optionally available plywood storage box with sliding lid on the top is used for safe storage and transport of the pelorus. It is available in two sizes for the pelorus with or without cardanic suspension.Dimensions of the wooden storage box for the pelorus SEA with cardanic suspension: 250 x 250 x 275 mm.Dimensions of the wooden storage box for the pelorus COAST without cardanic suspension: 175 x 170 x 175 mm.

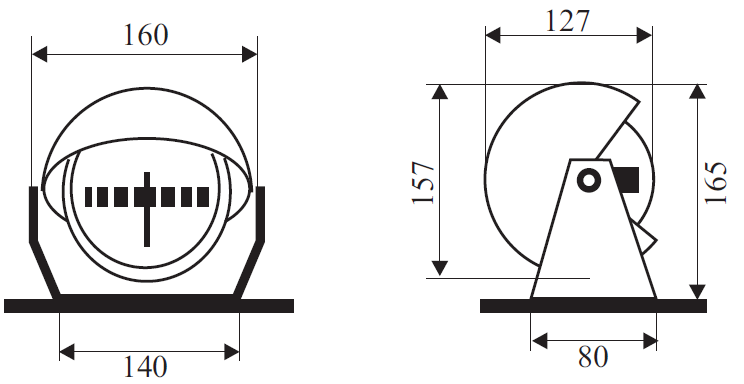

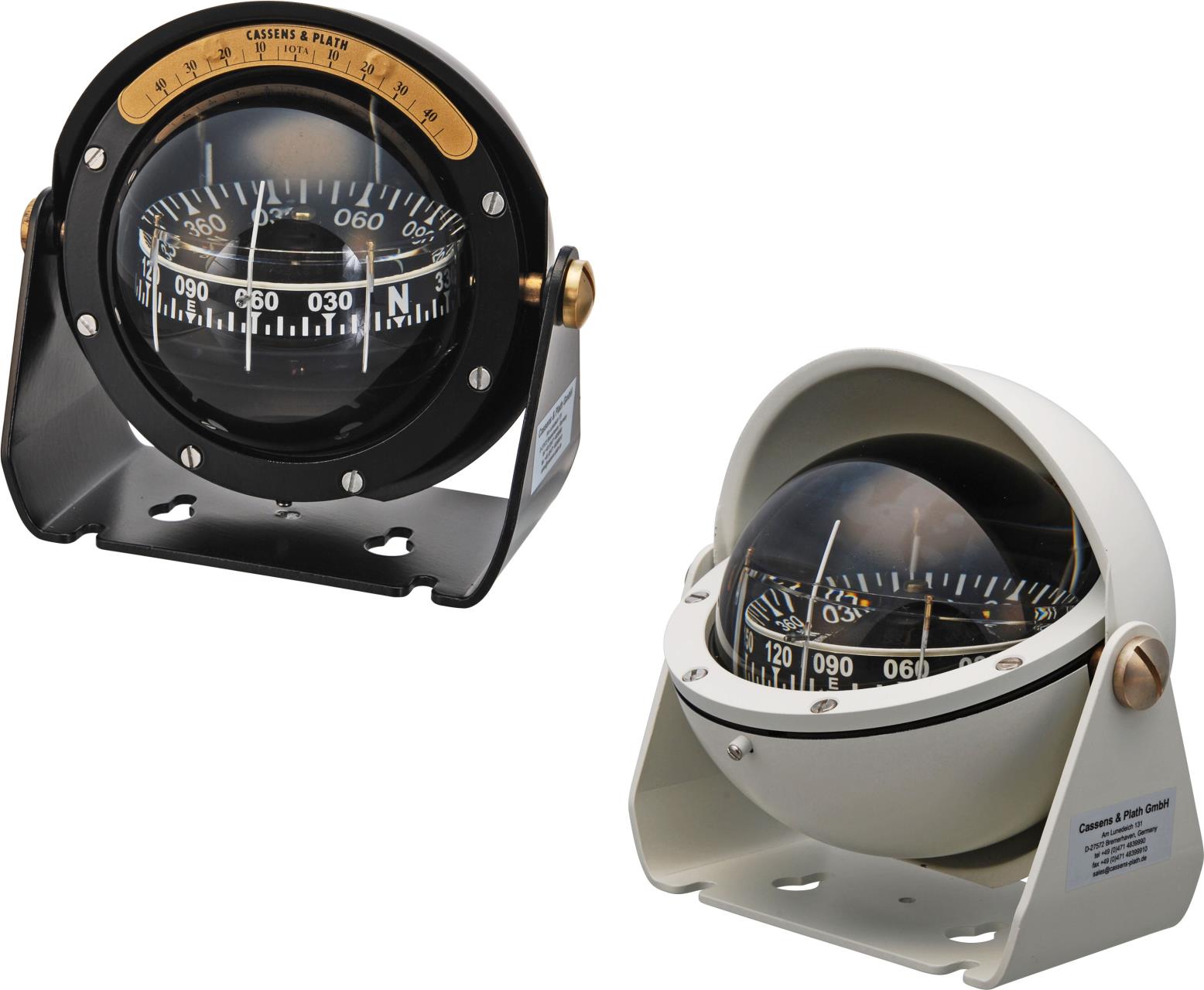

The CASSENS & PLATH IOTA/2 surface-mounted spherical compass with its fully cardanic bearing is suitable as a steering compass for console, wall (bulkhead) or ceiling mounting.The housing, the adjustable hood and the mounting bracket are made of brass and can be stove-enameled black or white. Under the polished mineral glass bell is the fully gimbal-mounted, black counter-sight compass rose with 5° graduation. The apparent diameter of the rose is 100 mm.Supplied with factory test certificate and 12 volt red light illumination element.Technical features:Dimensions: 160 x 165 x 127mmBearing: Fully cardanicApparent rose: Ø 100mmRolling clearance: /- 180°Stamp clearance: /- 180°A mounted B C compensation is recommended. With the cover plate (with or without B C compensation), the compass can be used in various positions. Both can be found under "Accessories".The IOTA/2 surface-mounted spherical compass is also available with MED approval. As IOTA/1, the compass is also available in a built-in version. Both versions can be found under "Similar products".

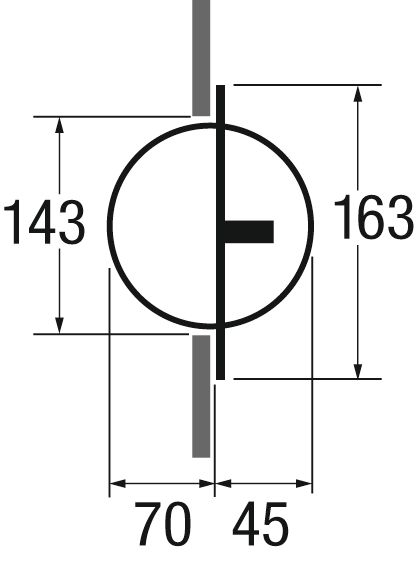

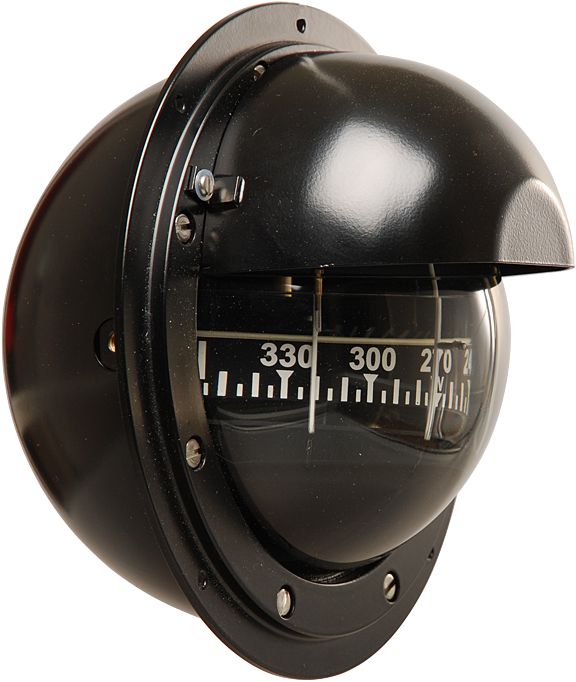

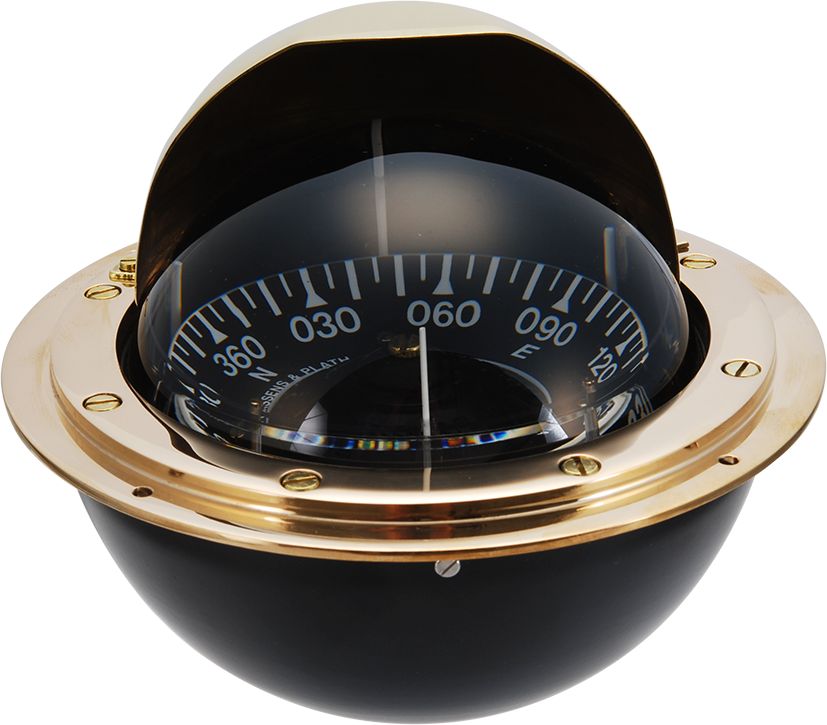

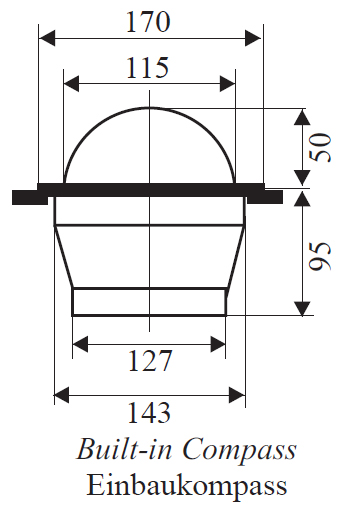

The CASSENS & PLATH IOTA/1 built-in spherical compass with its fully cardanic bearing is suitable as a steering compass for console or wall (bulkhead) mounting.The housing and the adjustable hood are made of brass and can be stove-enameled black or white or polished. Under the polished mineral glass bell is the fully gimbal-mounted, black counter-sight compass rose with 5° graduation. The apparent diameter of the rose is 100 mm.Supplied with factory test certificate and 12 volt red light illumination element.Technical features:Total/flange Ø: 143mmBearing: Fully cardanicApparent rose: Ø 100mmRolling clearance: /- 180°Stamp clearance: /- 180°A mounted B C compensation is recommended. You can find this under "Accessories".The IOTA/1 built-in spherical compass is also available with MED approval. The IOTA/2 compass is also available in a surface-mounted version. Both versions can be found under "Similar products".

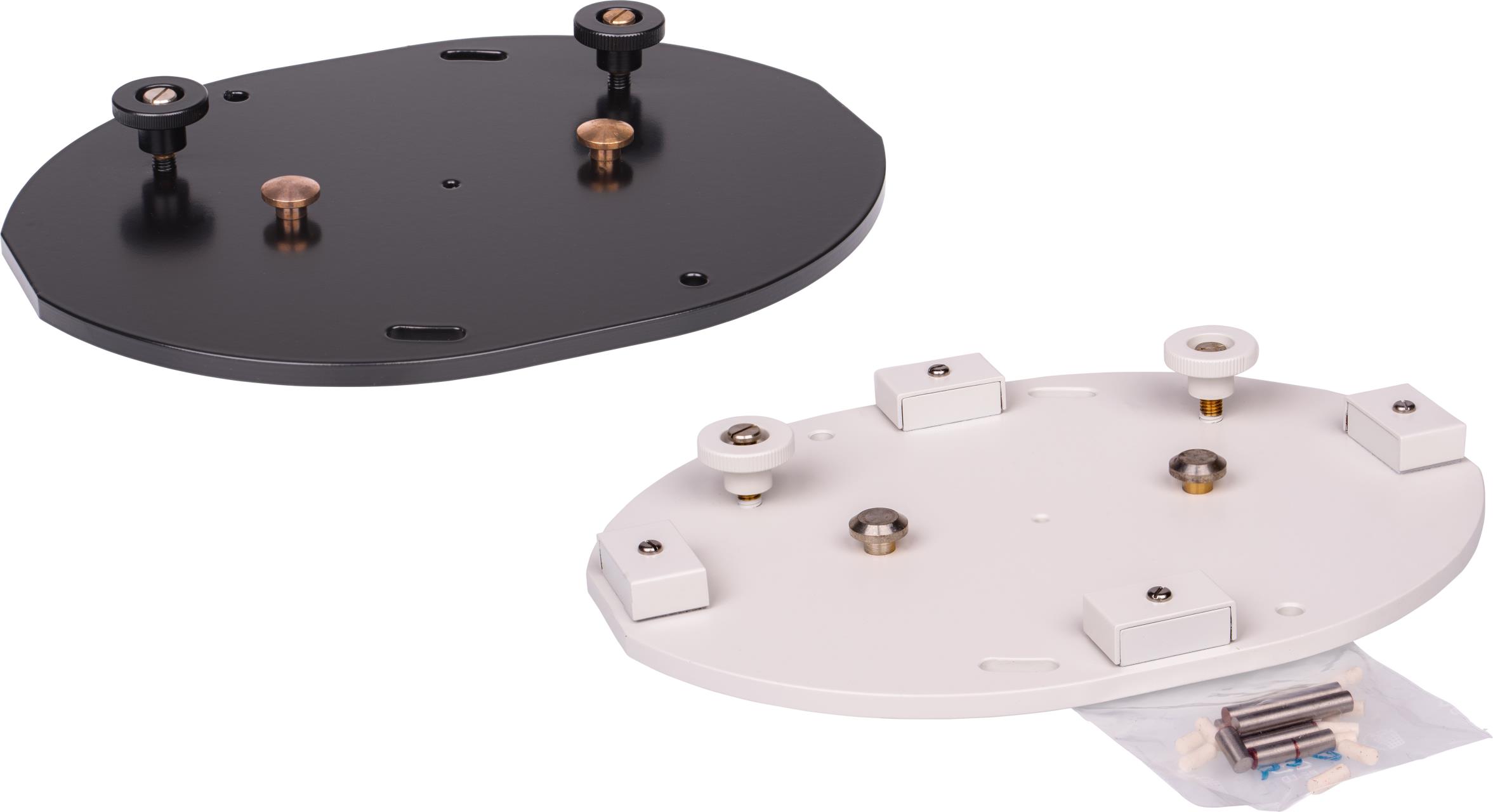

Oval deck plates (185 x 140 mm) with quick lock for IOTA/2 with bracket mounting are available. The 24 volt lighting is suitable for all IOTA Kompanten.
