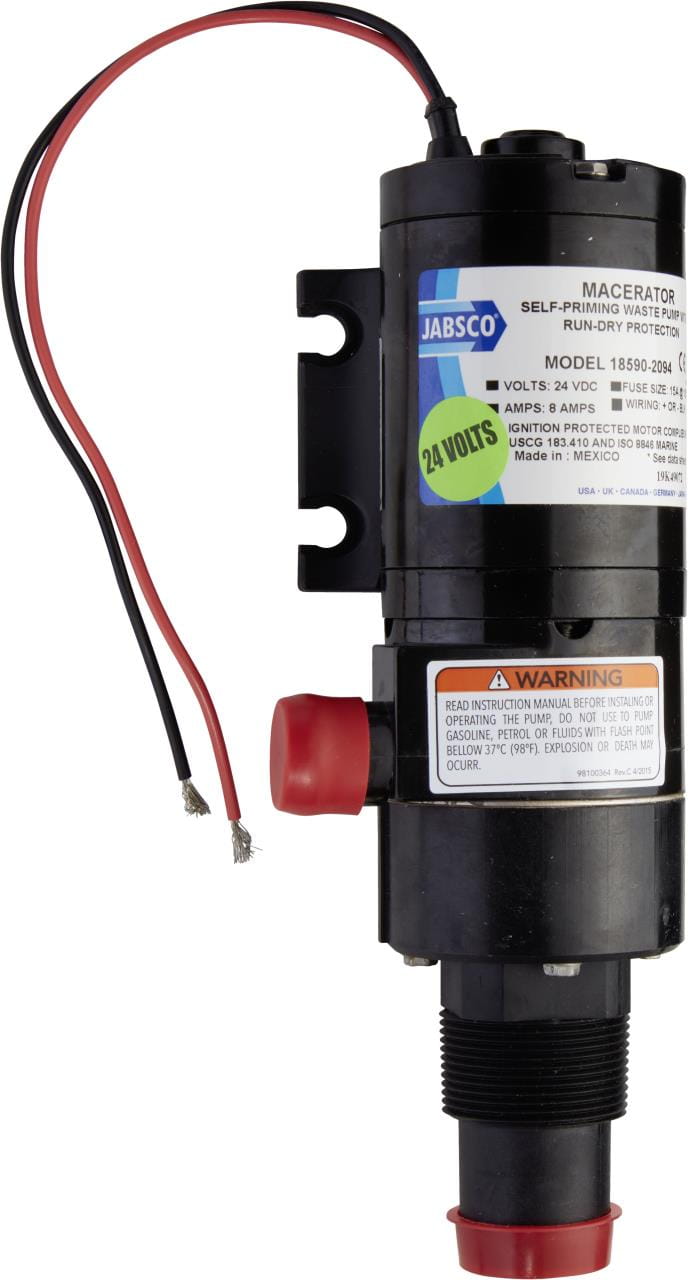

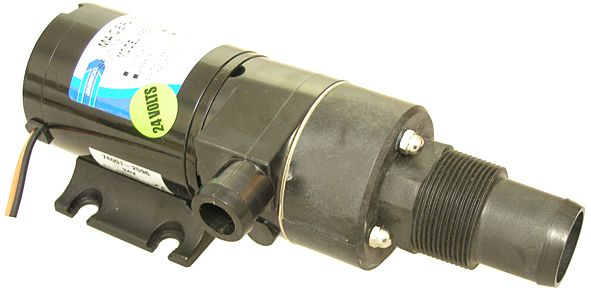

Macerator pump JABSCO

4635*01 Fäkalienpumpe JABSCO

from €359.00*

€359.00*

Prices incl. VAT plus shipping costs

Available, delivery time: 1 Tag

In stock

model
voltage (V)
current (A)
output
Stk
The perfect solution, for example, for emptying a waste water tank.
Dry self-priming impeller pump with nitrile impeller and built-in stainless steel cutting wheel as chopper.
Suction lift to 1.2 m, pump power max. 2700 l/h.
Special feature: The pump works with a patented dry-running protection: when it runs dry, it immediately switches off, thereby hindering damage to the impeller.
New activation of the pump through switching it off and on.
Attachments:
Inlet-1-1/2" (38 mm) Hose Barb and1-1/2" N.P.T. (Male).
Outlet-1" (25 mm) Hose Barb.
Dimensions: 286 x 106 x 92 mm.
more information
Show 2 articles
📖 View article in the TOPLICHT catalogue


Downloads

The perfect solution, for example, for emptying a waste water tank.
Dry self-priming impeller pump with nitrile impeller and built-in stainless steel cutting wheel as chopper.
Suction lift to 1.2 m, pump power max. 2700 l/h.
Special feature: The pump works with a patented dry-running protection: when it runs dry, it immediately switches off, thereby hindering damage to the impeller.
New activation of the pump through switching it off and on.
Attachments:
Inlet-1-1/2" (38 mm) Hose Barb and1-1/2" N.P.T. (Male).
Outlet-1" (25 mm) Hose Barb.
Dimensions: 286 x 106 x 92 mm.
