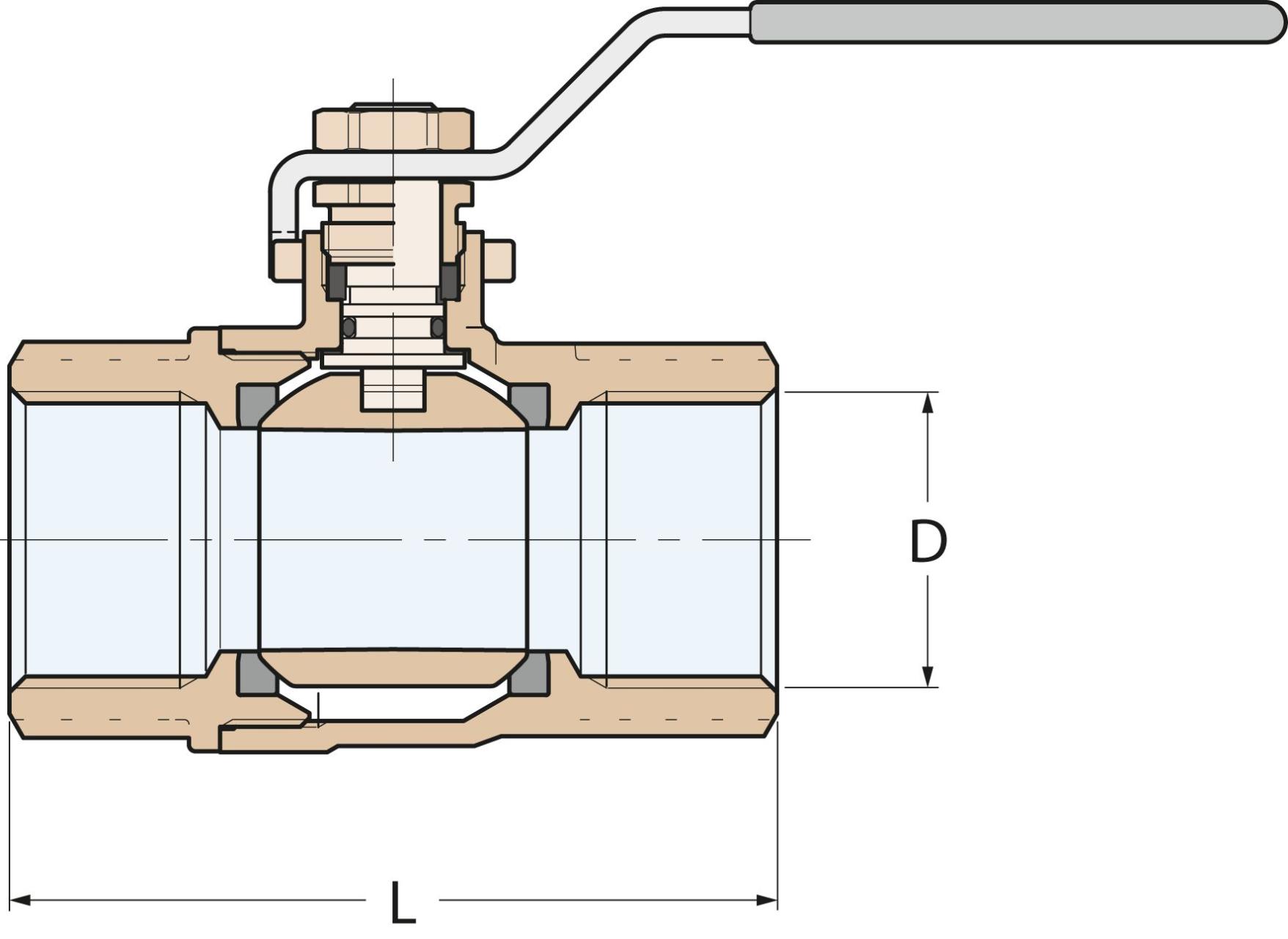

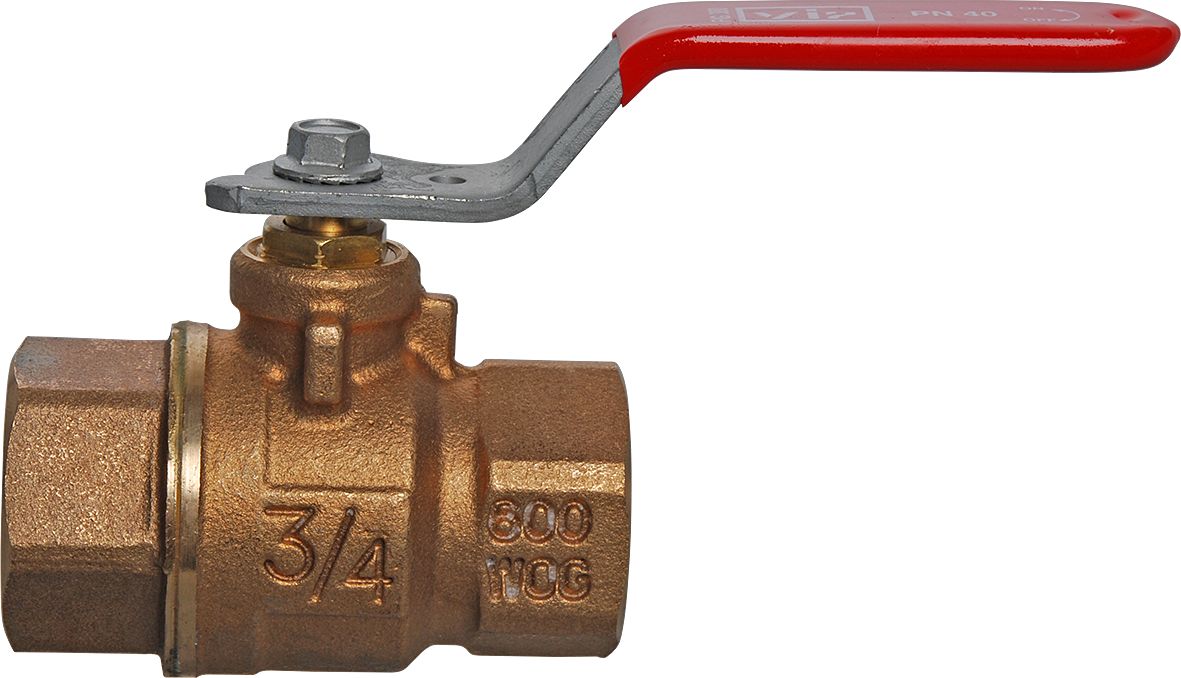

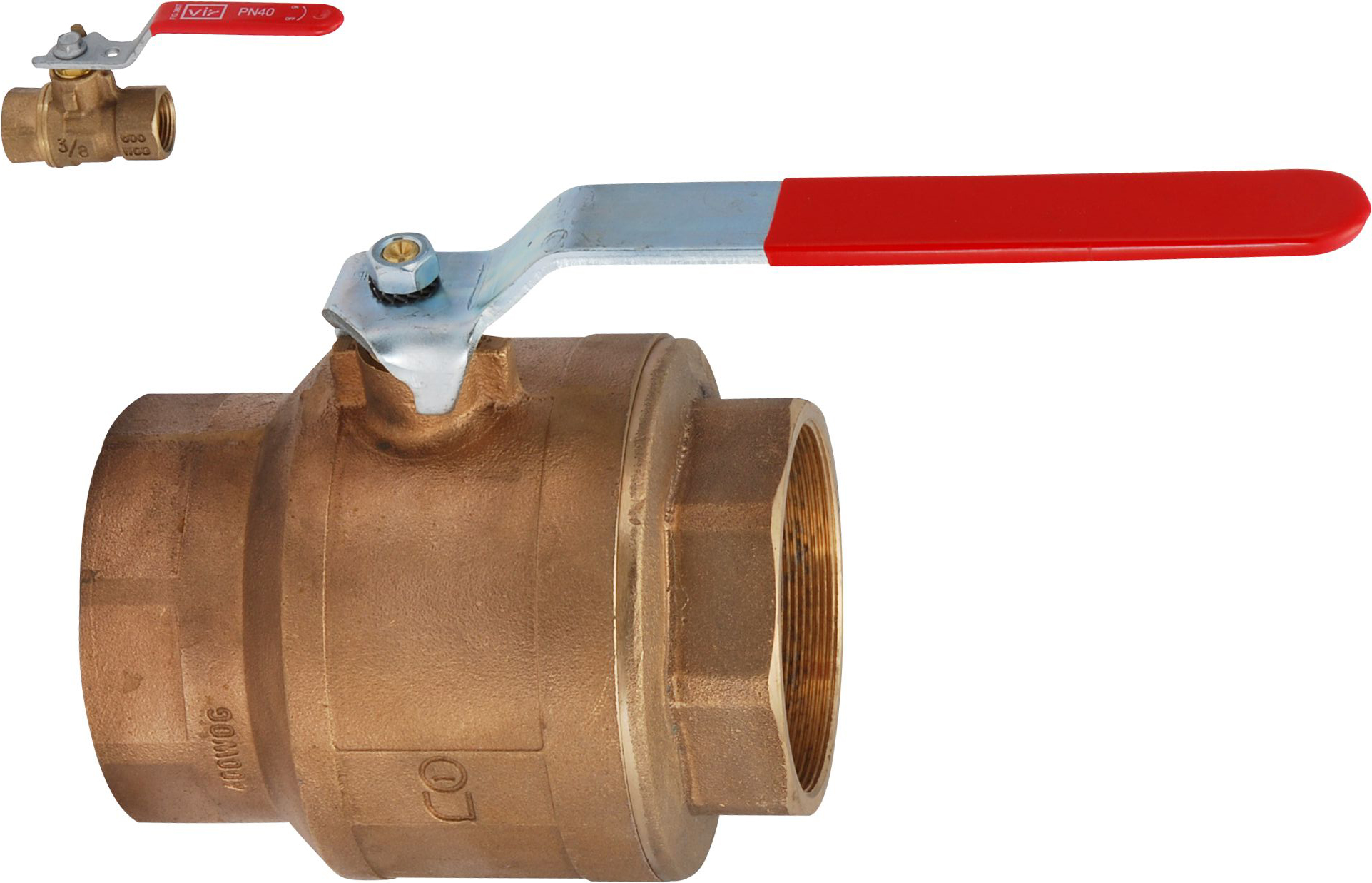

Branded ball valve made of seawater-resistant bronze alloy CB491K CuSn5Zn5Pb5-B with full bore. Female thread to ISO 228/1 on both sides, the ball is made of hard chrome-plated brass CW617N with PTFE sealing shells. The lever is made of steel with a special GEOMET corrosion coating, with red PVC coating. Nominal working pressure PN40.A lockable lever is available (see accessories).Gewindeart: BSPGewindeform: zylindrisch, bzw. parallelDie Gewindegrößen sind Nenngrößen, sie bezeichnen nicht den Gewindedurchmesser.

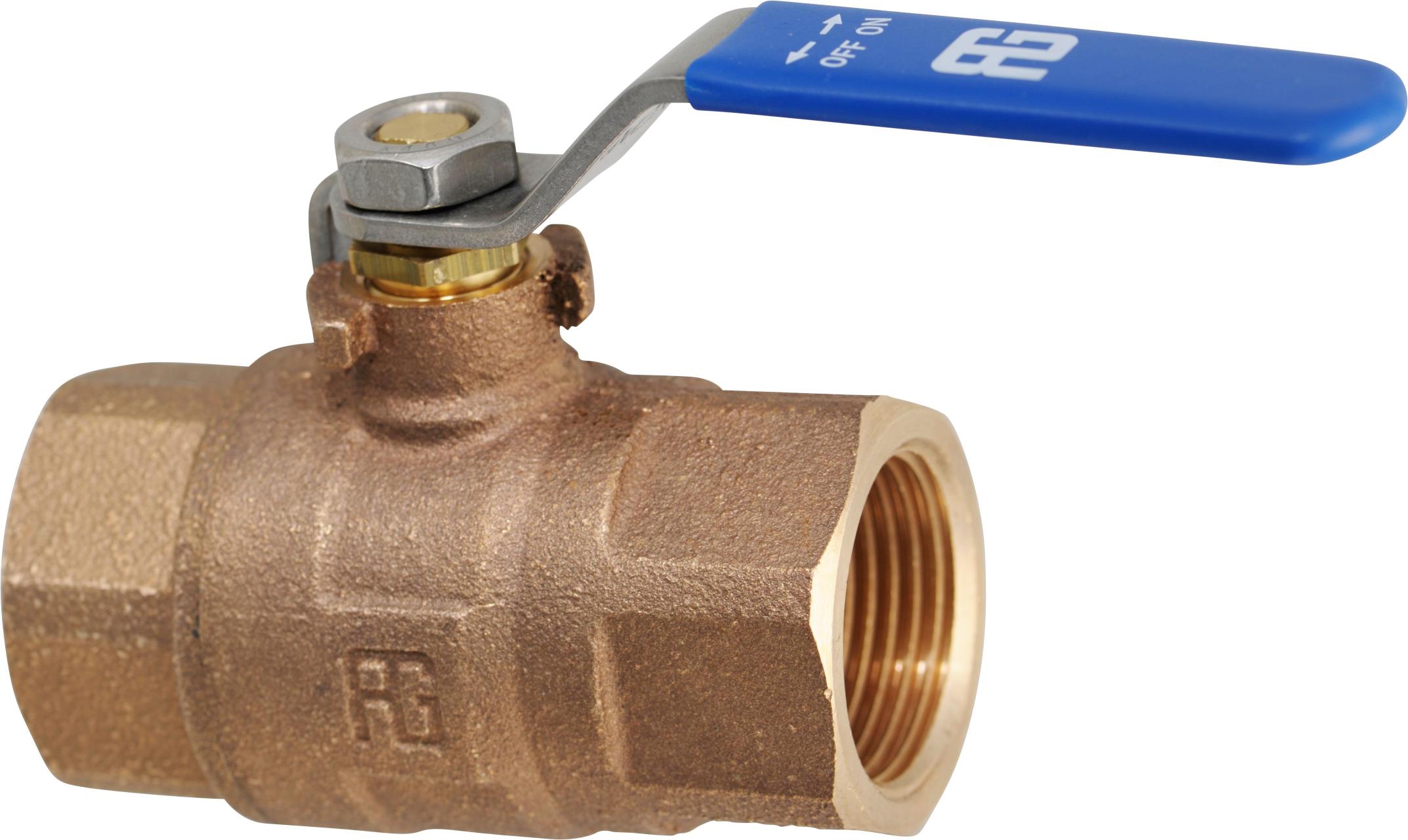

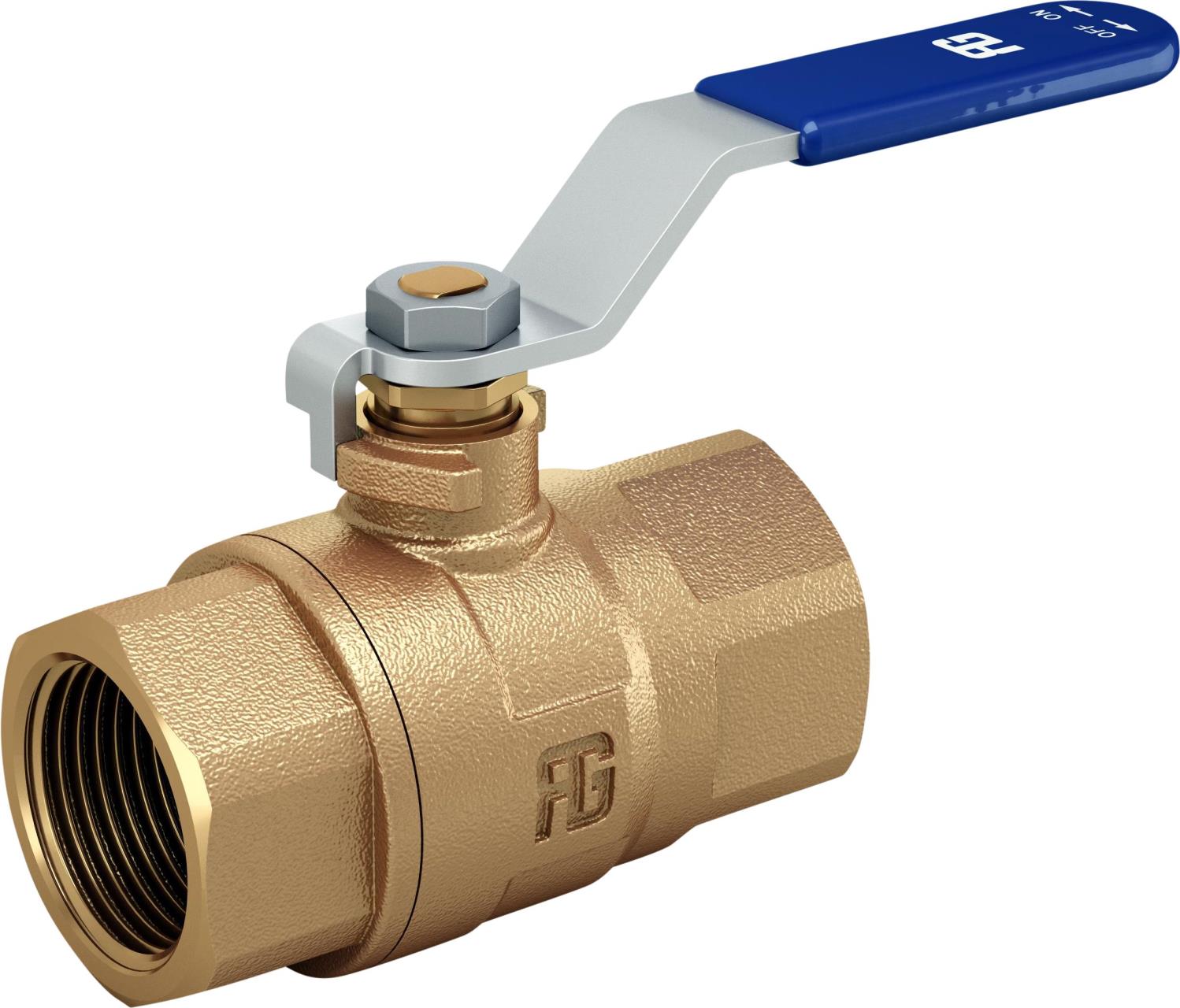

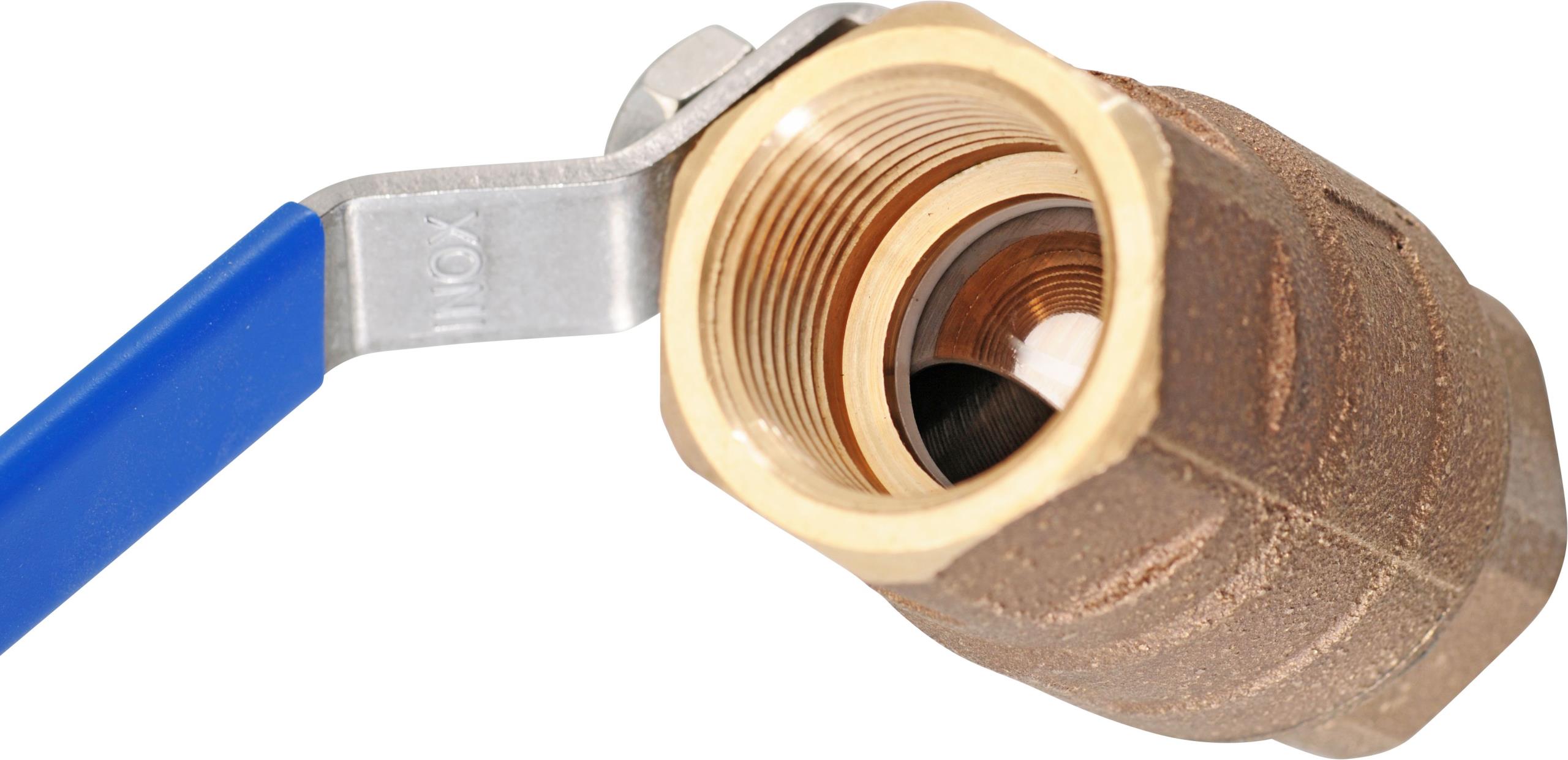

Ball valve made of the seawater-resistant bronze alloy CC499K (CuSn5Zn5Pb2-C), specially developed for marine applications.The ball is made of hard chrome-plated brass CW617N, an additional special surface treatment prevents the adhesion of dirt and incrustations. The shaft is made of seawater-resistant brass CW625N, the lever and fixing nut are made of stainless steel 304.The lever is coated with PVC (the colour may differ from the one in the photo).Thread type: BSPThread form: parallelThe thread sizes are nominal sizes, they do not indicate the thread diameter.

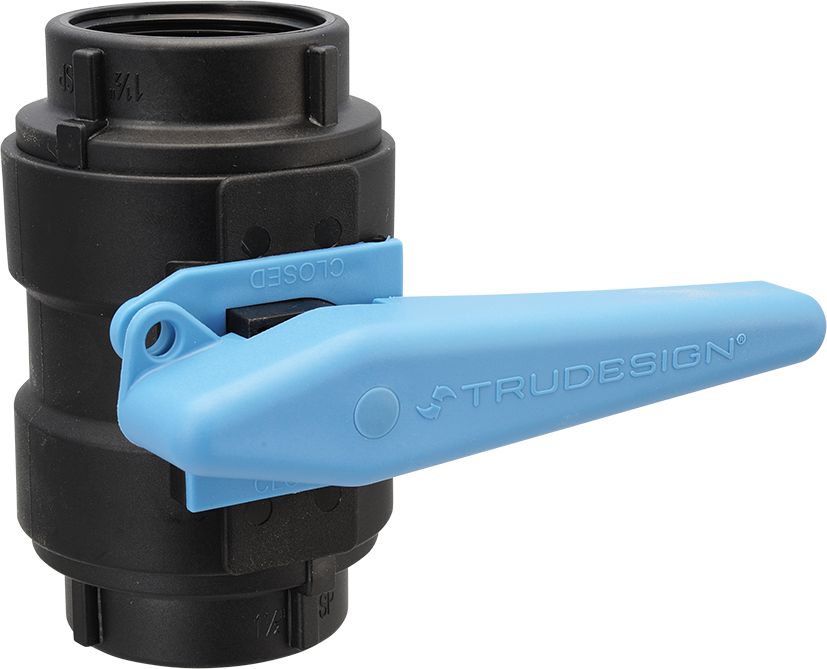

On both ends BSP internal thread, colour black with blue handle and a locking nose for a padlock.The ball cock is smooth-running, the ball PTFE sealed with reduced passage.Also available on request with sensors for an electronic position indicator. See under similar products.TRUDESIGN is the world leader in fittings made from composite materials. From its founding in 1974 the fittings are manufactured in New Zealand. Every TRUDESIGN part is made from high tensile composite GRP, a glass fibre reinforced Polyamide (6). The advantages are a high rigidity, temperature-resistance -40° to 80° C, resistant to oil and chemicals, of low weight, absolutely corrosion-resistant, electrically non-conductive and therefore especially suited for ship building materials which are galvanically sensitive like aluminium and steel.Every TRUDESIGN fitting has a tapered Whitworth pipe thread BSP (British Standard Pipe Thread) according to ISO 228-1, it is therefore fully convertible with fittings from brass, bronze or stainless steel. The shuttle valves and through hulls are approved and IMCI certificated after ISO 9093-2 (sea cocks and through hulls for pleasure vessels).

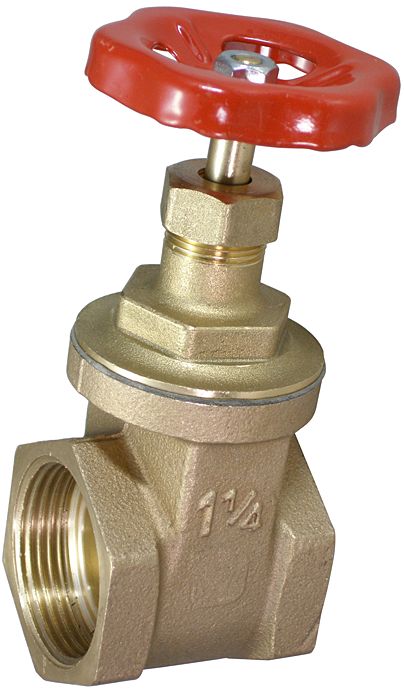

Sleeve gate valve with a housing of seawater-resistant bronze, heavy design with full run-through on both sides and inner threads. Hand wheel of painted steel, the shaft ist made of brass.Max. working pressure, 16 bar.Thread type: BSPThread form: parallelThe thread sizes are nominal sizes, they do not indicate the thread diameter.

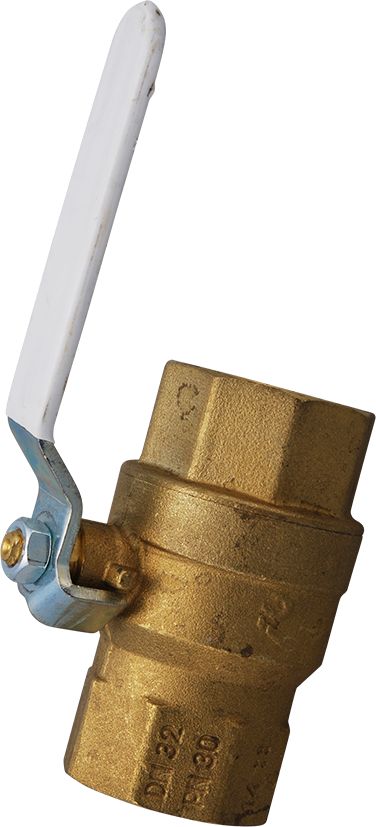

High-quality brass ball valve with full passage. All components are made from a corrosion resistant brass alloy CW602N - CuZn36Pb2AS.On both ends with BSP internal thread according to ISO 228, the ball hard chromed with sealant shells from PTFE. Hereby a long lasting light operation is guaranteed.The lever is made from steel and is protected from corrosion by a special PVC coating.Thread type: BSPThread form: parallelThe thread sizes are nominal sizes, they do not indicate the thread diameter.

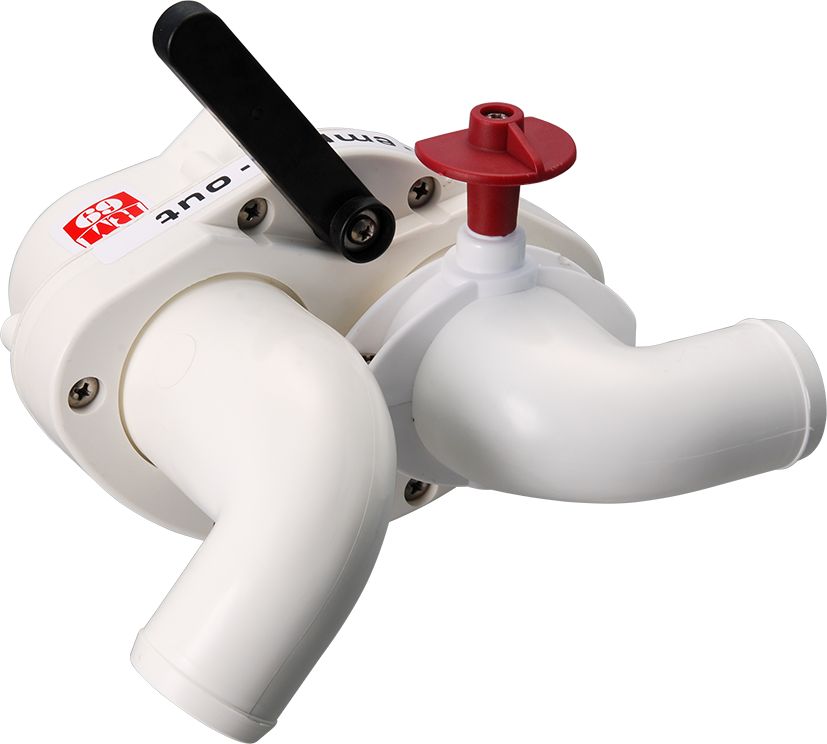

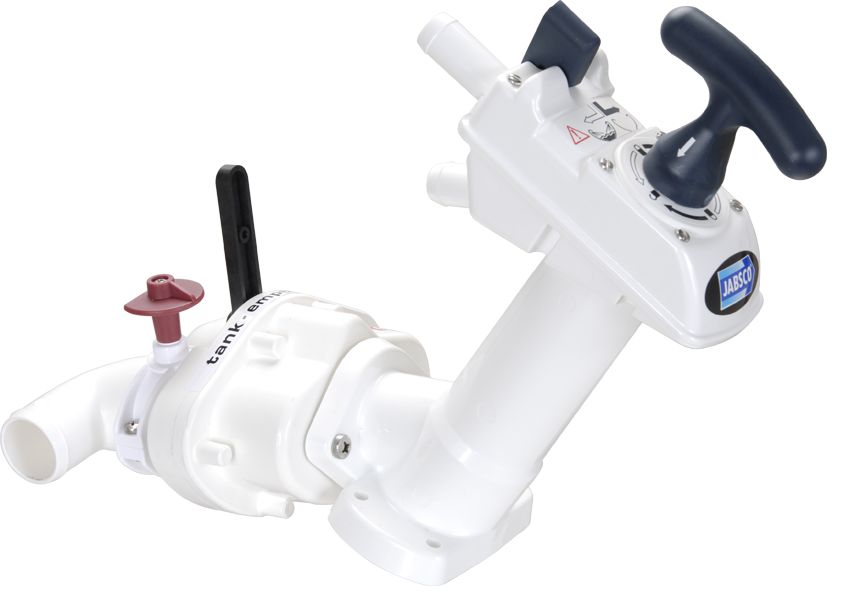

This three-way valve is essential when using a buffer tank and allows three functions:- pump waste directly to overboard- pump black water into the buffer tank- empty black water from the buffertank to outboards.The outlets are angulated and individually adjustable.Compatible with most ship toilets currently on the market (JABSCO, RM).A special plug for the toilet bowl is included.Comes without toilet pump!

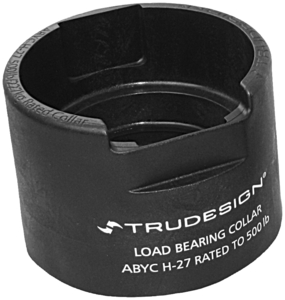

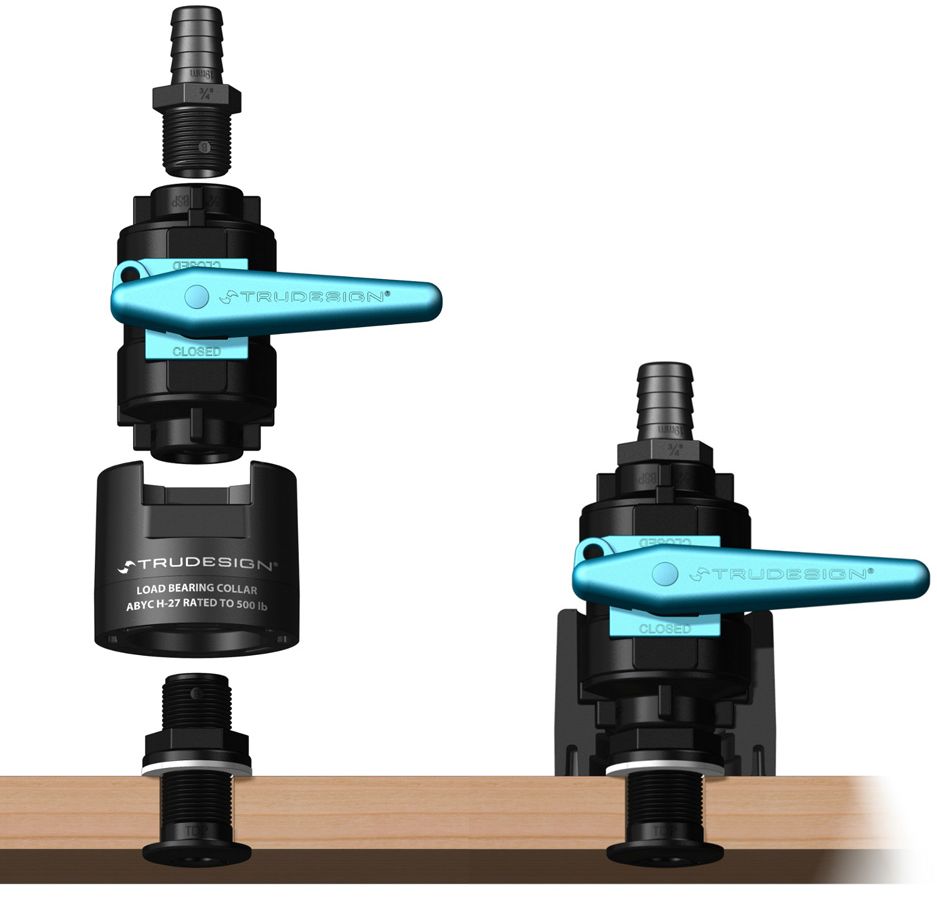

The load bearing collar is a linkage developed by TRUDESIGN, which is mounted inboards between the sea cock and the through hull. The collar increases the load bearing area of the valve in order to increase the toughness against the shearing forces when operating the valve. Easy fitting, there is no need for additional holes in the hull and it is applicable for all hull materials. Certified by the ABYC, awarded with the DAME AWARD in 2015. Colour: black. TRUDESIGN is the world leader in fittings made from composite materials. From its founding in 1974 the fittings are manufactured in New Zealand. Every TRUDESIGN part is made from high tensile composite GRP, a glass fibre reinforced Polyamide (6). The advantages are a high rigidity, temperature-resistance -40° to 80° C, resistant to oil and chemicals, of low weight, absolutely corrosion-resistant, electrically non-conductive and therefore especially suited for ship building materials which are galvanically sensitive like aluminium and steel. Every TRUDESIGN fitting has a tapered Whitworth pipe thread BSP (British Standard Pipe Thread) according to ISO 228-1, it is therefore fully convertible with fittings from brass, bronze or stainless steel. The shuttle valves and through hulls are approved and IMCI certificated after ISO 9093-2 (sea cocks and through hulls for pleasure vessels).

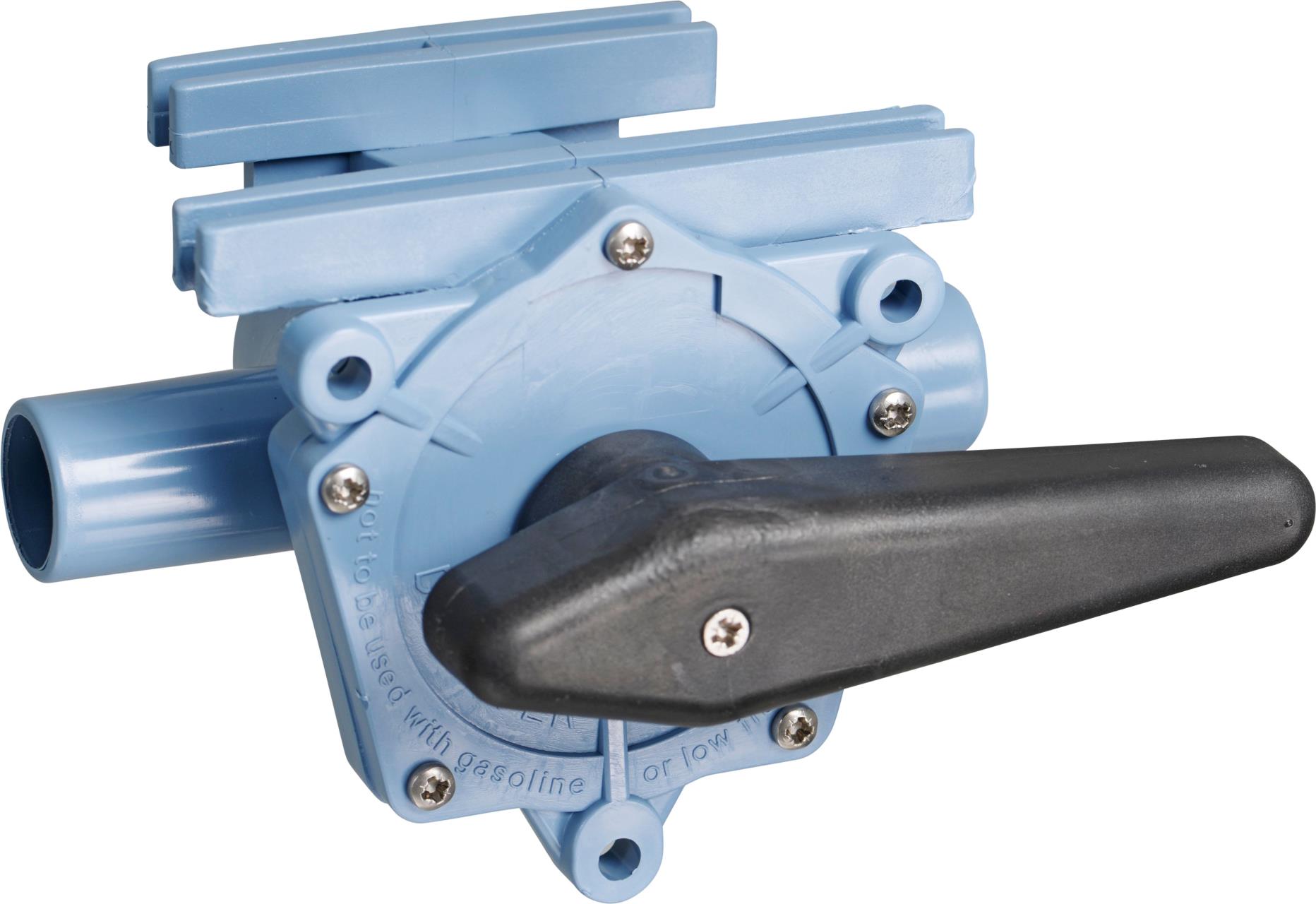

This valve is lockable using a padlock. Pursuant to the HELCOM accord it is compliant with ISO 8099, which prescribes a lockable outlet for all holding tanks since. With this valve you can fulfill this requirement!Plastic, for hoses d = 38 mm.Through the included nozzle, even 25 mm hose can be attached on the inlet side. Two attachment nozzles turn, so that it can be installed in just about any mounting situation.A mounting set (valve axle lengthening) for mounting the valve on the back of a bulkhead is available as an accessory.

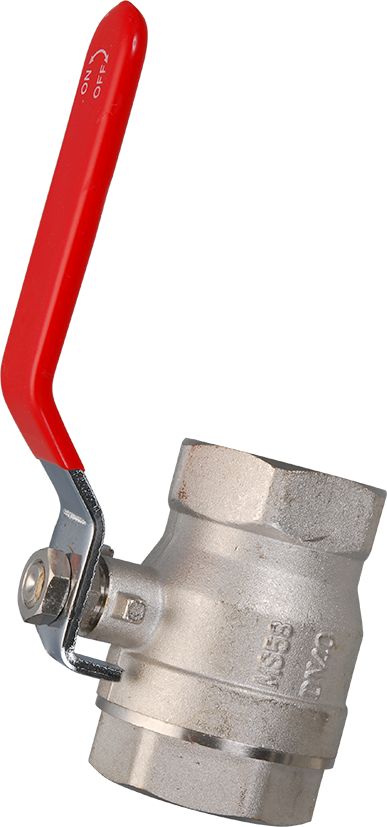

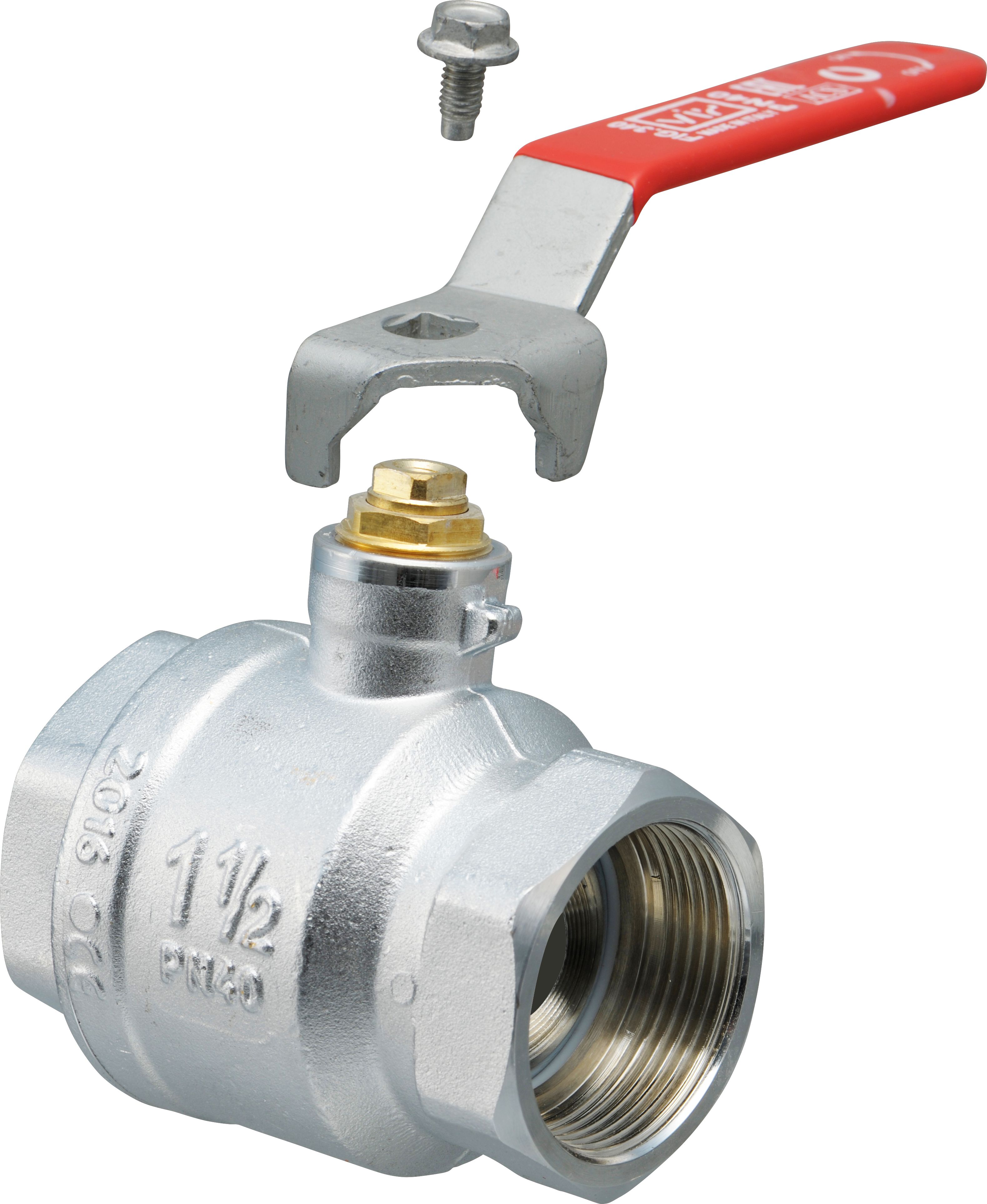

Branded ball valve made of chrome-plated brass, with full bore. Body, ball and shaft are made of copper alloy CW617N - CuZn40Pb2, also known as MS58.Internal thread on both sides, high grade chrome-plated ball with PTFE sealing shells for smooth operation. The steel operating lever with PVC coating is protected against corrosion with a special GEOMET 321 coating.Thread type: BSPThread form: parallelThe thread sizes are nominal sizes, they do not indicate the thread diameter.

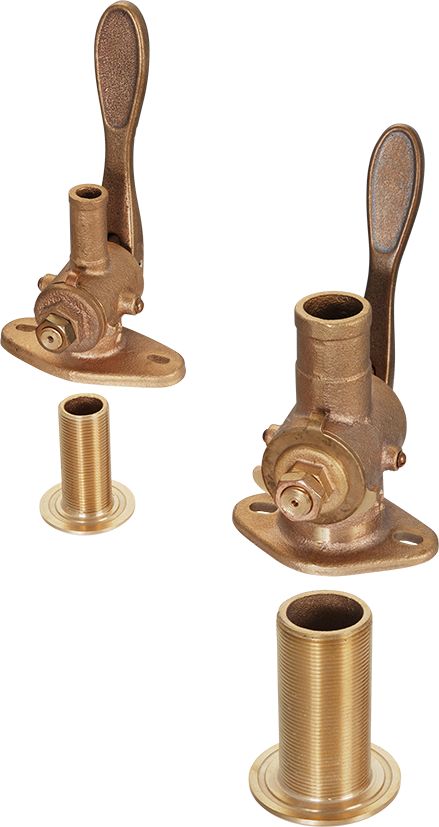

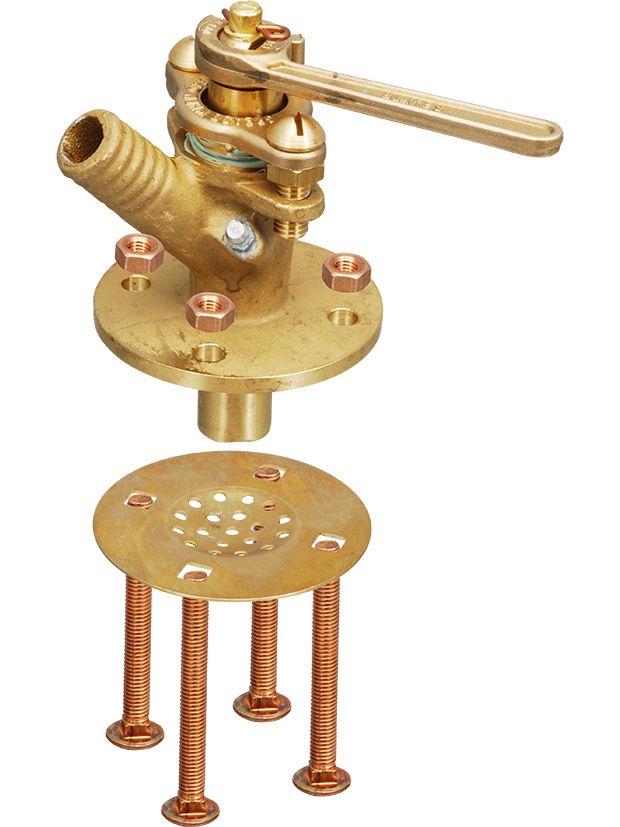

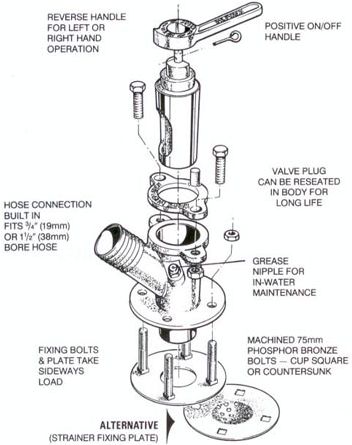

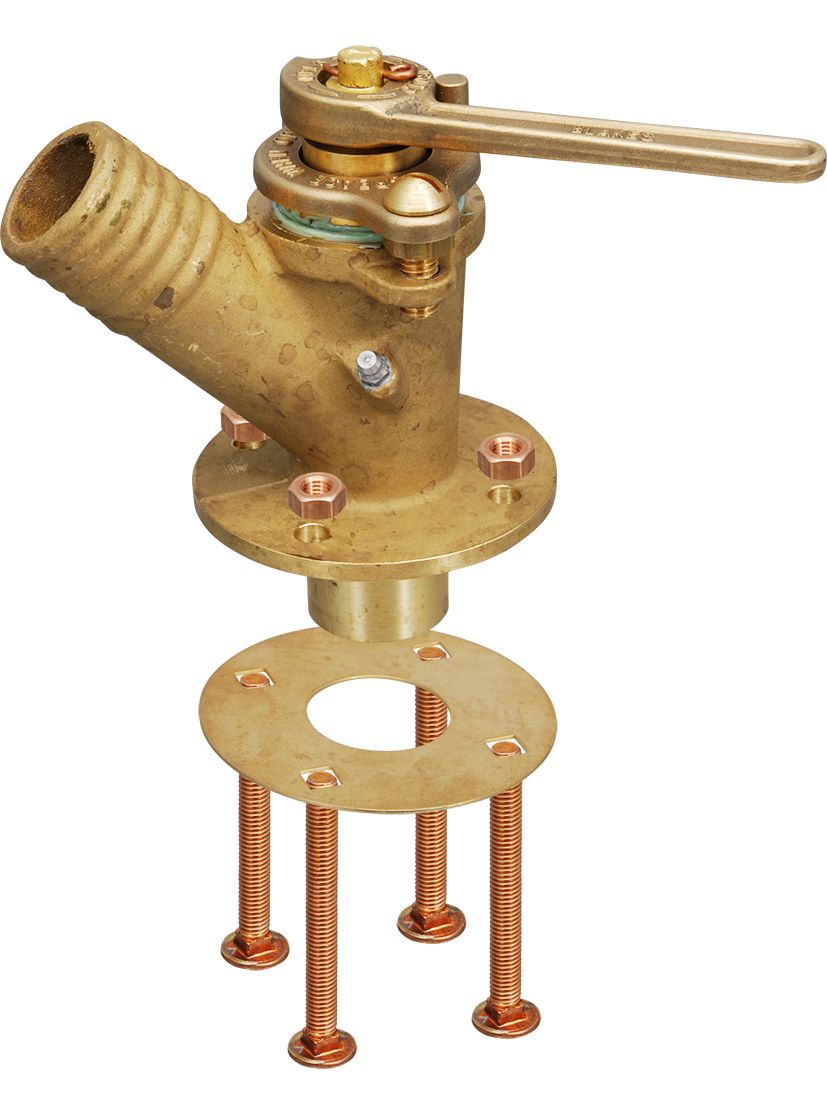

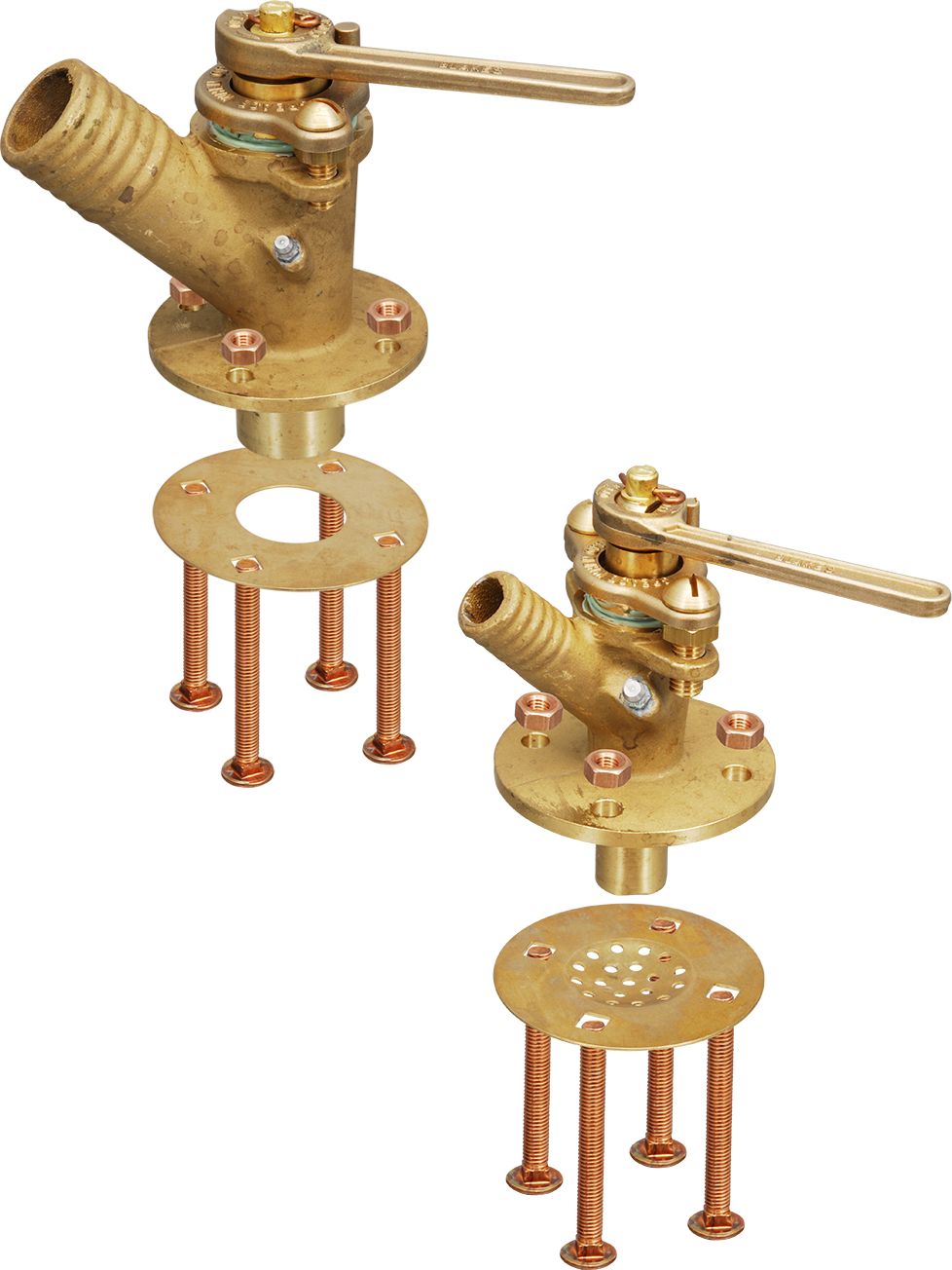

The BLAKES seacocks made of bronze (seawater-resistant bronze alloy CC491K - CuSn5Zn5Pb5) are characterised by a very robust, easy-to-maintain design that enables decades of use. The passage is opened and closed by means of a cone that does not require a seal and can be lubricated from the inside via a grease nipple. The valve body, the nozzle for the hose connection and the through-hull are made from a single casting, the assembly is carried out by screwing it to the hull using the enclosed bolts and a pressure plate. On the smaller valve, the enclosed pressure plate (4615-119) is designed as a sieve.Exceptionally well suited for inlets and outlets of toilets. Whether the seacock is open or closed can be immediately identified by the location of the handle.Lloyds Register Type approved. Available for a hose of 3/4" (19 mm) or 1 1/2" 38 mm).

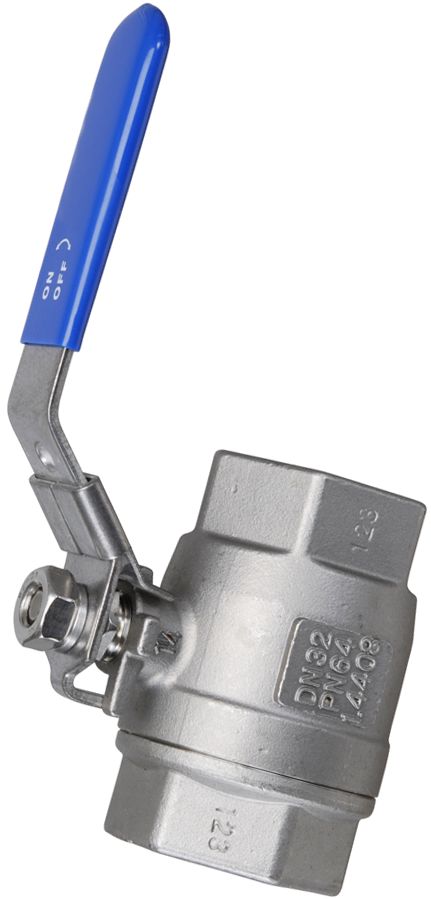

Ball valve of A4 stainless steel (AISI 316), fully through running,with inner threads on both sides and PTFE coating.The knob is stainless steel.Thread type: BSPThread form: parallelThe thread sizes are nominal sizes, they do not indicate the thread diameter.

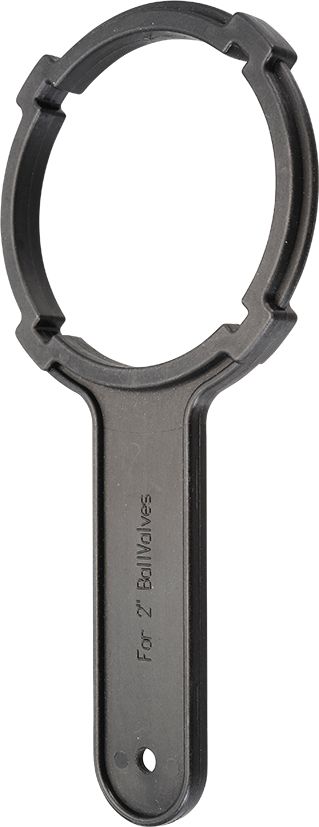

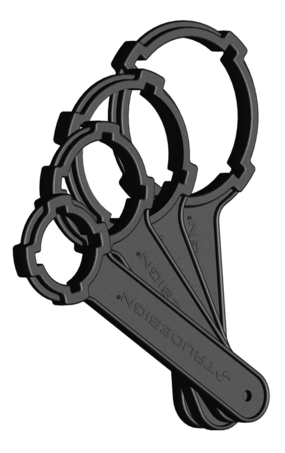

Practical installation wrenches for all sizes of TRUDESIGN through ball valves. TRUDESIGN is the world leader in fittings made from composite materials. From its founding in 1974 the fittings are manufactured in New Zealand. Every TRUDESIGN part is made from high tensile composite GRP, a glass fibre reinforced Polyamide (6). The advantages are a high rigidity, temperature-resistance -40° to 80° C, resistant to oil and chemicals, of low weight, absolutely corrosion-resistant, electrically non-conductive and therefore especially suited for ship building materials which are galvanically sensitive like aluminium and steel. Every TRUDESIGN fitting has a tapered Whitworth pipe thread BSP (British Standard Pipe Thread) according to ISO 228-1, it is therefore fully convertible with fittings from brass, bronze or stainless steel. The shuttle valves and through hulls are approved and IMCI certificated after ISO 9093-2 (sea cocks and through hulls for pleasure vessels).

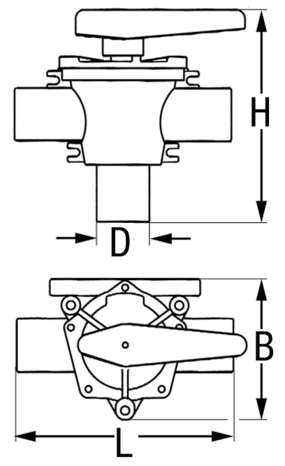

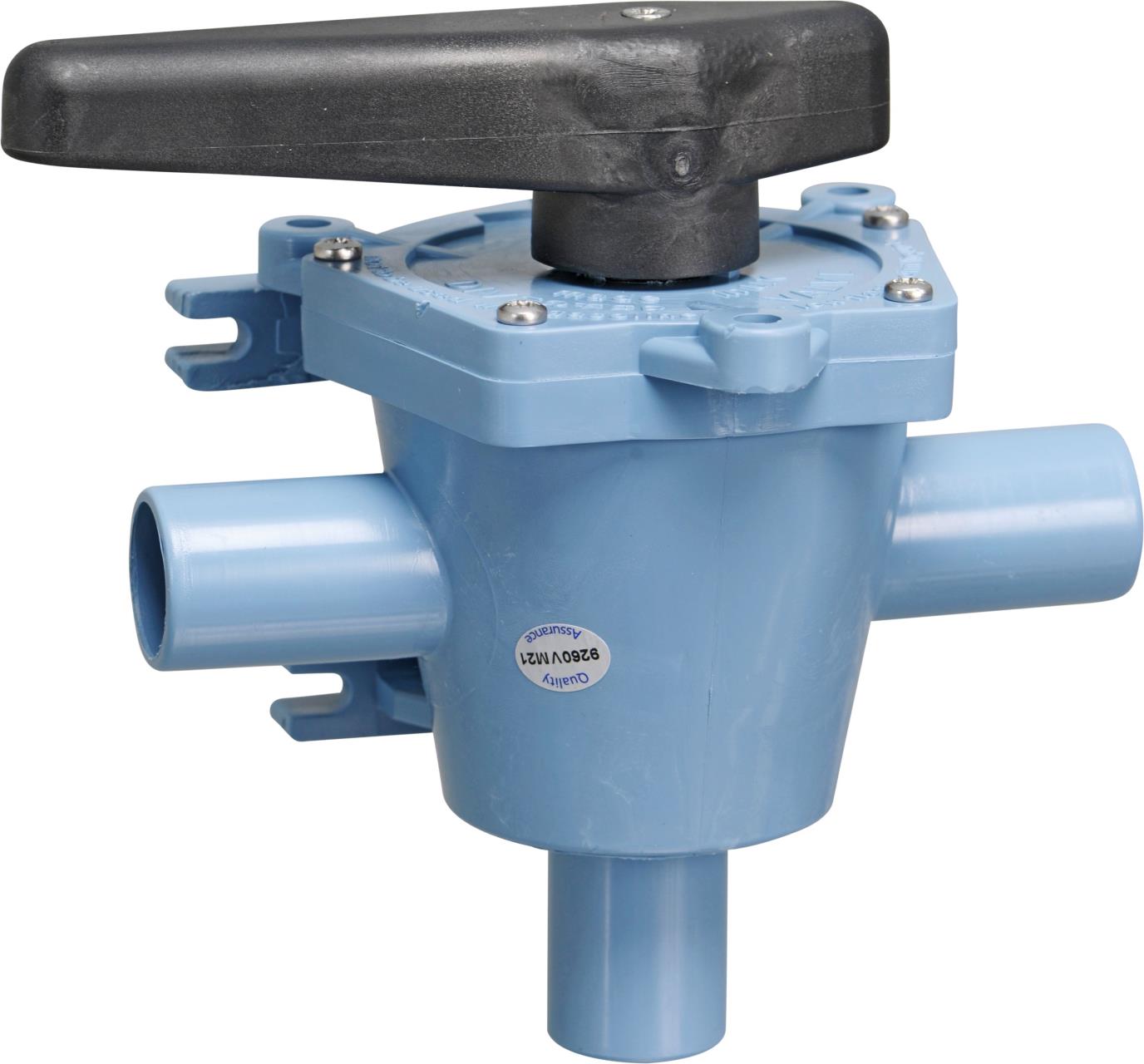

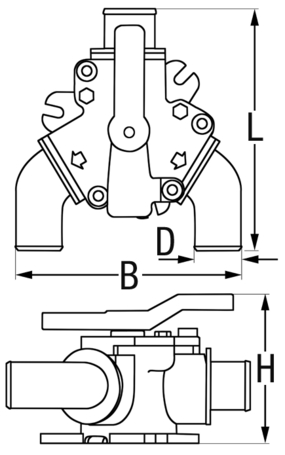

Very sturdy plastic T-valve from the manufacturer WHALE. Intented for blackwater, waste water and bilge water systems. (Bilge pump distribution, tank switching, etc.)Possible lever positions:- left outlet open- right outlet open- both outlets closedAvailable for 25 mm or 38 mm hose connection.

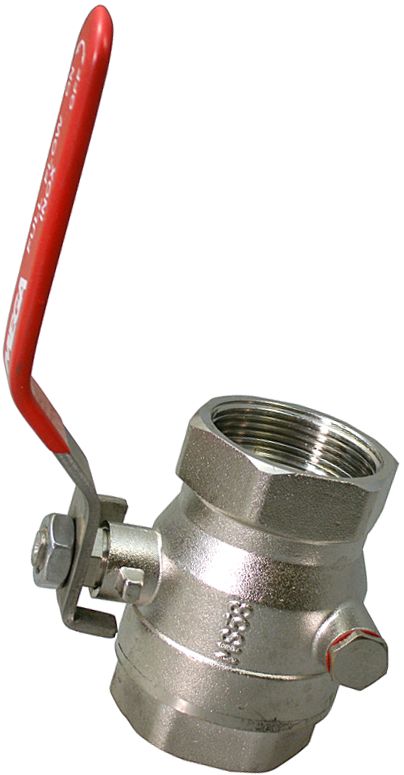

Ball valve with full open diameter, chromed brass body (alloy CW617N - CuZn40Pb2).Inner threads on both sides.Hard chromed brass ball with PTFE seal, brass shaft.Galvanized steel handle.Drain plug for water removal, which protects the housing from bursting in the cold season.Thread type: BSPThread form: parallelThe thread sizes are nominal sizes, they do not indicate the thread diameter.

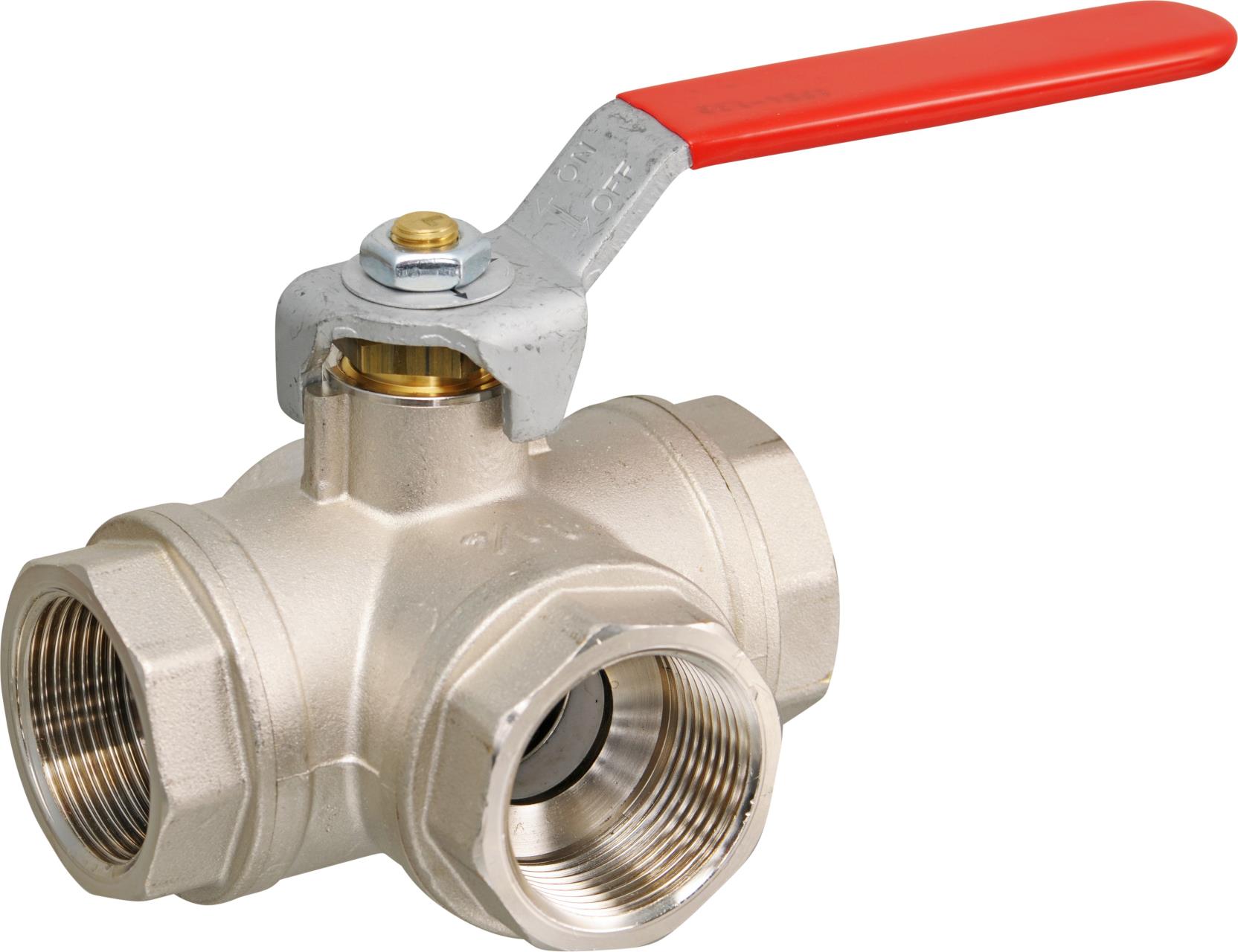

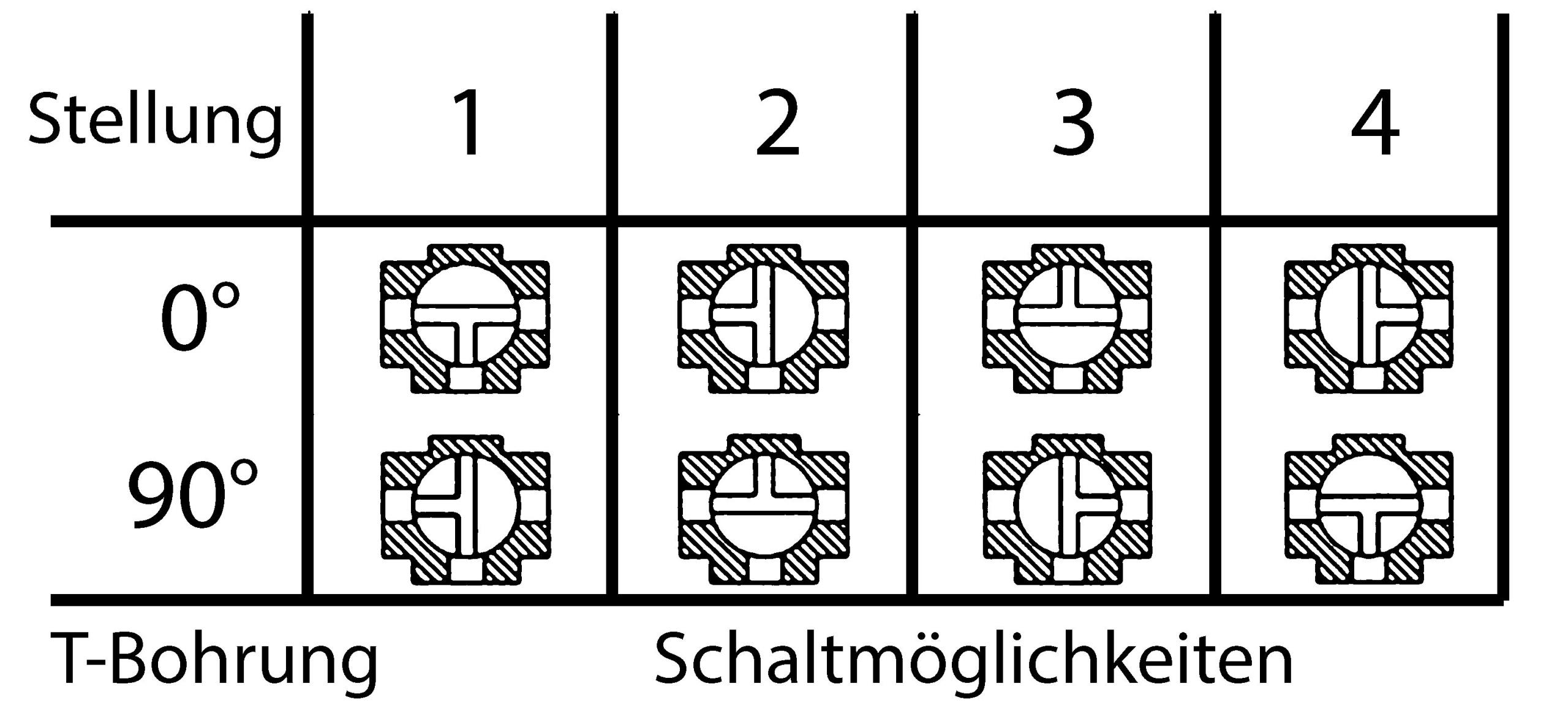

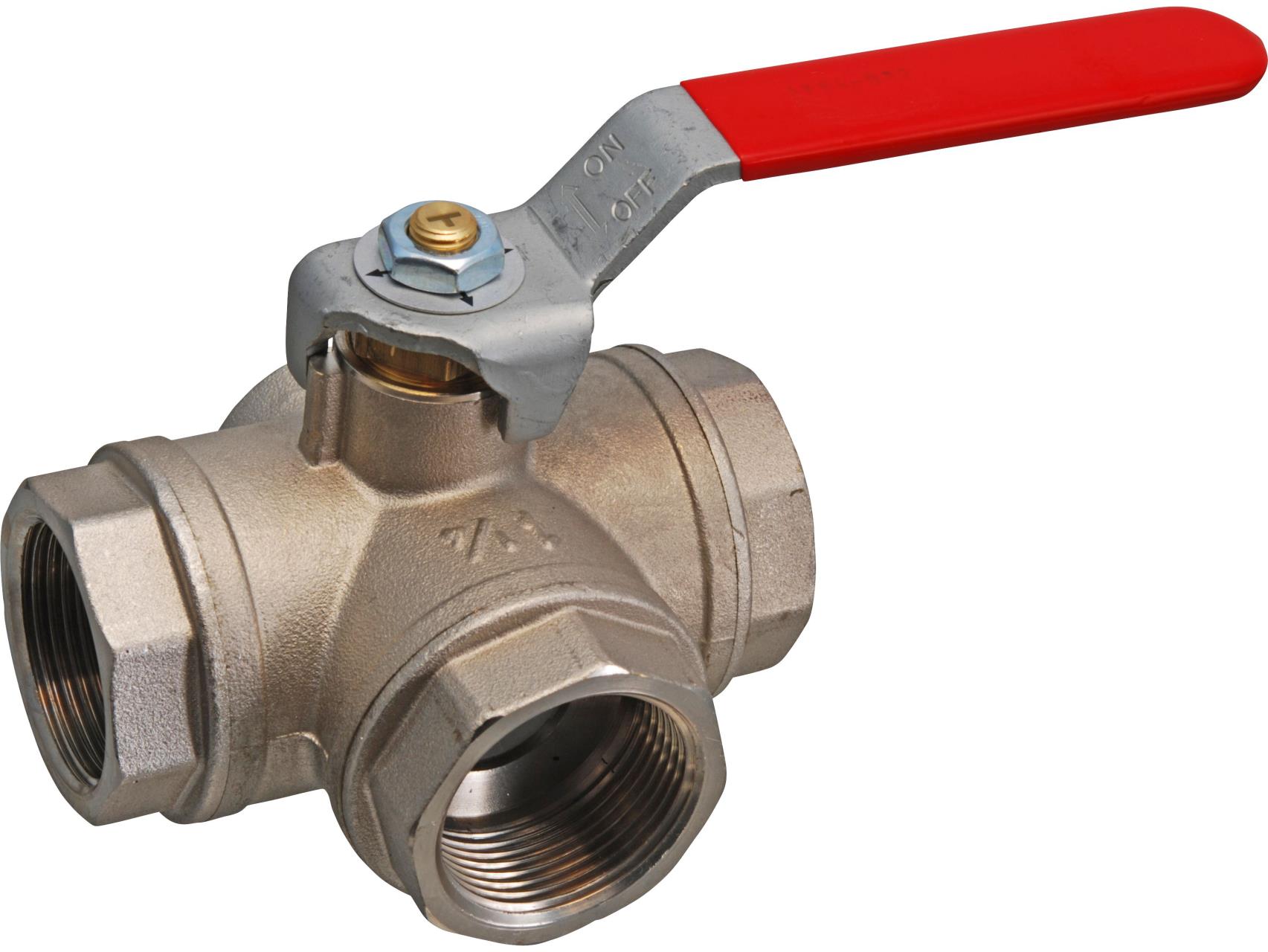

Characteristics:- ball with a T-hole- 3 internal threads- ball made of hard chrome-plated brass with PTFE sealed shell,- Nickel-plated brass housing, brass axle, lever made of steel with anti-corrosion coatingVarious switch positions are possible by changing the position of the lever.Thread type: BSPThread form: parallelThe thread sizes are nominal sizes, they do not indicate the thread diameter.

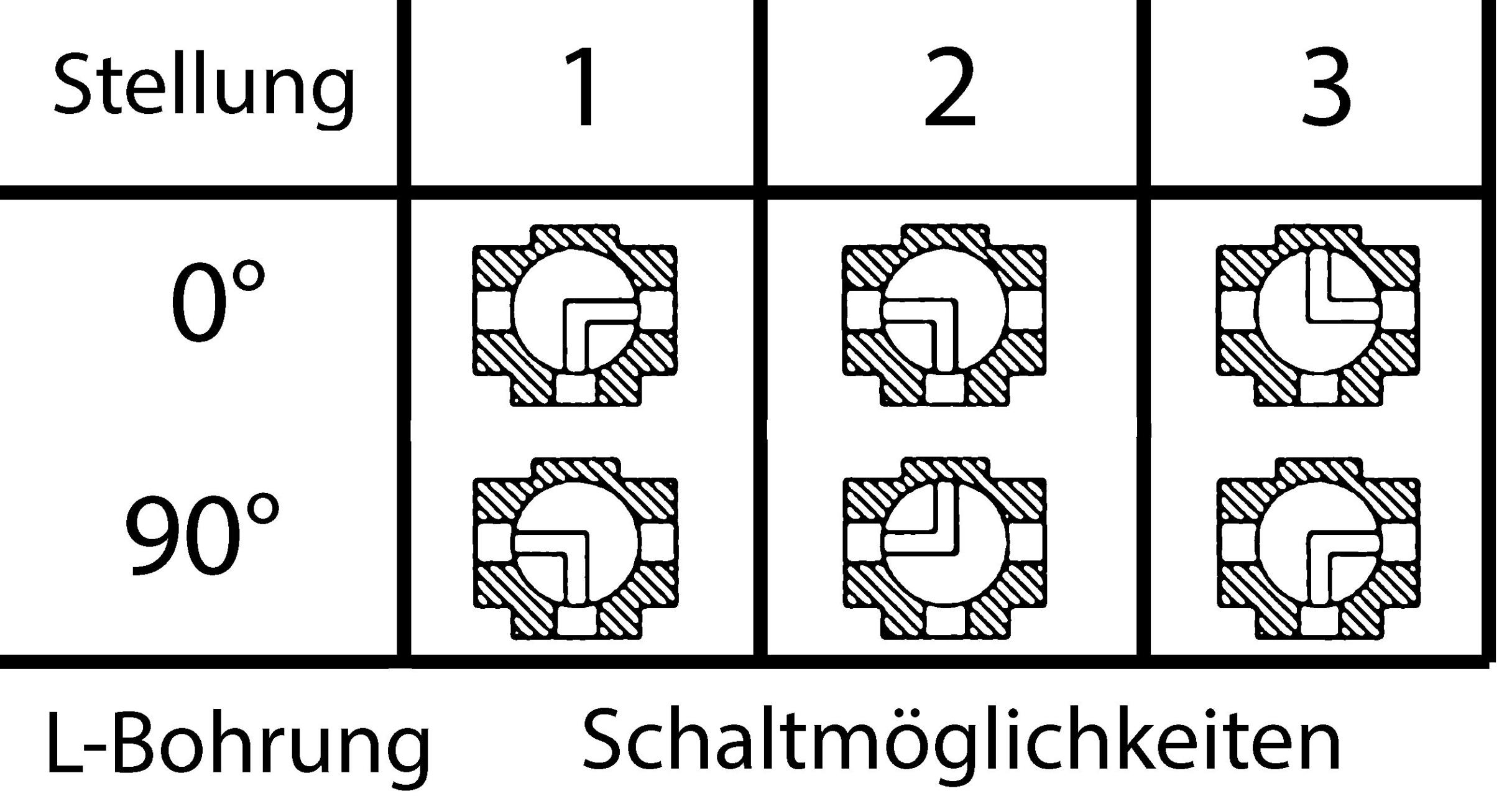

Characteristics:- ball with a L-hole- 3 internal threads,- ball made of hard chrome-plated brass with PTFE sealed shell,- nickel-plated brass housing, brass axle, lever made of steel with anti-corrosion coatingVarious switch positions are possible by changing the position of the lever.Thread type: BSPThread form: parallelThe thread sizes are nominal sizes, they do not indicate the thread diameter.

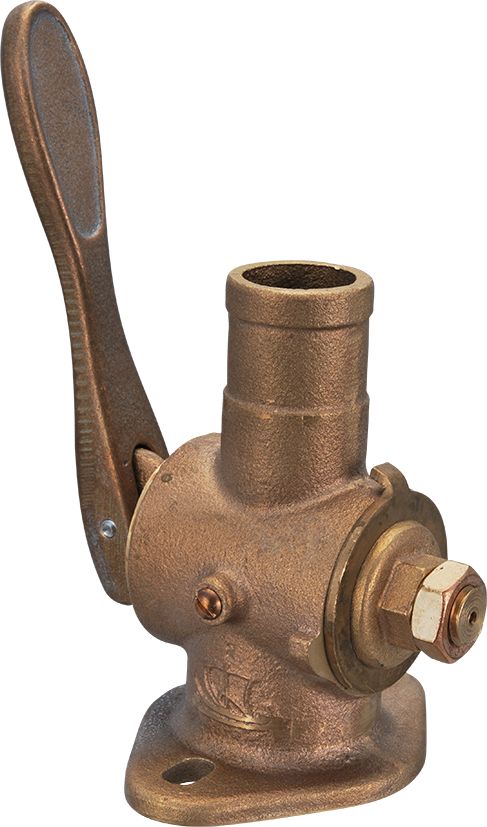

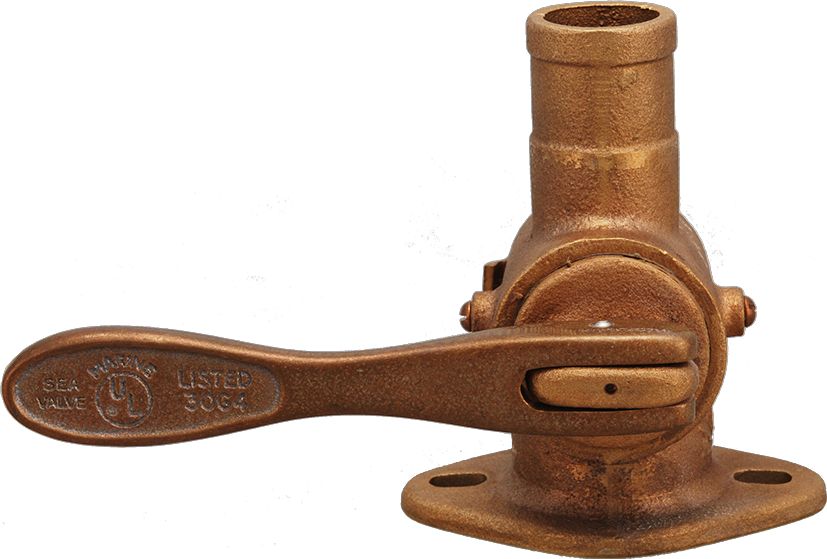

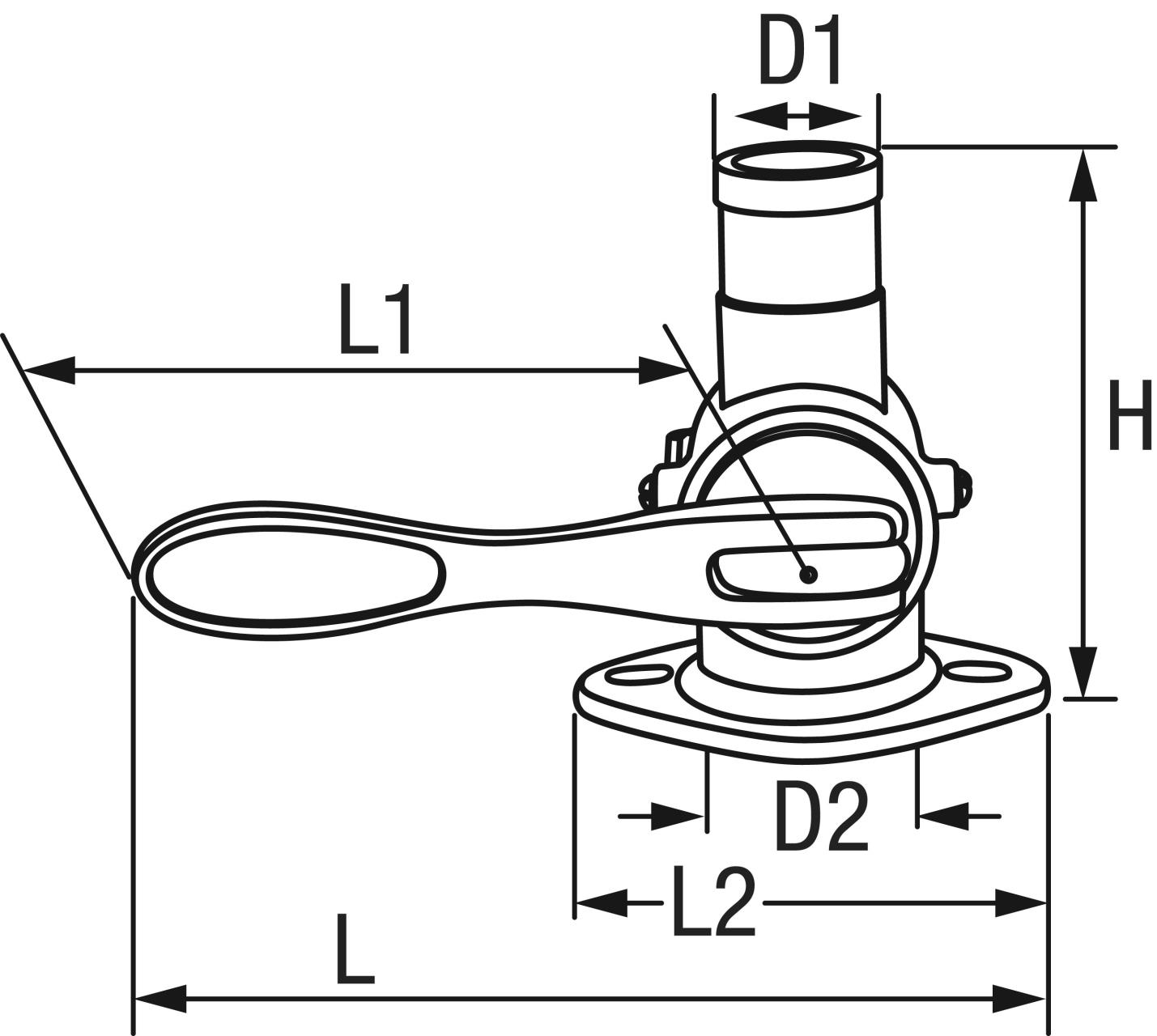

High-quality seacock with conical plug, the design is also known as tapered cone seacock. With hose connection on board.Made of bronze (seawater-resistant bronze alloy CB491K - CuSn5Zn5Pb5-B). Proven in classic yachting for decades.The seacock can be easily dismantled and reassembled for maintenance, cleaning and lubrication work, and two screws on the body allow the valve to be drained to protect it against freezing.Made by the American manufacturer SPARTAN, the valve is bolted with two screws directly to the hull or on a backing plate. A standard red bronze through-hull (not included) can then be screwed into the valve from the outside, ensuring a very safe and secure mount.The bottom of the valve is ground flat, cast gutters ensure good adhesion of the sealing material and a perfect seal.The bronze handle can turn 180°, which ensures that the seacock is fully closed. The closed position is visible on the handle.UL-Marine-Listing (USA).The matching through-hull must be ordered separately.

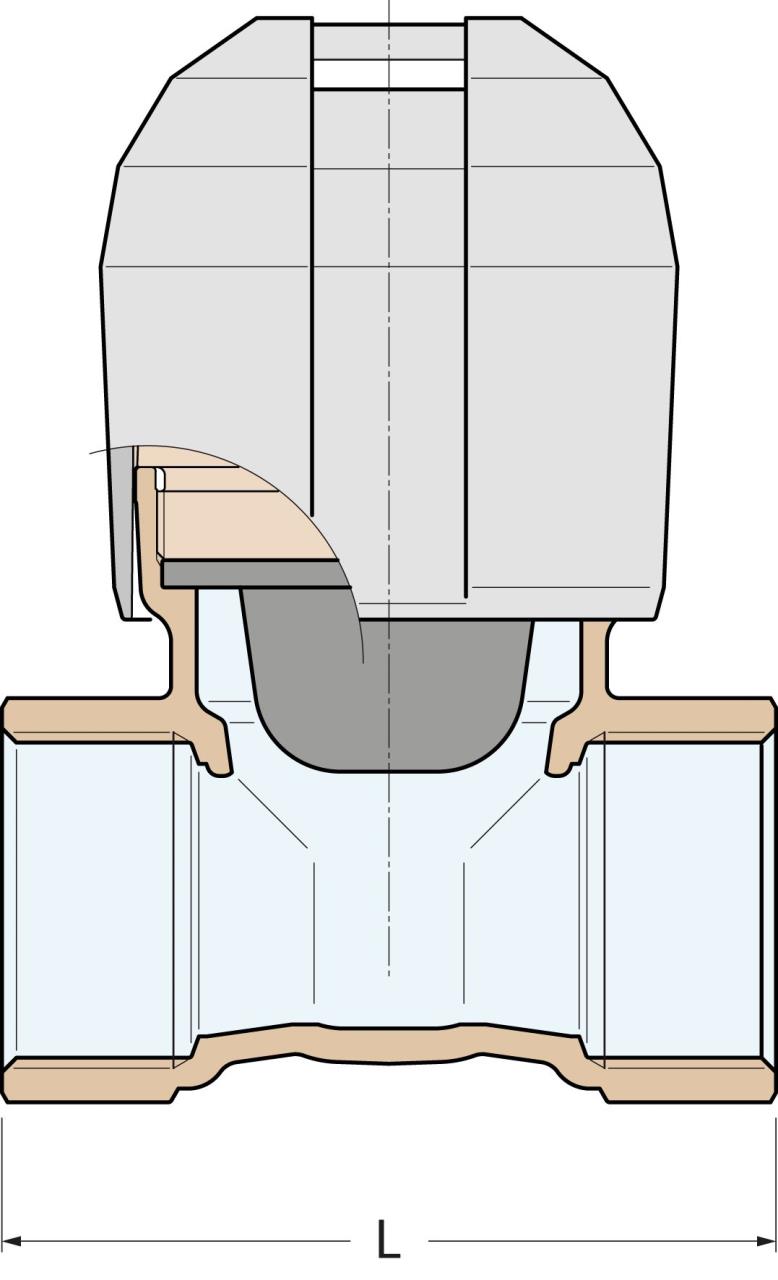

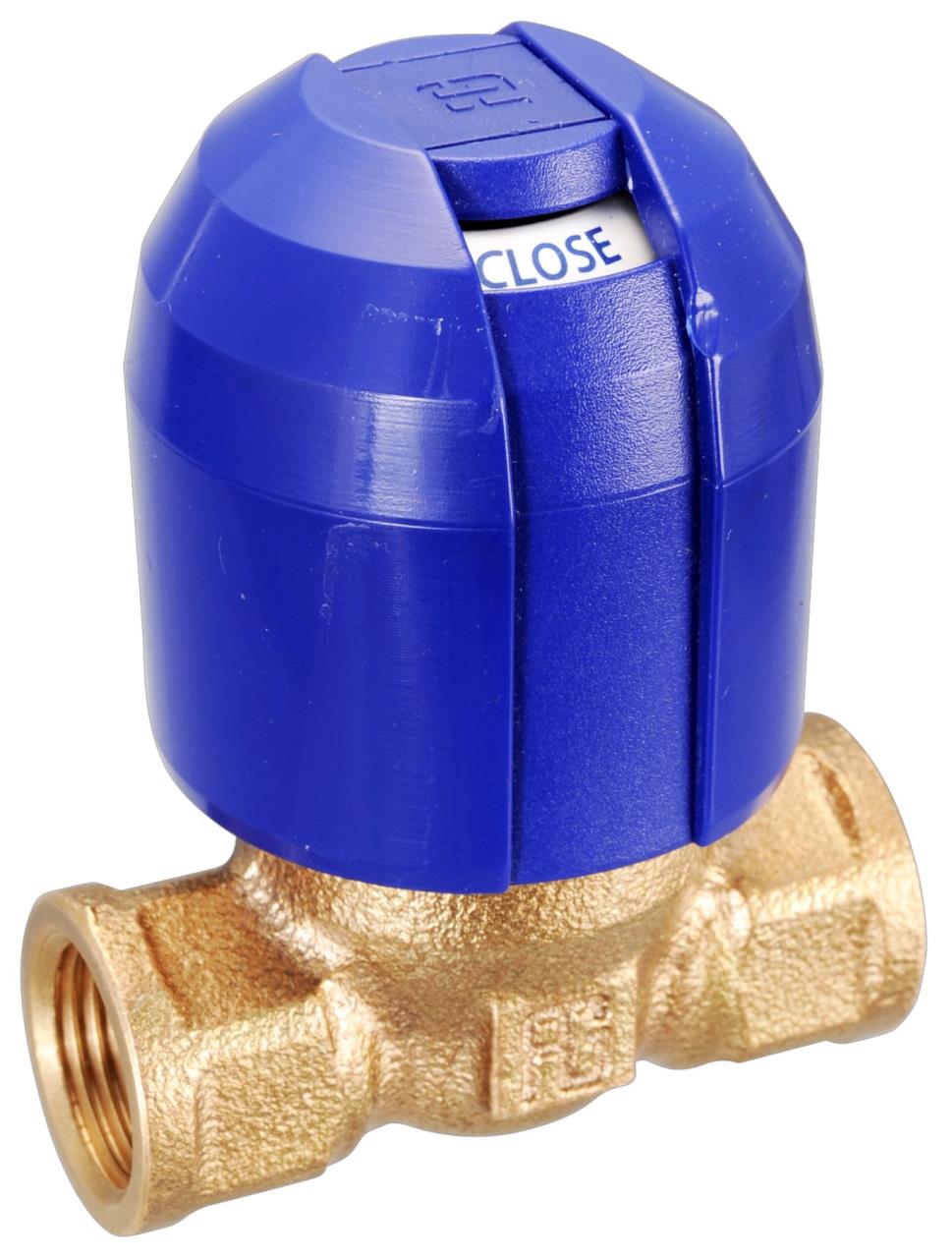

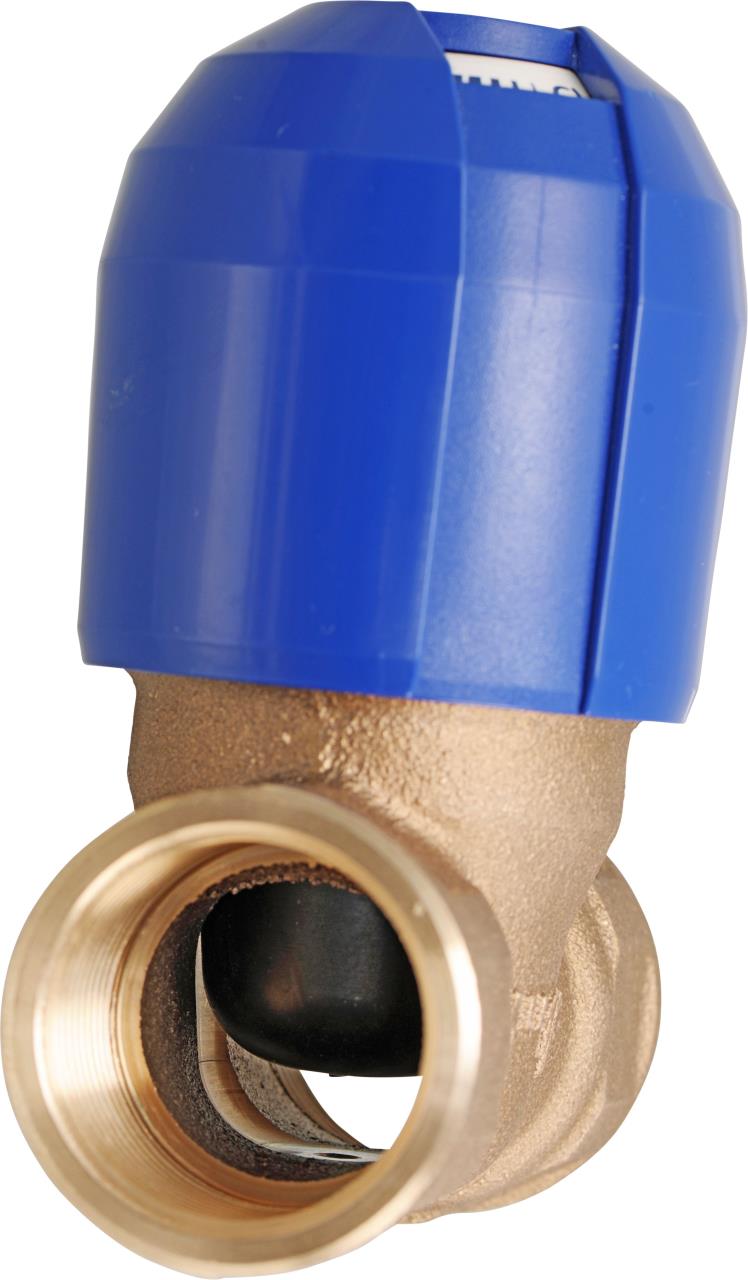

These valves, specially developed by the manufacturer GUIDI to meet the requirements of the marine industry, are an alternative to conventional ball valves or gate valves. Their design minimises the risk of corrosion and sticking or adhesion of the moving components and ensures long-term smooth operation.The housing is made of the seawater-resistant bronze alloy CC491K, chemically CuSn5Zn5Pb5-C. The passage is closed by a slightly flexible but rigid neoprene ball body that is moved into a guide. It is operated in a similar way to a gate valve by turning the compact blue plastic rotary cap. This has an open and closed indicator window so that the status of the valve can be recognised at a glance.The valve can be mounted in any position and offers full flow in both directions.Thread type: BSPThread form: parallelThe thread sizes are nominal sizes, they do not indicate the thread diameter.
Ball valve made from chromed brass (alloy CW617N - CuZn40Pb2).Full open diameter, inner threads according to ISO 228/1 on both sides.Hard-chromed ball with PTFE seals, brass shaft.Galvanized steel handle.Thread type: BSPThread form: parallelThe thread sizes are nominal sizes, they do not indicate the thread diameter.Also available with practical drainage plug as a frost protection mechanism. See similar products.

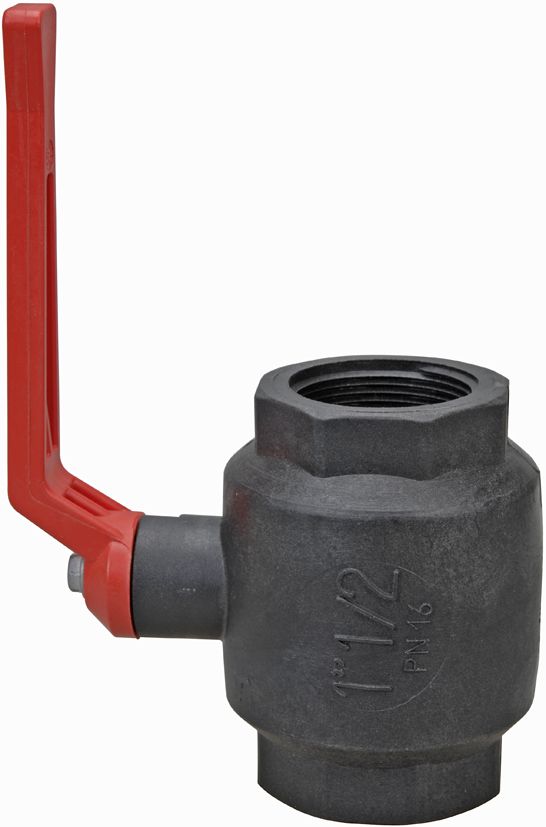

The corpus of this ball valve is manufactured in one piece; resulting in high mechanical sturdiness, strong resilience against black water and sea water and resistance to corrosion.Characteristics:full throughput,body polypropylene (PP) black,hard chromed brass ball (CW617N) with sealant shell from PTFE,handle made from red Nylon (PA),operating pressure PN16,temperature stability 0° bis 75° C.Thread type: BSPThread form: parallelThe thread sizes are nominal sizes, they do not indicate the thread diameter.

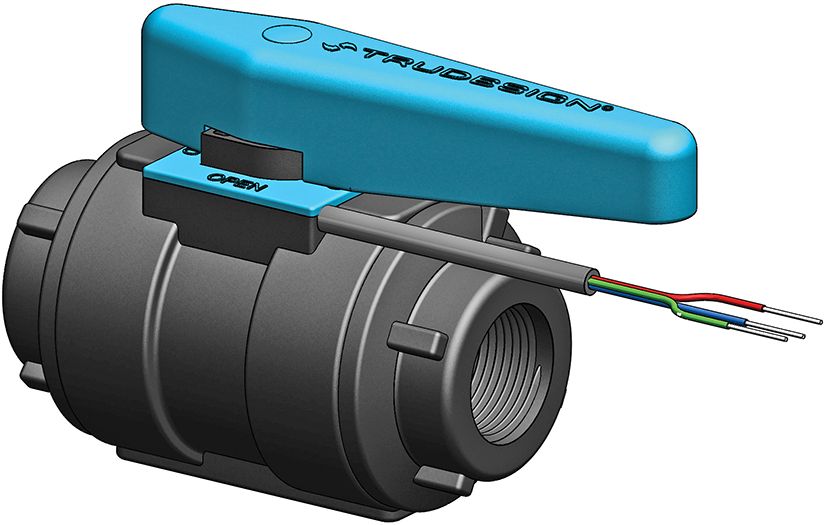

Seacock with sensors for electronic position indicator. In conjunction with the electronic display (see under accessories), the ball valve position can be conveniently monitored. The position monitoring circuit can also be used as part of a start interlock for motors or generators to ensure that they do not start without cooling water being available.

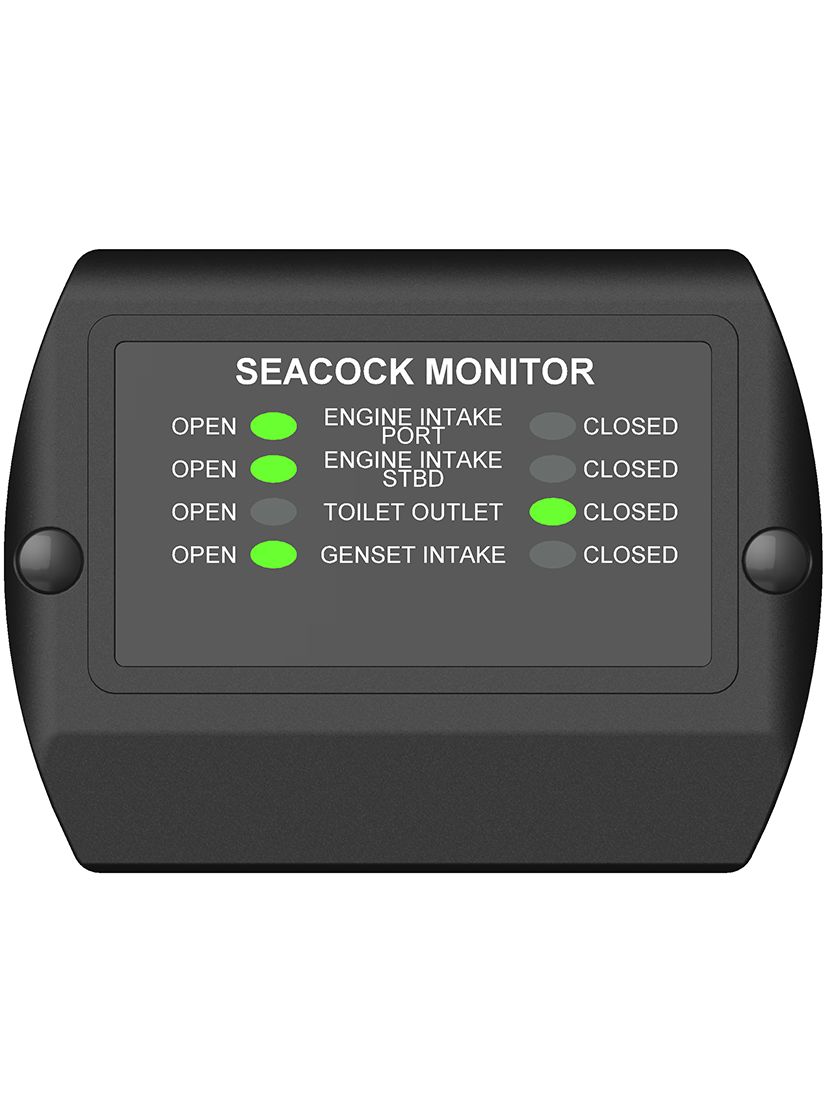

Monitoring panel for checking the lever positions of up to four corresponding TRUDESIGN ball valves (see similar products). The circuit can also be used as part of a start interlock for engines or generators to ensure that they do not start without cooling water being available.Supply voltage 12 Volt.

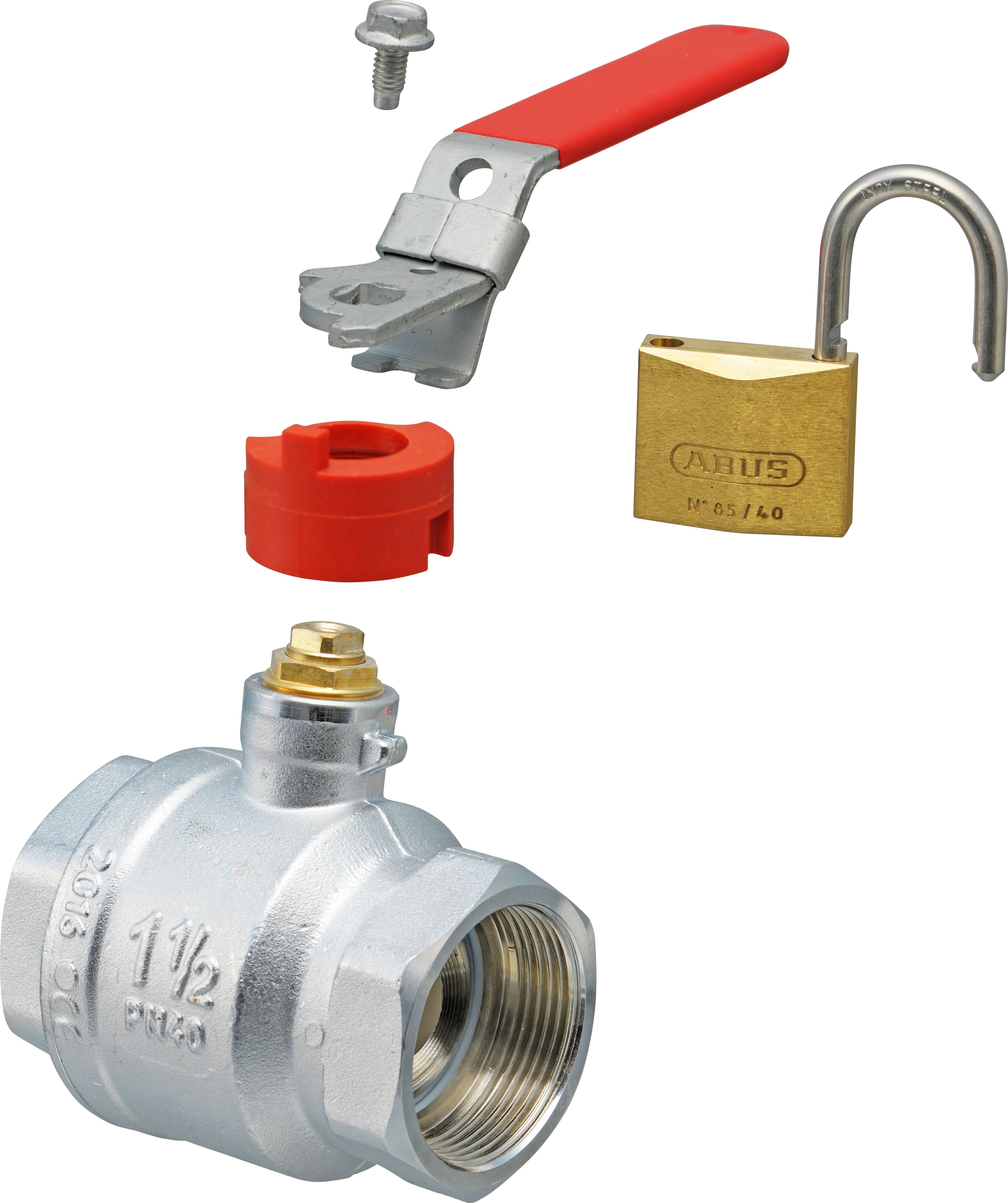

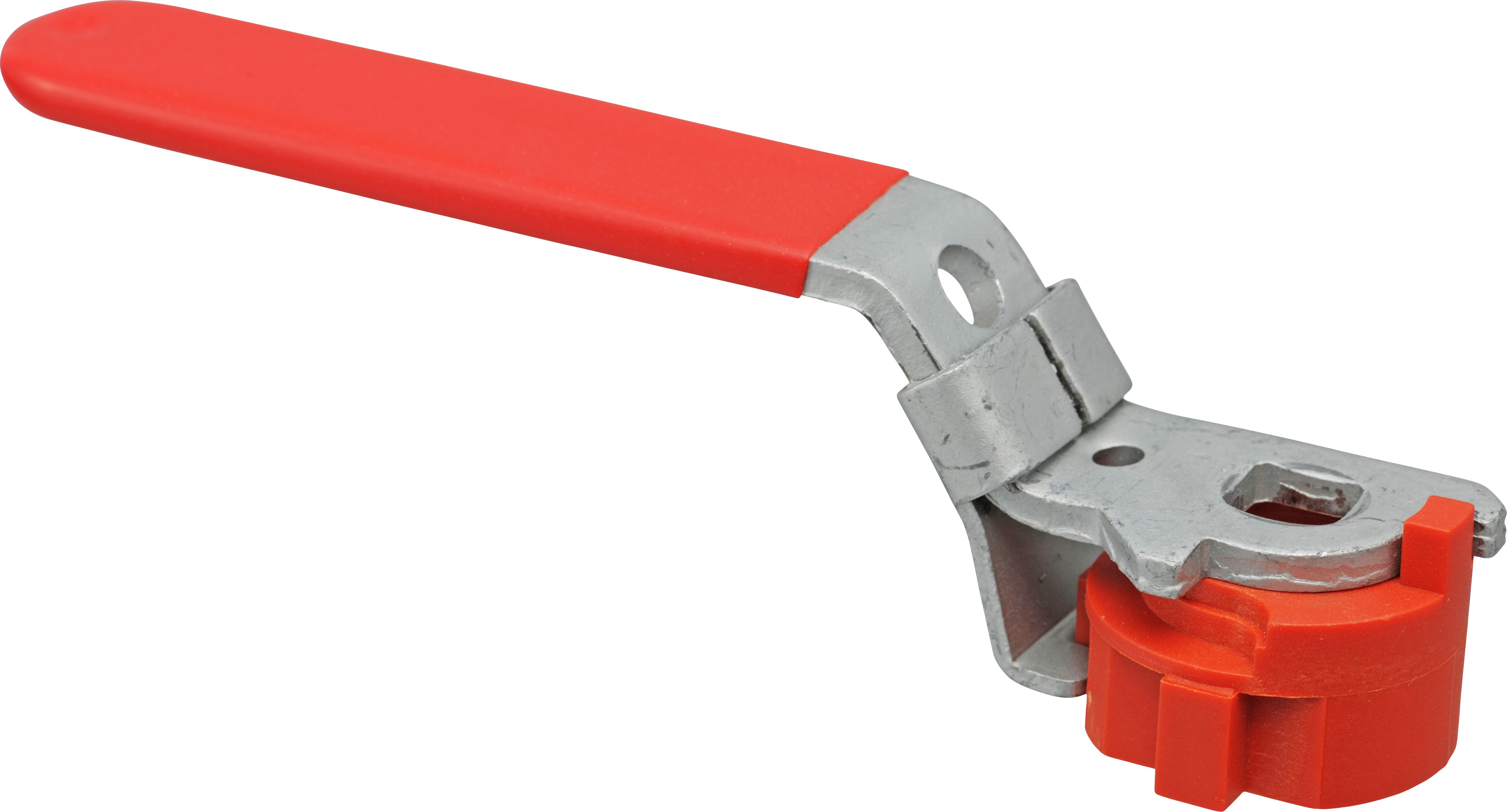

This valve lever can be blocked in open or closed position by means of a sliding latch. A drill hole in the lever allows a padlock to be inserted or a lead seal to be applied.That way, the latch cannot be moved and the ball valve is secured against unauthorised operation. Suitable for VIR ball valves made of gunmetal (bronze).Some near shore areas and inland areas are designated as "No-Discharge Zones" where the discharge of any onboard waste is strictly prohibited. Many of these areas require a secured waste retention system. This demand can be met with a lockable ball valve.This article fits to our bronze ball valves VIR.
