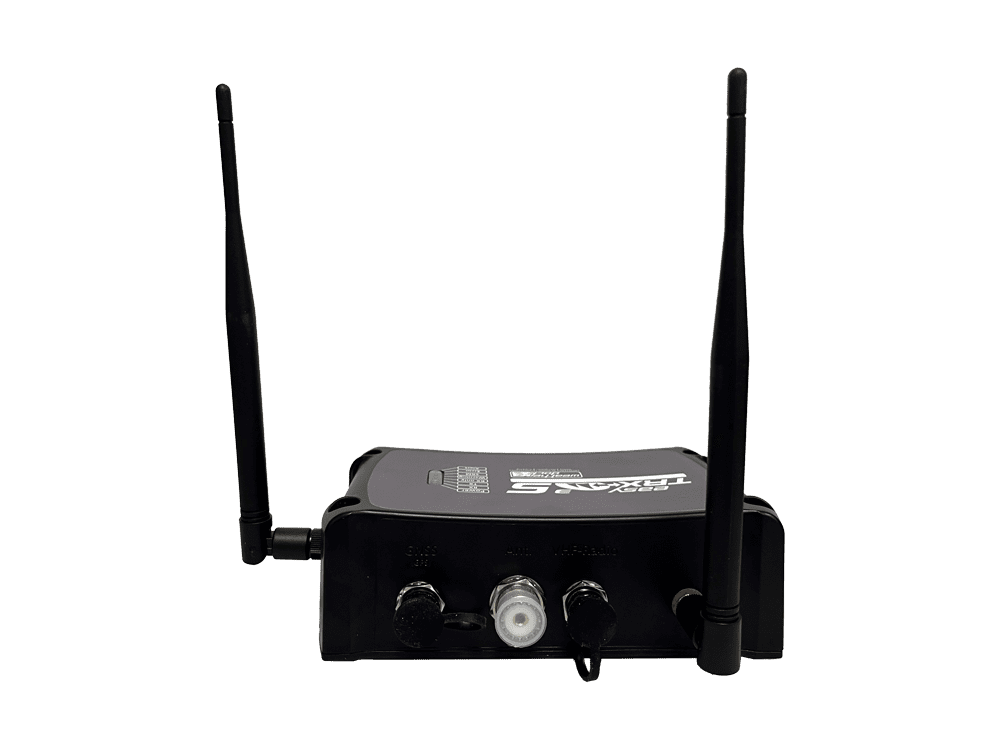

WEATHERDOCK easyTRX3S AIS transponder with WiFi and MeSense
3920-218 WEATHERDOCK AIS-Transponder easyTRX3-S ME SENSE / WIFI
3920-218 WEATHERDOCK AIS-Transponder easyTRX3-S WiFi und ME SENSE
3920-218 WEATHERDOCK AIS-Transponder easyTRX3-S WiFi und ME SENSE
3920-218, -219, -220 WEATHERDOCK AIS-Transponder easyTRX3-S Lieferumfang
WEATHERDOCK easyTRX3S AIS transponder with WiFi and MeSense
from €1,044.00*
€1,044.00*
Prices incl. VAT plus shipping costs
The easyTRX3S is the further development of the easyTRX3 AIS Class B transponder with SOTDMA technology and 5 watt transmission power. WiFi and ME SENSE Relay for smart boat monitoring have been added to the transponder.
With the standard WiFi module, all AIS data received via the NMEA network can be forwarded to a wirelessly connected end device such as a tablet or smartphone or to a chart plotter.
Thanks to its Bluetooth functionality, the easyTRX3S can also serve as the heart of the ME SENSE yacht monitoring system. The data from up to 20 sensors and 10 actuators is transmitted to the relay via Bluetooth. From there, it is transmitted to the ME SENSE app via the marina's Wi-Fi network or your own LTE router. This allows the yacht itself to be monitored conveniently from home.
SOTDMA technology
Based on AIS Class B SOTDMA (Self Organized Time Division Multiple Access) technology, the easyTRX3S transmits with higher (5 watts) transmission power and priority. The transmission slots for the next four transmissions are reserved automatically. Even in areas with high traffic volumes, the easyTRX3S is always able to transmit position reports, as SOTDMA has priority over regular AIS Class B devices with CSTDMA (Carrier Sense Time Division Multiple Access). The higher transmission rate improves the visibility of your own AIS position reports on AIS-capable systems.
Integrated GPS antenna and active VHF antenna splitter
The integrated GPS antenna increases the independence of mounting the easyTRX3S device on board. On GRP and wooden yachts, only a power connection and a VHF connection are required. On steel yachts, the external GPS antenna available as an accessory improves reception. The integrated, active VHF antenna splitter ensures that the same antenna can be used for VHF radio and AIS. The preamplifier reduces the physical loss to a minimum.
Features
- Internationally certified AIS Class B transponder
- SOTDMA (time slot method) technology with 5 watts of radiated transmission power
- Faster transmission intervals (depending on the speed of the vessel)
- Complies with the new international standard IEC62287-2
- CPA alarm & anchor alarm
- Internal memory for recording travel data (black box)
- Configuration of the device with USB power supply possible
- Internal data memory can be read out with USB power supply
- Integrated WiFi
- Integrated antenna splitter
- Integrated GPS antenna
- Connections: NMEA2000, NMEA0183 and USB
- Water-, weather-, shock- and vibration-resistant, handy housing
- IoT ME SENSE yacht monitoring

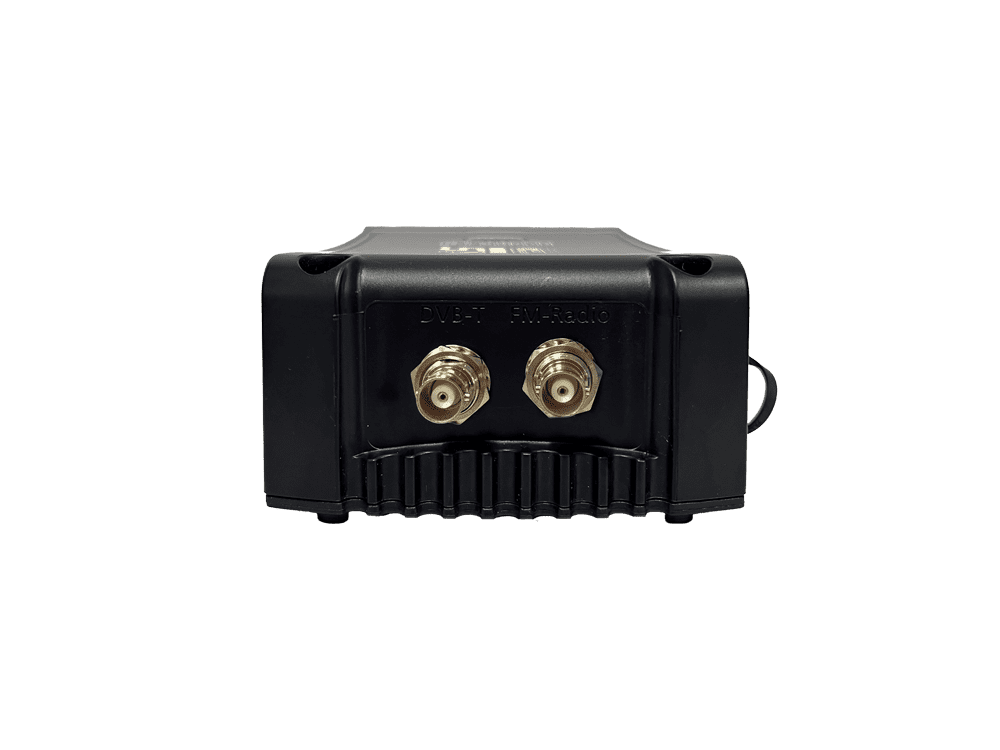

- Alternatively available with additional LAN or DVB-T/FM radio module
Technical data
- 1 channel VHF transmitter
- 2-channel VHF receiver (AIS frequencies: 161.975 MHz and 162.025 MHz)
- 72-channel GNSS/GPS receiver
- Channel sensitivity: = -112 dBm
- Protection class: IP67 (dust and waterproof against temporary submersion)
- Intended for installation below deck
- Operating temperature: -10°C to + 55°C
- NMEA output message: VDM
- Transmission power: 5 W
- Operating voltage: 9 - 32 volts
- Dimensions (L/W/H): 190 x 135 x 60 mm
- Weight: approx. 700 g
Scope of delivery
- easyTRX3S transponder
- easyTRX3S connection cable (approx. 2 m)
- Connection cable easyTRX3S to VHF radiotelephone (approx. 1 m)
- USB connection cable (approx. 1.8 m)
- Quick guide (the detailed user manual can be downloaded from the internal memory)
- Programming software for Windows PC and Apple Mac on internal memory
- WiFi antennas
Approvals
- Approved by BSH
- AIS according to IEC 62287-2:2017
- Environment according to IEC 60945:2002
- GPS according to IEC 61108-2003 and EN 301843-1:2004
- Product safety according to EN 60950-1 ITU-R M.1371-5
