Silva Sweden AB Compasses

In 1928, the Swedish mechanical engineer Gunnar Tillander invented the first compass on a base plate that was suitable for orienteering. The three brothers Alvar, Arvid and Björn Kjellström (later Swedish champion in ski orienteering) supported him in the development of this new type of compass for terrestrial navigation, which was equipped with a liquid-damped magnetised needle and a protractor built into a transparent base plate.

Founded in 1932 by the four Swedes, Silva Sweden AB has sold more than 25 million compasses to date. In addition to its hand-held compasses, the company has long since also offered boat compasses, binoculars and outdoor equipment such as headlamps.

The book ‘Be expert with map and compass’, published by Björn Kjellström in 1955, about off-road navigation and orienteering, has been translated into several languages. The English version is still available today and has sold more than 500,000 copies.

SILVA 70UN / 70UNE Universal compass

Practical small compass SILVA 70UN is a universal compass that can be used in its holder as a steering compass or as a hand bearing compass. This compass can be mounted in any position, even on the ceiling. It can be easily detached from its holder, e.g. to use it as a bearing compass or to store it safely.The yellow, curved steering line allows quick and accurate reading at a glance without parallax errors.SILVA 70UN is ideal for boats small boats, kayaks, dinghies, canoes and more - when dropped in the water it floats!The Tpy 70 UNE also has a battery light integrated in the handle.Apparent rose diameter 70 mm.The SILVA quality ensures durability and excellent readability; the capsule bowl is made from clear and scratch resistant acrylic. The combination of a sapphire jewel bearing and a hardened steel pivot minimizes friction, which in turn gives rapid and accurate movements. Silva marine compasses have a no-spin compass card is designed for perfect dampening and exact reading. You can trust that even when your boat is exposed to rough seas the gimballed suspension system makes sure the functionality is never disturbed hence you will always be able to read the compass accurately.

From €89.90 *

Details

Compass SILVA 125B/H with heelmeter

The large compass SILVA 125B/H can be installed in the bulkhead, the compass capsule protrudes only 32 mm into the cockpit. In addition, the compass is equipped with a scale for the angle of heel and a built-in red light. It is ideal for large sized motor- or sailboats.The compass is shockproof and suitable for all speed ranges, the forward and backward heel is unlimited. The maximum heeling angle is 45°. With its yellow gimbaled steering lines and damped 5° compass rose, it is very easy to read.With the magnet set 3640-310 (see accessories for SILVA boat compasses) the compass can be compensated.Apparent rose diameter 125 mm.The SILVA quality ensures durability and excellent readability; the capsule bowl is made from clear and scratch resistant acrylic. The combination of a sapphire jewel bearing and a hardened steel pivot minimizes friction, which in turn gives rapid and accurate movements. Silva marine compasses have a no-spin compass card is designed for perfect dampening and exact reading. You can trust that even when your boat is exposed to rough seas the gimballed suspension system makes sure the functionality is never disturbed hence you will always be able to read the compass accurately.

€249.00 *

Details

SILVA 70P bulkhead mounting compass

70P is a bulkhead mount compass designed for yachtsmen that demand absolute accuracy and a steady card in all conditions.The compass handles unlimited slope of the keel line and a 30° heeling angle. The curved lubber line enables swift and clear reading at a glance without parallax errors. With a main steering scale on the horizontal part and direct reading on the vertical edge.70P is ideal for boats with a sitting as well as a standing helmsman. It can be mounted at most angles and its compact size makes it suitable for smaller boats.The SILVA quality ensures durability and excellent readability; the capsule bowl is made from clear and scratch resistant acrylic. The combination of a sapphire jewel bearing and a hardened steel pivot minimizes friction, which in turn gives rapid and accurate movements. Silva marine compasses have a no-spin compass card is designed for perfect dampening and exact reading. You can trust that even when your boat is exposed to rough seas the gimballed suspension system makes sure the functionality is never disturbed hence you will always be able to read the compass accurately.

€95.90 *

Details

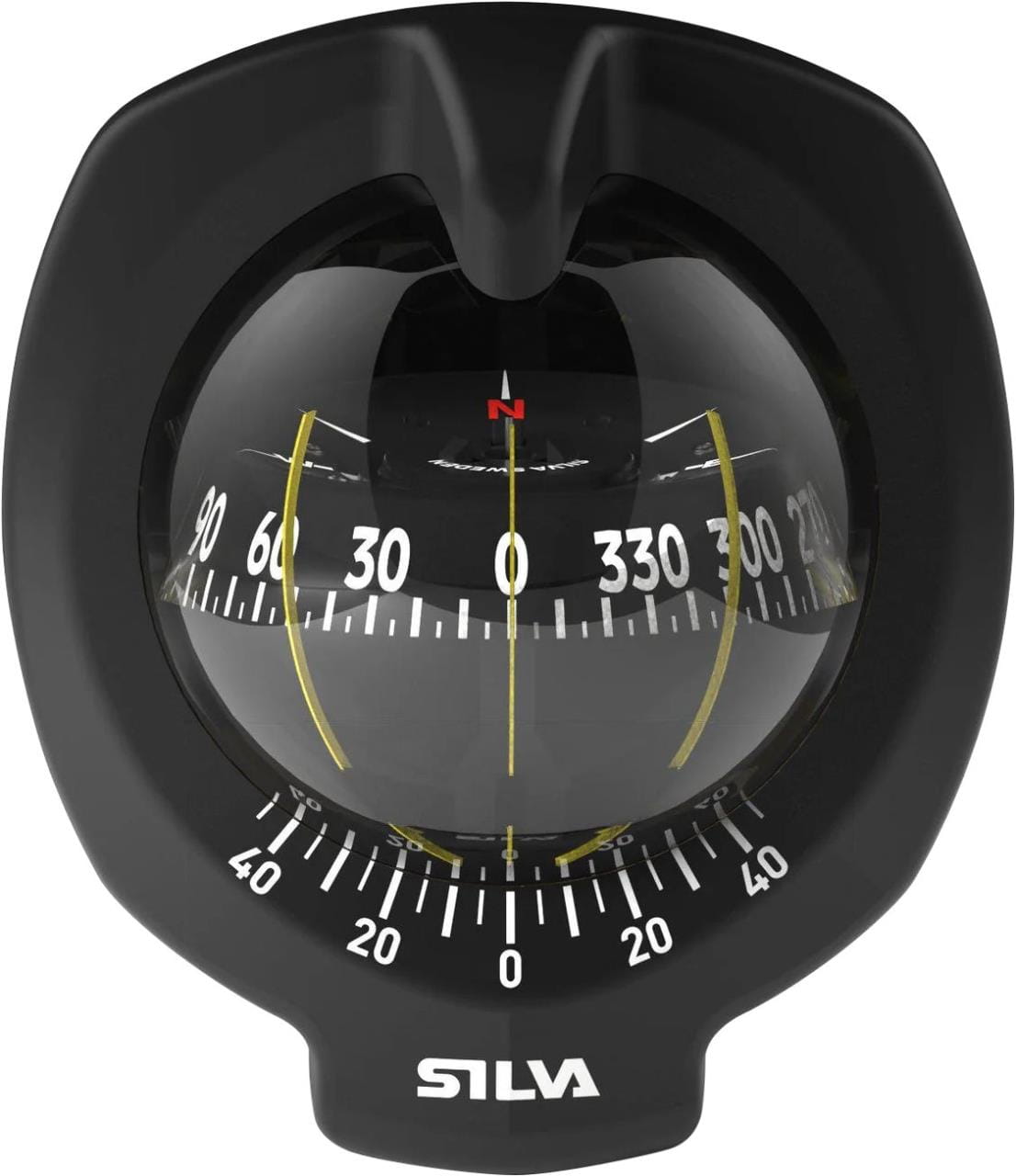

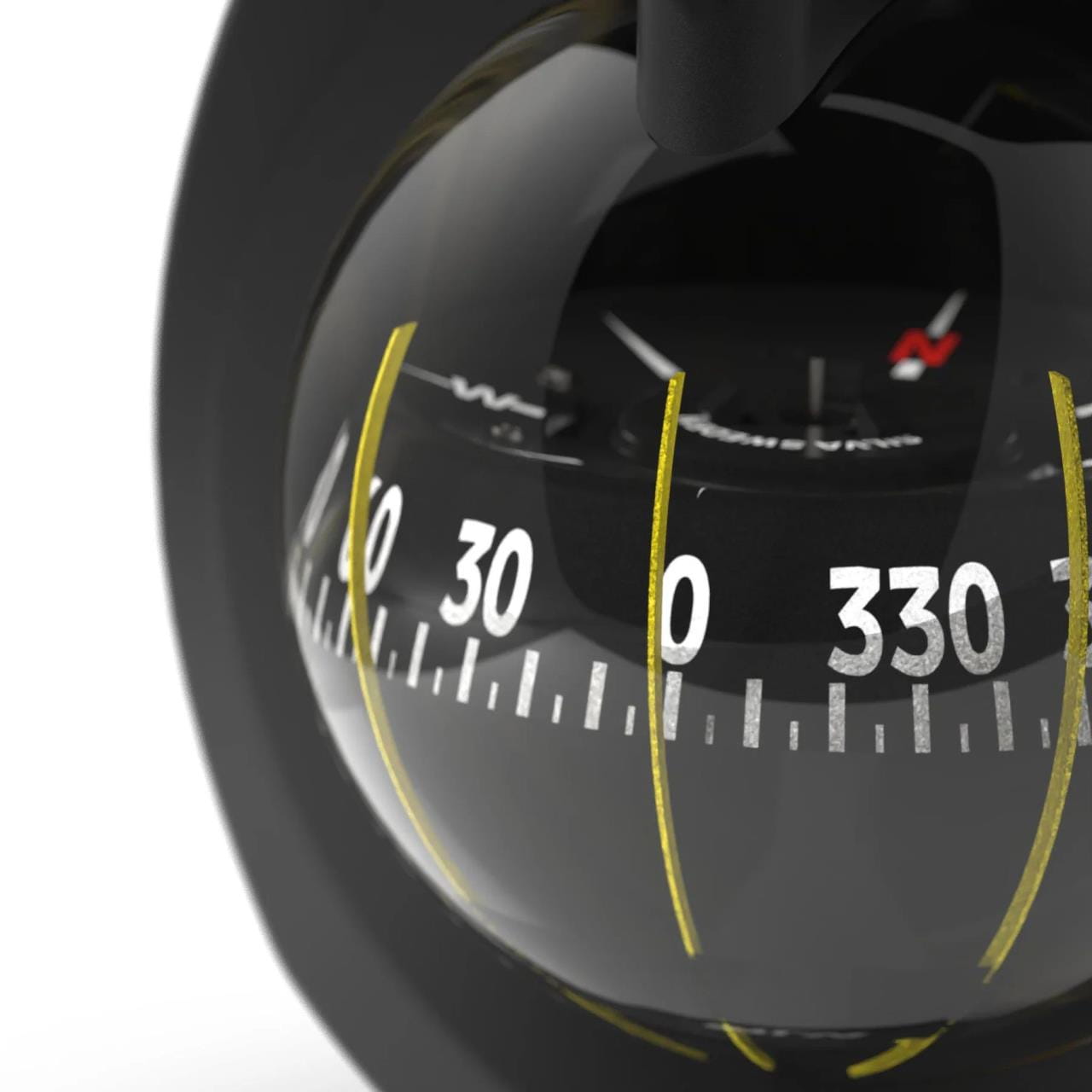

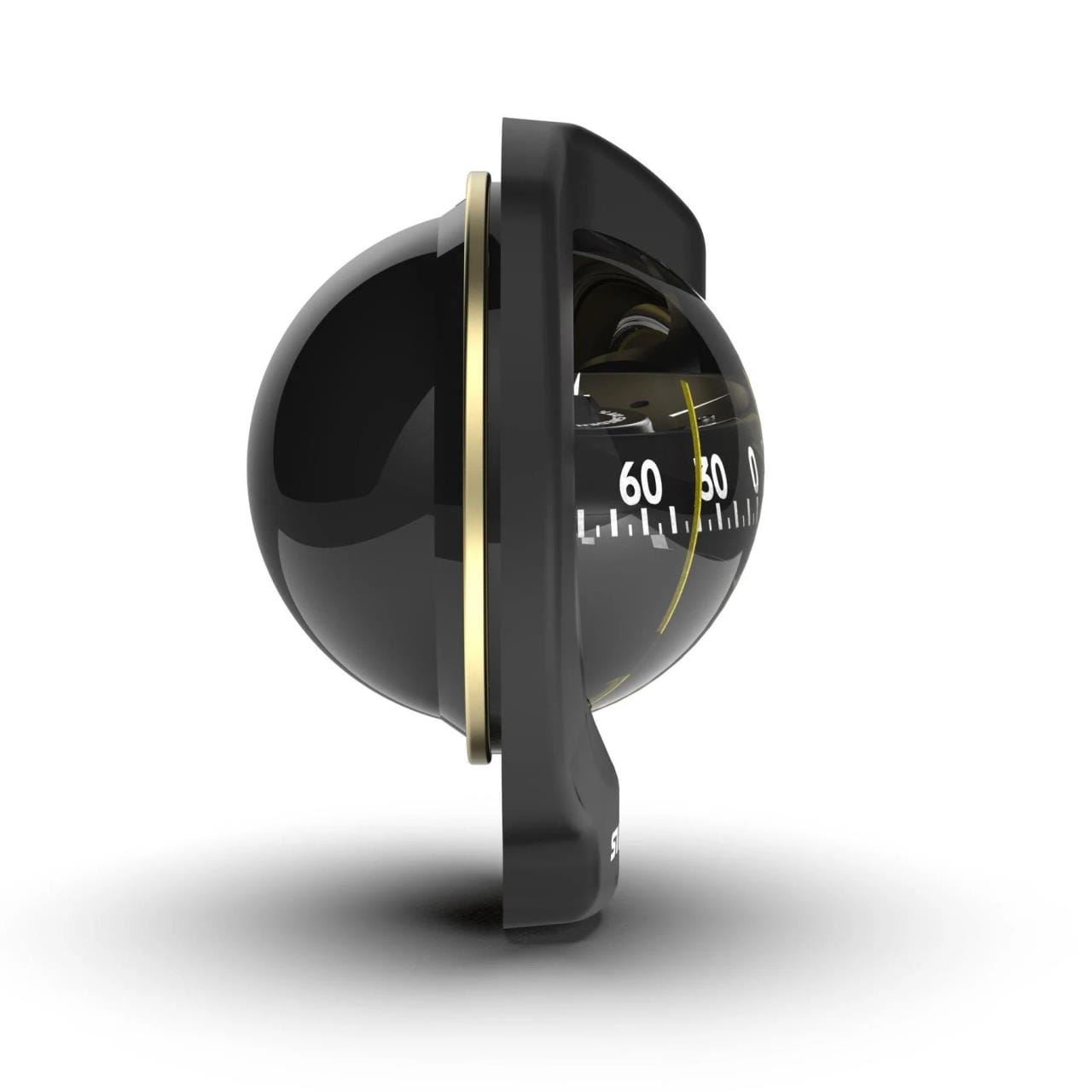

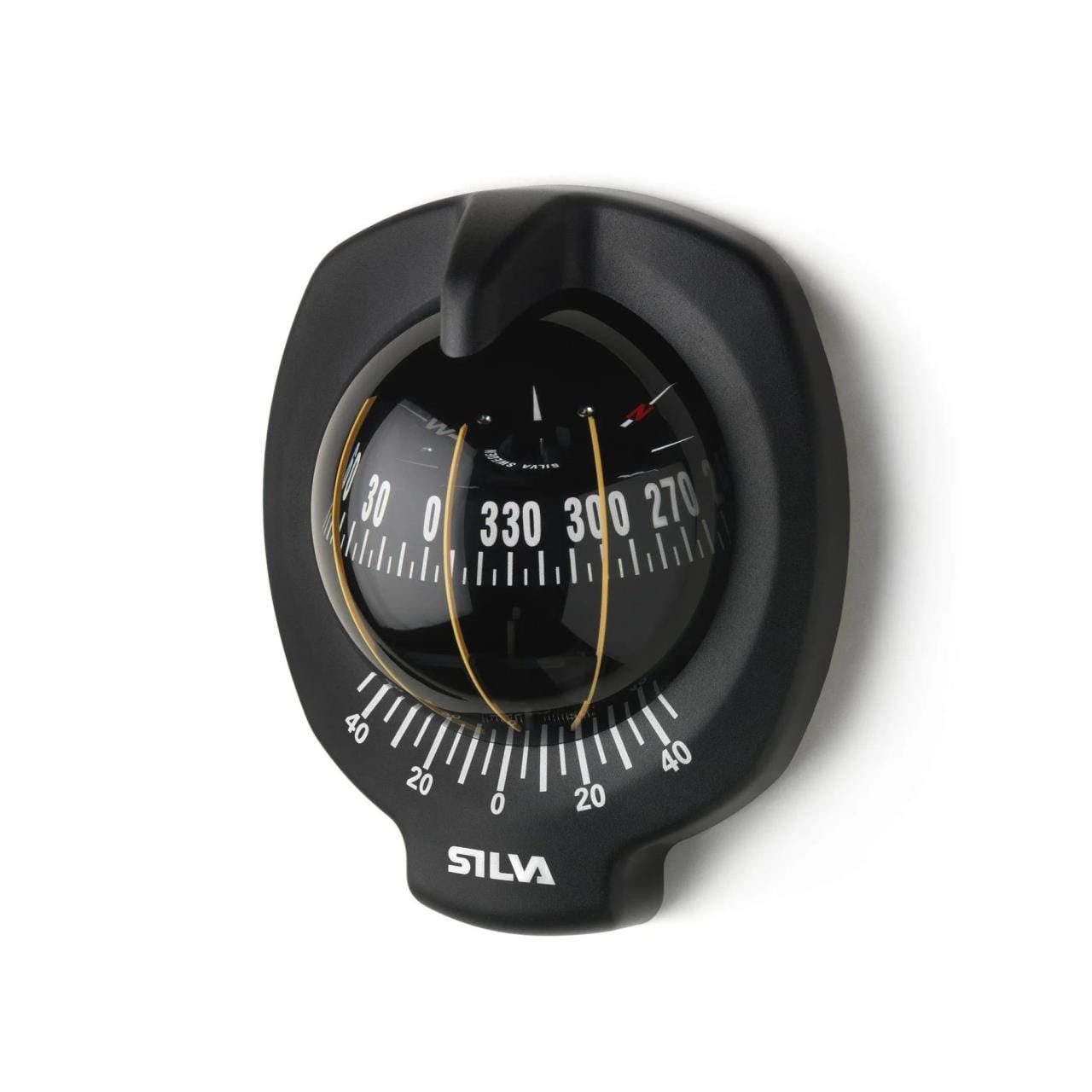

SILVA 100B/H bulkhead mounting compass

The compass SILVA 100B/H can be installed in the bulkhead, the compass capsule protrudes only 18 mm into the cockpit. In addition, the compass is equipped with a scale for the angle of heel and a built-in red light. It is ideal for small to medium sized sailboats. The compass is shockproof and suitable for all speed ranges, the forward and backward heel is unlimited. The maximum heeling angle is 45°. With its yellow gimbaled steering lines and damped 5° compass rose, it is very easy to read.Apparent rose diameter 100 mm.The SILVA quality ensures durability and excellent readability; the capsule bowl is made from clear and scratch resistant acrylic. The combination of a sapphire jewel bearing and a hardened steel pivot minimizes friction, which in turn gives rapid and accurate movements. Silva marine compasses have a no-spin compass card is designed for perfect dampening and exact reading. You can trust that even when your boat is exposed to rough seas the gimballed suspension system makes sure the functionality is never disturbed hence you will always be able to read the compass accurately.

€174.90 *

Details

SILVA 100BC Surface-mounted compass

100BC is a front reading compass with a solid bracket that enables various mounting alternatives, including on the headlining. It has a main steering scale on the horizontal part of the compass rose and direct reading on the vertical edge. This makes the compass ideal for boats with a sitting as well as a standing helmsman. The integrated illumination makes night navigation easier. The built-in compensator allows you to adjust the compass if it is disturbed by a magnetic deviation. Apperant card diameter 100 mm.

€194.50 *

Details

SILVA 100NBC/FBC Compass

The SILVA 100NBC compass with its solid bracket permits various mounting alternatives. The 100NBC has yellow 45° gimbal-mounted steerage markers, 5° twin dials and damped compass rose (apparent card diameter 100 mm).With Illumination,built-in compensation and visor.

€204.00 *

Details

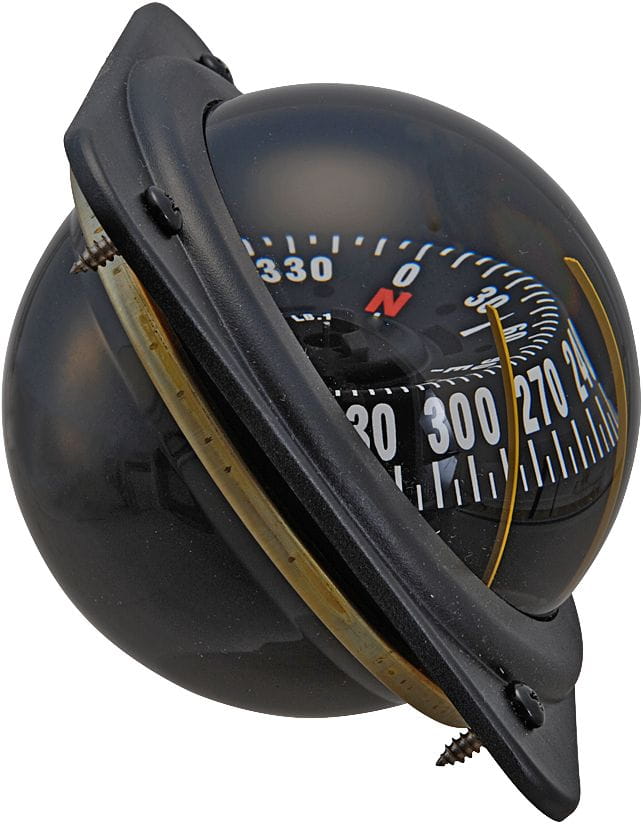

SILVA 70NBC/FBC Compass

Well-known and proven globe compass from SILVA of Sweden with many advantages:Clear, easy to read 5° compass rose, sapphire bearing, damped and individually balanced with ring magnet and spring suspension. The sphere is made of scratch-resistant acrylic glass, the case of black plastic.he gimbal system allows heeling up to 30°.Yellow steering marks and 12 volt lighting ensure good readability.Rose diameter 70 mm.Two different mounting options are included, allowing the compass to be mounted either as a surface mount compass in a bracket with multiple angle settings, or as a flush mount compass in the bulkhead.The compass is suitable for all speed ranges, for sailing and motor yachts. It is shockproof and has unlimited forward and backward tilt.The compass SILVA 70NBC is supplied with visor, holding lines and with magnet set (compensator).

€159.00 *

Details

SILVA 85 dinghy superstructure compass

The SILVA 85 is a rugged compass for sailing dinghy.The heading can be adjusted on the rotating and labelled outer dial.One black dial (with white numbers) and one white dia (with black numbers) is supplied.The compass is fitted without large holes flush on the deck, frequently on both sides of the boat.

€89.00 *

Details

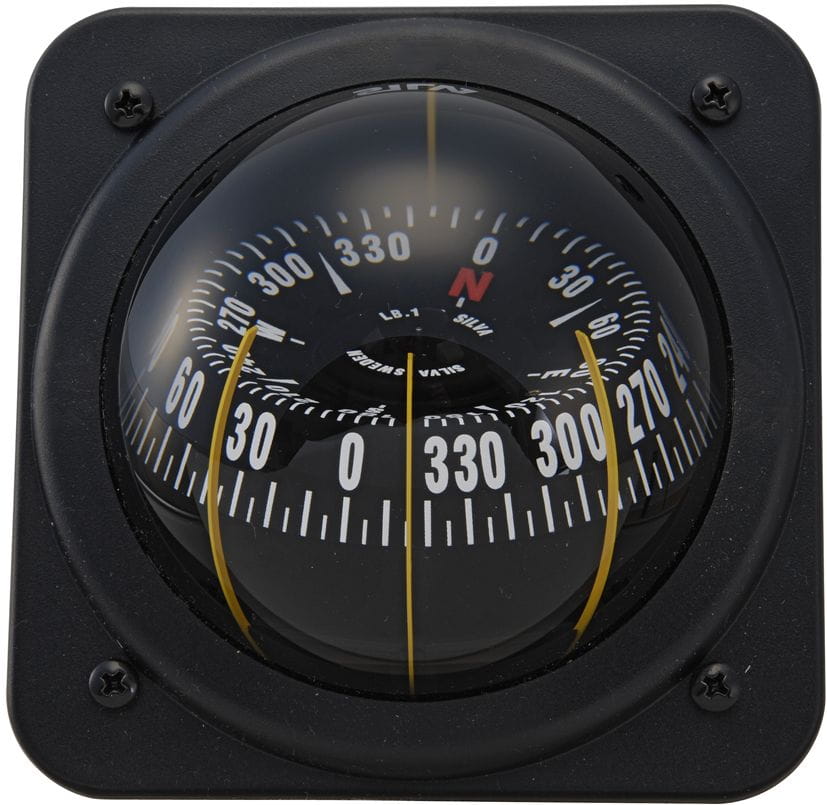

Compass SILVA 100P

100P is a bulkhead-mounted compass designed for sailboats and yachtsmen that demand absolute accuracy, a steady card in all conditions and high heeling angles. It is suitable for mast-mounting thanks to front reading, 30° heeling angle and three lubber lines for multi-angle reading. The main steering scale on the horizontal part and direct reading on the vertical edge make the 100P ideal for boats with a sitting as well as a standing helmsman. With its compact size, 100P will it fit in most spaces and boats.Apperant card diameter 100 mm.The SILVA quality ensures durability and excellent readability; the capsule bowl is made from clear and scratch resistant acrylic. The combination of a sapphire jewel bearing and a hardened steel pivot minimizes friction, which in turn gives rapid and accurate movements. Silva marine compasses have a no-spin compass card is designed for perfect dampening and exact reading. You can trust that even when your boat is exposed to rough seas the gimballed suspension system makes sure the functionality is never disturbed hence you will always be able to read the compass accurately.

€139.90 *

Details

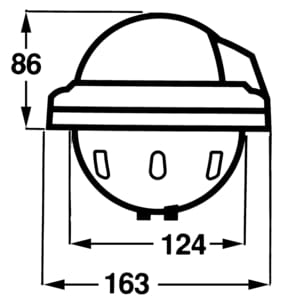

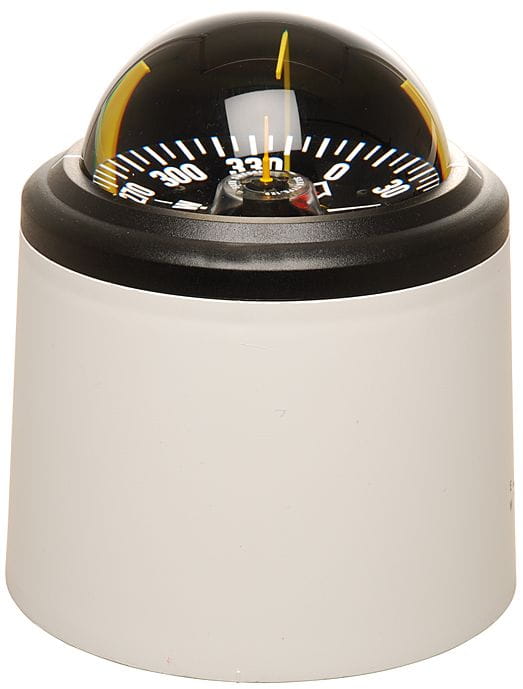

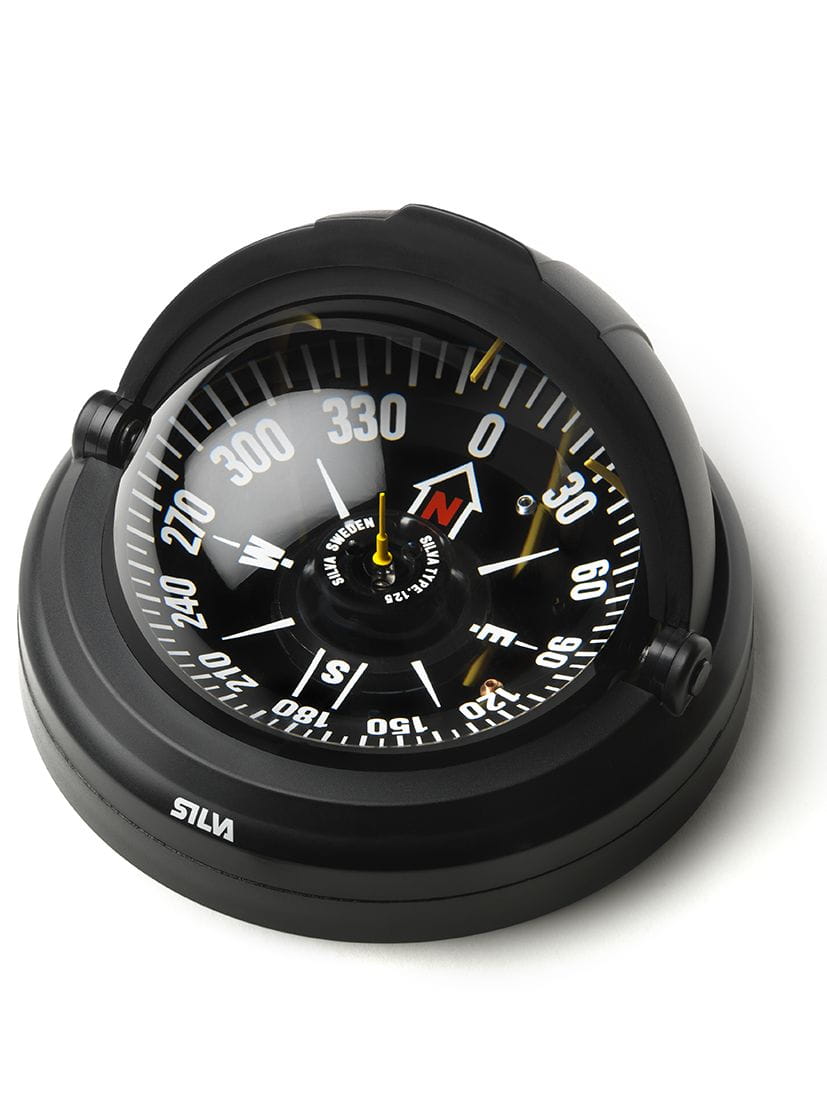

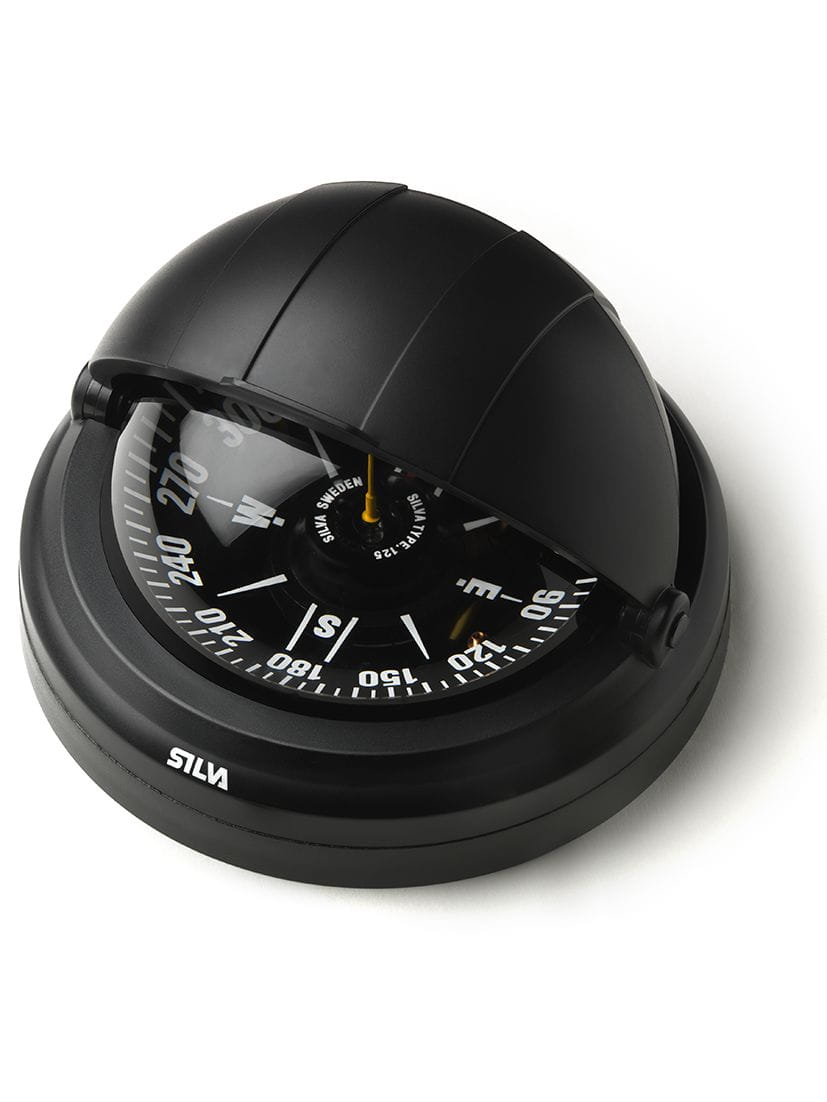

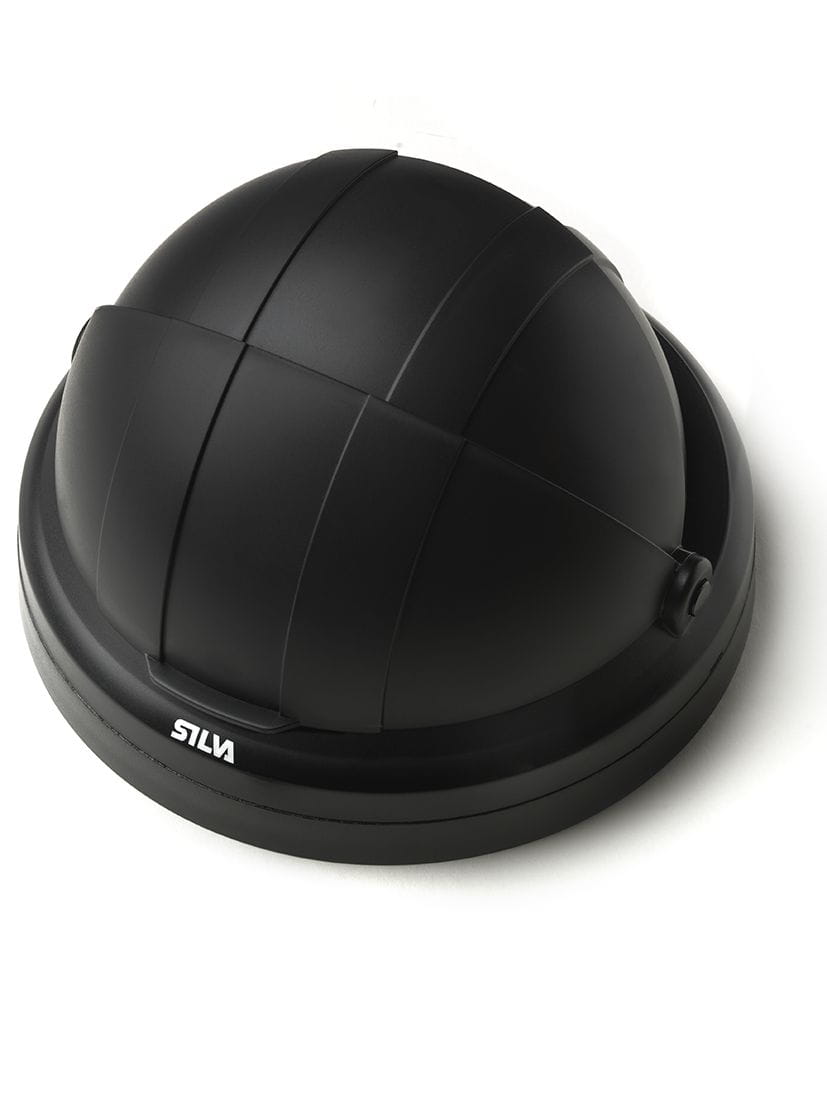

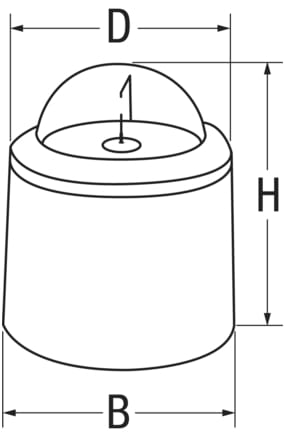

SILVA 125T steering column compass

125T is a pedestal compass with an apparent scale size of 125 mm, gimballed yellow lubber lines, in-built red lighting and visor. The standard 175 mm base plate fits most steering pedestals. Comes with a built-in compensator.

€329.00 *

Details

SILVA 125FTC Compass for control column/control panel

125FTC is a flush mounted compass with an apparent scale size of 125 mm and a gimballed cradle.To be mounted in the steering column or control console.Comes with red illumination (for 12 V) and magnetic compensator.

€323.00 *

Details

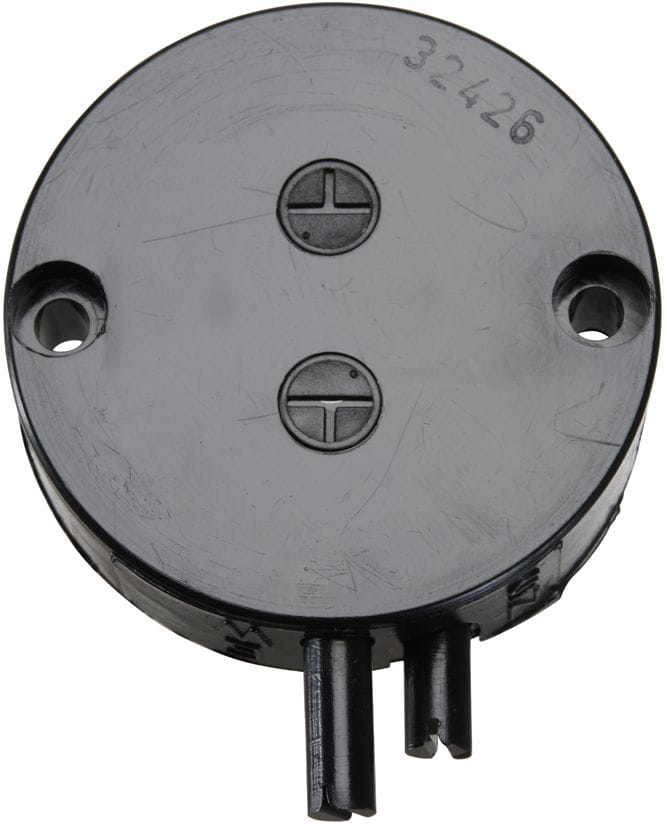

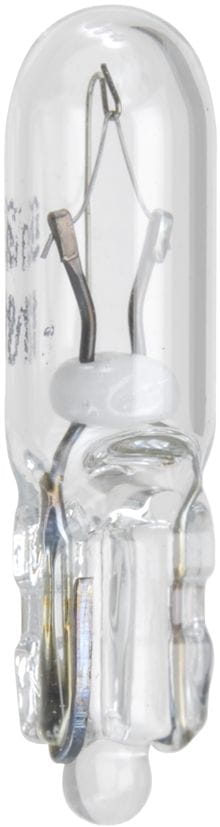

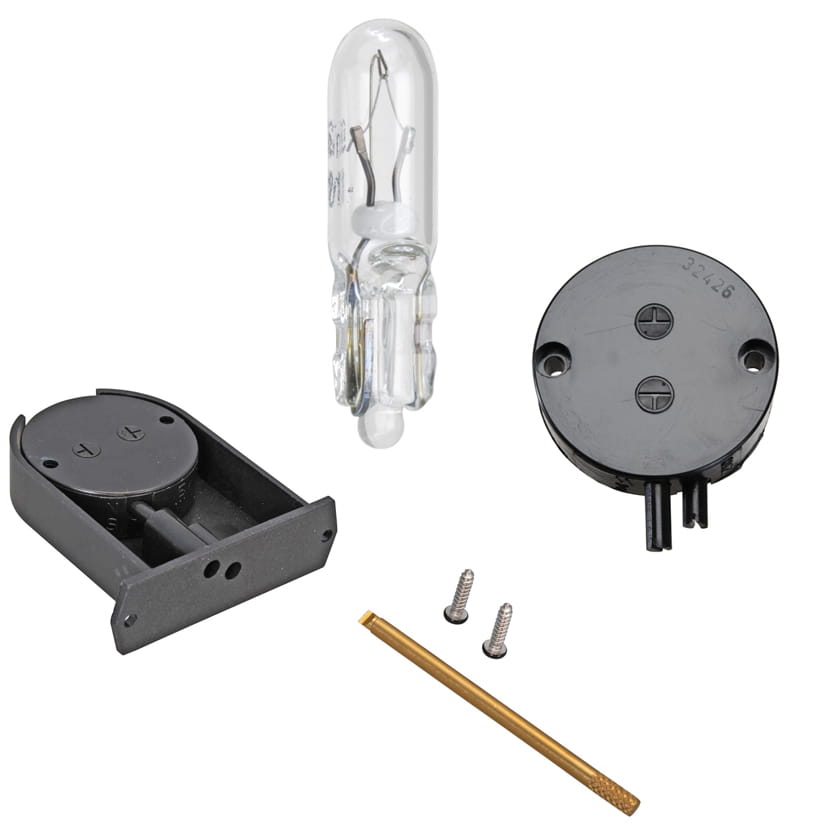

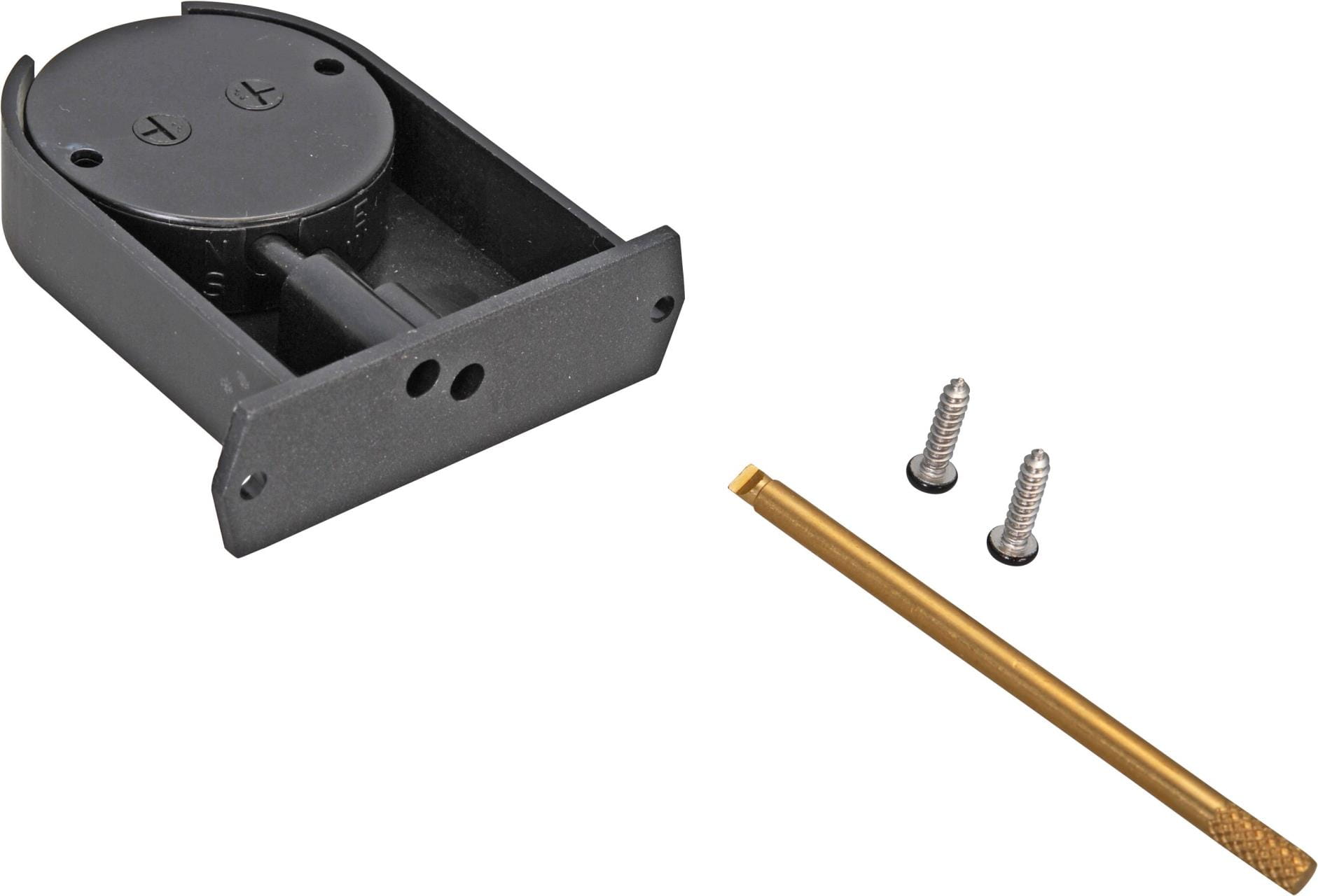

SILVA accessories for boat compasses

For the SILVA boat compass by GARMIN we offer the following accessories:

From €7.90 *

Details

Compass SILVA 102 B/H

Bulkhead compass with three yellow steering lines for sailing boats, motor sailors and larger motor yachts.The compass has unlimited forward and backward inclination. The heeling meter indicates up to a maximum of 45°.The apparent rose diameter is 100 mm.Scope of deliverySilva 102B/HRed light illumination (12 V)Protective cap

€166.90 *

Details

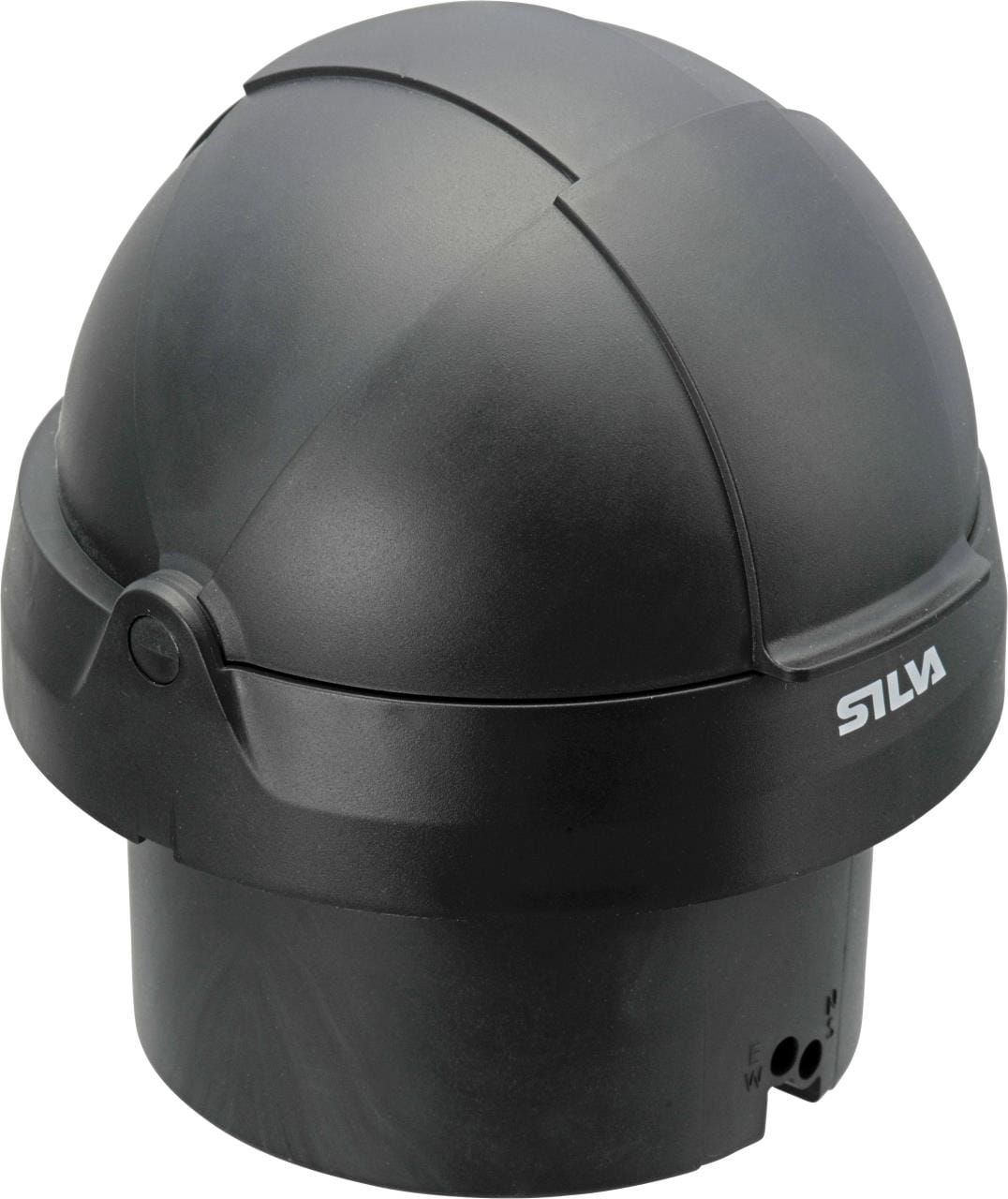

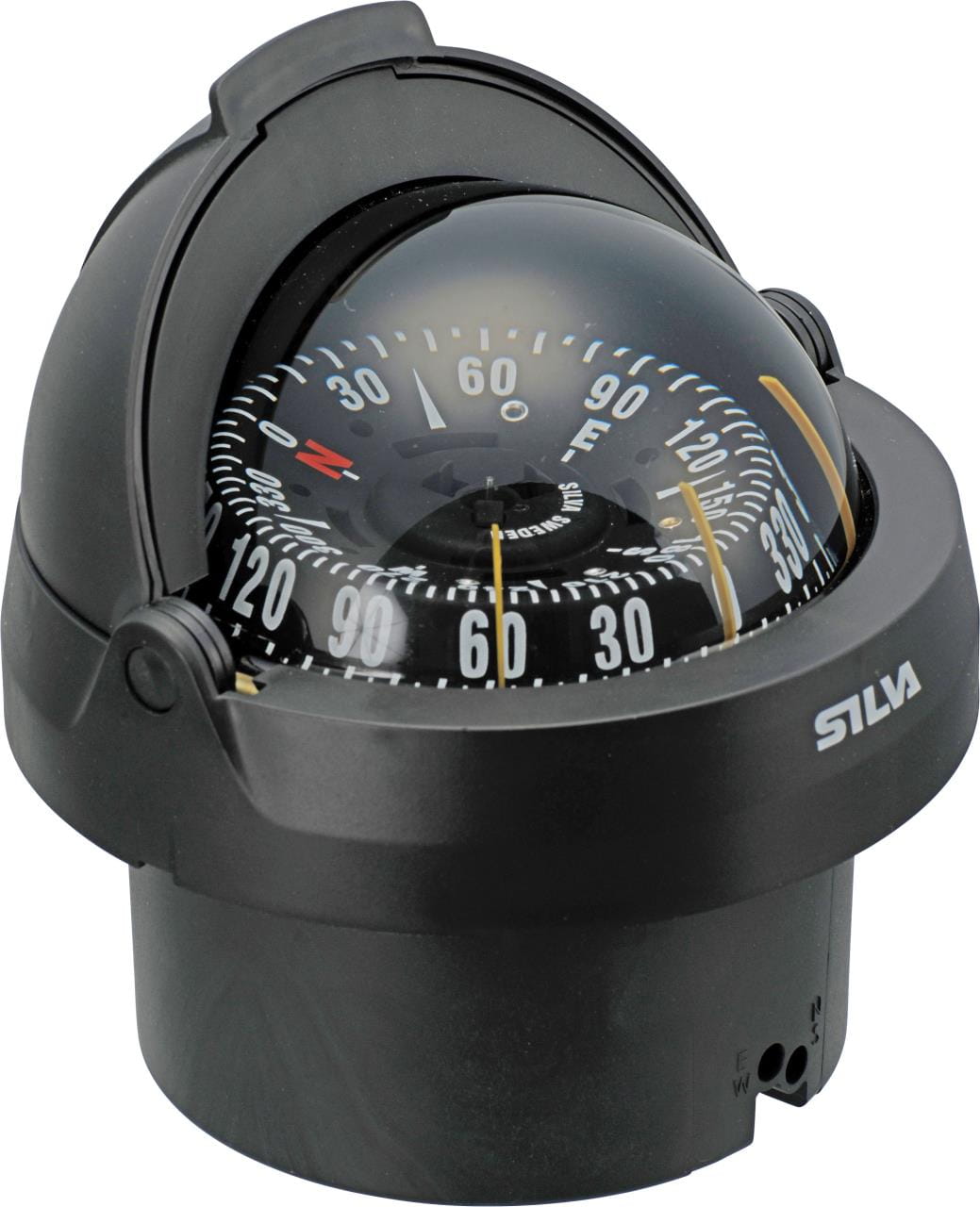

SILVA 100FC built-in steering compass

Built-in steering compass with three cardanic, yellow steering lines for motor or sailing yachts. The plastic compass can be installed in a steering column or in the (bridge) deck.The dampened double scale with its large digits allows accurate reading, even in heavy heeling seas. The apparent rose diameter is 100 mm.The integrated compensator makes it possible to compensate for magnetic interference.Scope of deliverySilva 100FCred light illumination (12 V)integrated protective cover (UV-resistant and shockproof)integrated compensator

€229.00 *

Details
